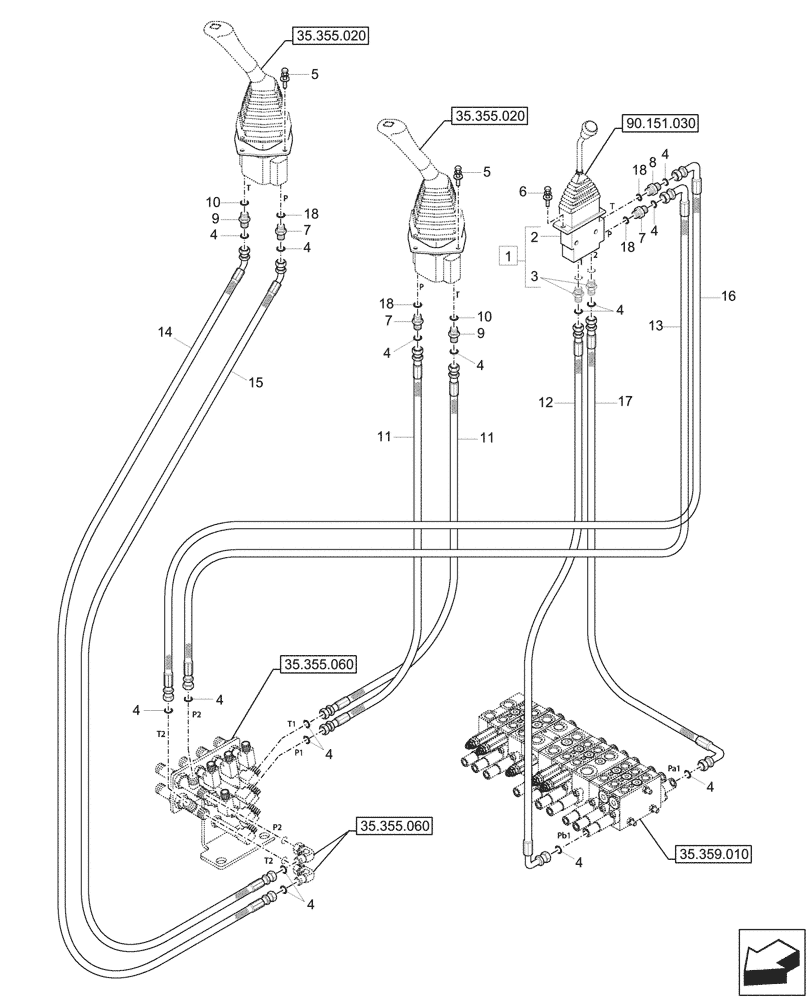

Запчасти Case CX17C (35.355.040) - PILOT CONTROLS, JOYSTICK, LINES (35) - HYDRAULIC SYSTEMS

1

31MH-30091

LEVER

Dozer, ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Valve, Incl in 1

1шт.

3

X500-110001

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

2шт.

4

S621-011001

O-RING,9/16 - 18 UNF

16шт.

5

S035-062056

BOLT

6шт.

6

S035-061556

BOLT

2шт.

7

31N6-25060

HYD CONNECTOR,Connector, PF 1/4 x 9/16 - 18 UNF

3шт.

8

X500-110001

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

1шт.

9

X500-110013

HYD CONNECTOR,PF 3/8 x 9/16 - 16 UNF

2шт.

10

S631-014004

O-RING

2шт.

11

X400-042016

HYDRAULIC HOSE

2шт.

Without Pattern Change, Var. 747069

1шт.

11

X400-042017

HYDRAULIC HOSE

2шт.

With Pattern Change, Var. 747068

1шт.

12

X420-042034

HYDRAULIC HOSE

1шт.

13

X420-042030

HYDRAULIC HOSE

1шт.

14

X420-042035

HYDRAULIC HOSE

1шт.

15

X410-042030

HYDRAULIC HOSE,9/16 - 18 UNF x 1500mm

1шт.

16

X420-042031

HYDRAULIC HOSE

1шт.

17

X420-042033

HYDRAULIC HOSE

1шт.

18

S631-011004

O-RING,PF 1/4

4шт.
