(35.353.030[02]) - TRAVEL MOTOR & REDUCTION GEAR, COMPONENT - BEGIN SN NZLN51058

Запчасти Case CX17C (35.353.030[02]) - TRAVEL MOTOR & REDUCTION GEAR, COMPONENT - BEGIN SN NZLN51058 (35) - HYDRAULIC SYSTEMS

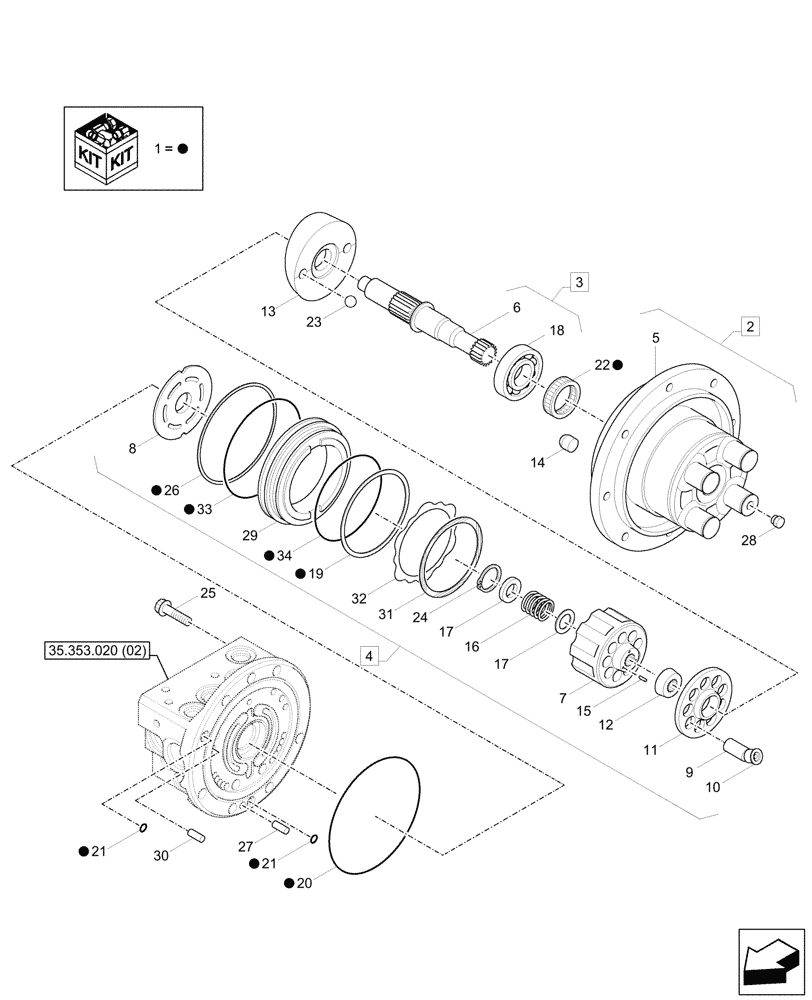

Схема запчастей Case CX17C - (35.353.030[02]) - TRAVEL MOTOR & REDUCTION GEAR, COMPONENT - BEGIN SN NZLN51058 (35) - HYDRAULIC SYSTEMS
35.353.020 (02)
15
30
1
1
21
1
17
29
3
27
26
11
18
19
8
10
14
20
28
1
17
16
23
4
1
34
32
33
13
1
31
1
7
25
22
1
21
12
5
9
24
1
6
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

XJDK-00239

ASSY, Incl 19 - 22, 26, 33, 34

SEAL KIT

1шт.

2

XJDK-00233

ASSY, Incl 5, 14, 22, 28

BODY

1шт.

3

XJDK-00033

SHAFT

ASSY, Incl 6, 18

1шт.

4

XJDK-00234

ASSY, Incl 7 - 12, 15 - 17, 24

BARREL

1шт.

5

NSS

NOT SOLD SEPARAT

Body, Incl in 2

1шт.

6

NSS

NOT SOLD SEPARAT

Shaft, incl in 3

1шт.

7

NSS

NOT SOLD SEPARAT

Barrel, Incl in 4

1шт.

8

NSS

NOT SOLD SEPARAT

Plate, Incl in 4

1шт.

9

NSS

NOT SOLD SEPARAT

Piston, Incl in 4

7шт.

10

NSS

NOT SOLD SEPARAT

Shoe, Incl in 4

7шт.

11

NSS

NOT SOLD SEPARAT

Holder, Incl in 4

1шт.

12

NSS

NOT SOLD SEPARAT

Holder, Incl in 4

1шт.

13

XJDK-00237

PLATE

1шт.

14

NSS

NOT SOLD SEPARAT

Piston, Incl in 2

1шт.

15

NSS

NOT SOLD SEPARAT

Pin, Incl in 4

3шт.

16

NSS

NOT SOLD SEPARAT

Spring, Incl in 4

1шт.

17

NSS

NOT SOLD SEPARAT

Retainer, Incl in 4

2шт.

18

NSS

NOT SOLD SEPARAT

Bearing, Incl in 3

1шт.

19

XJDK-00231

BACK-UP RING

1шт.

20

XJDK-00025

O-RING

1шт.

21

XJDK-00026

O-RING

2шт.

22

NSS

NOT SOLD SEPARAT

Seal, Incl in 2

1шт.

23

XJDK-00027

BALL

2шт.

24

NSS

NOT SOLD SEPARAT

Ring Snap, Incl in 4

1шт.

25

XJDK-00028

SCREW

7шт.

26

XJDK-00230

BACK-UP RING

1шт.

27

XJDK-00029

PIN

1шт.

28

NSS

NOT SOLD SEPARAT

Plug, Incl in 2

1шт.

29

XJDK-00224

BUSHING

1шт.

30

XJDK-00225

PIN

12шт.

31

XJDK-00226

BACK-UP RING

1шт.

32

XJDK-00227

PLATE

1шт.

33

XJDK-00228

O-RING

1шт.

34

XJDK-00229

O-RING

1шт.
