(35.353.030[01]) - TRAVEL MOTOR & REDUCTION GEAR, COMPONENTS - END SN NZLN51057

Запчасти Case CX17C (35.353.030[01]) - TRAVEL MOTOR & REDUCTION GEAR, COMPONENTS - END SN NZLN51057 (35) - HYDRAULIC SYSTEMS

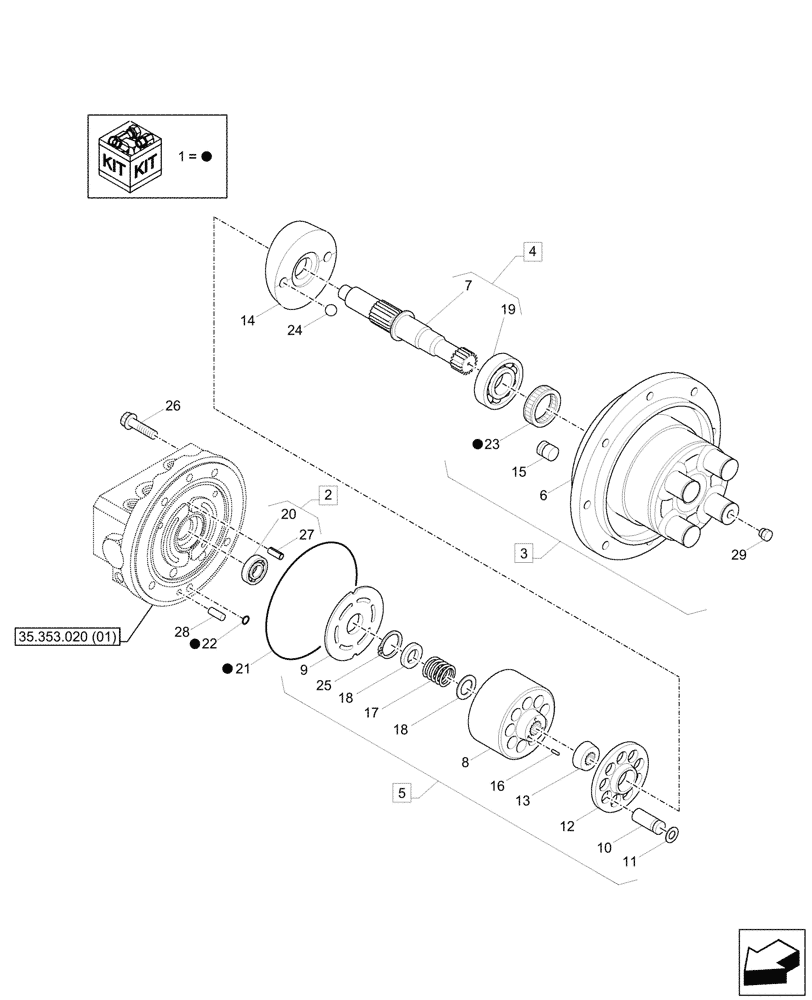

Схема запчастей Case CX17C - (35.353.030[01]) - TRAVEL MOTOR & REDUCTION GEAR, COMPONENTS - END SN NZLN51057 (35) - HYDRAULIC SYSTEMS
35.353.020 (01)
5
28
3
12
24
1
2
18
13
21
1
19
6
1
14
7
9
1
20
18
27
29
16
8
23
1
10
4
17
25
26
22
11
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

XJDK-00208

SEAL KIT

ASSY, Incl 21 - 23

1шт.

2

XJDK-00206

BODY

ASSY, Incl 20, 27

1шт.

3

XJDK-00207

BODY

ASSY, Incl 6, 15, 23, 29

1шт.

4

XJDK-00033

SHAFT

ASSY, Incl 7, 19

1шт.

5

XJDK-00034

BARREL

ASSY, Incl 8 - 13, 16 - 18, 25

1шт.

6

NSS

NOT SOLD SEPARAT

Body, Incl in 3

1шт.

7

NSS

NOT SOLD SEPARAT

Shaft, incl in 4

1шт.

8

NSS

NOT SOLD SEPARAT

Barrel, Incl in 5

1шт.

9

NSS

NOT SOLD SEPARAT

Plate, Incl in 5

1шт.

10

NSS

NOT SOLD SEPARAT

Piston, Incl in 5

7шт.

11

NSS

NOT SOLD SEPARAT

Shoe, Incl in 5

7шт.

12

NSS

NOT SOLD SEPARAT

Holder, Incl in 5

1шт.

13

NSS

NOT SOLD SEPARAT

Holder, Incl in 5

1шт.

14

XJDK-00205

PLATE

1шт.

15

NSS

NOT SOLD SEPARAT

Piston, Incl in 3

1шт.

16

NSS

NOT SOLD SEPARAT

Pin, Incl in 5

3шт.

17

NSS

NOT SOLD SEPARAT

Spring, Incl in 5

1шт.

18

NSS

NOT SOLD SEPARAT

Retainer, Incl in 5

2шт.

19

NSS

NOT SOLD SEPARAT

Bearing, Incl in 4

1шт.

20

NSS

NOT SOLD SEPARAT

Bearing, Incl in 2

1шт.

21

XJDK-00025

O-RING

1шт.

22

XJDK-00026

O-RING

1шт.

23

NSS

NOT SOLD SEPARAT

Seal, Incl in 3

1шт.

24

XJDK-00027

BALL

2шт.

25

NSS

NOT SOLD SEPARAT

Ring Snap, Incl in 5

1шт.

26

XJDK-00028

SCREW

7шт.

27

NSS

NOT SOLD SEPARAT

Pin, Incl in 2

1шт.

28

XJDK-00029

PIN

1шт.

29

NSS

NOT SOLD SEPARAT

Plug, Incl in 3

1шт.
