Запчасти Case CX17C (35.353.020[02]) - TRAVEL MOTOR & REDUCTION GEAR, COMPONENTS - BEGIN SN NZLN51058 (35) - HYDRAULIC SYSTEMS

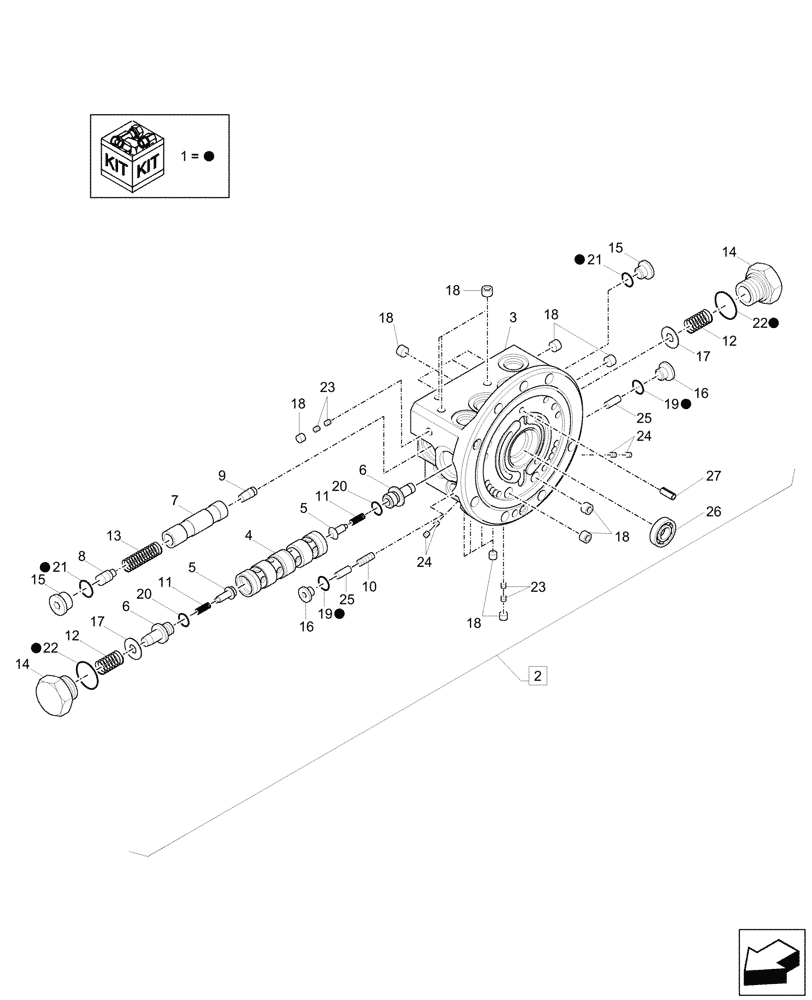

Схема запчастей Case CX17C - (35.353.020[02]) - TRAVEL MOTOR & REDUCTION GEAR, COMPONENTS - BEGIN SN NZLN51058 (35) - HYDRAULIC SYSTEMS
16
16
25
12
27
2
26
22
1
21
20
24
8
13
18
7
1
18
1
15
15
1
18
6
11
12
23
18
23
1
3
17
24
11
14
22
19
20
17
10
14
1
4
5
18
18
1
5
19
25
21
6
1
9

Артикул

Название

Примечание

Количество

1

XJDK-00239

ASSY, Incl 19, 21, 22

1шт.

See Also Figure 35.353.030 (02)

1шт.

2

XJDK-00238

ASSY, Incl 3 - 27

1шт.

See Also Figure 35.353.030 (02)

1шт.

3

NSS

NOT SOLD SEPARAT

Body, Incl in 2

1шт.

4

NSS

NOT SOLD SEPARAT

Spool, Incl in 2

1шт.

5

NSS

NOT SOLD SEPARAT

Valve, Incl in 2

2шт.

6

NSS

NOT SOLD SEPARAT

Guide, incl in 2

2шт.

7

NSS

NOT SOLD SEPARAT

Spool, Incl in 2

1шт.

8

NSS

NOT SOLD SEPARAT

Spool B, Incl in 2

1шт.

9

NSS

NOT SOLD SEPARAT

Spool C, Incl in 2

1шт.

10

NSS

NOT SOLD SEPARAT

Spool Incl in 2

1шт.

11

NSS

NOT SOLD SEPARAT

Spring V1, Incl in 2

2шт.

12

NSS

NOT SOLD SEPARAT

Spring V2, Incl in 2

2шт.

13

NSS

NOT SOLD SEPARAT

Spring V3, Incl in 2

1шт.

14

NSS

NOT SOLD SEPARAT

Plug, Incl in 2

2шт.

15

NSS

NOT SOLD SEPARAT

Plug, Incl in 2

2шт.

16

NSS

NOT SOLD SEPARAT

Plug, Incl in 2

2шт.

17

NSS

NOT SOLD SEPARAT

Plug, Incl in 2

2шт.

18

NSS

NOT SOLD SEPARAT

Plug, Incl in 2

18шт.

19

XJDK-00048

O-RING

2шт.

20

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 2

2шт.

21

XJDK-00020

O-RING

2шт.

22

XJDK-00030

O-RING

2шт.

23

NSS

NOT SOLD SEPARAT

Choke, Incl in 2

5шт.

24

NSS

NOT SOLD SEPARAT

Choke, Incl in 2

4шт.

25

NSS

NOT SOLD SEPARAT

Pin, Incl in 2

2шт.

26

NSS

NOT SOLD SEPARAT

Bearing, Incl in 2

1шт.

27

NSS

NOT SOLD SEPARAT

Pin Spring, Incl in 2

1шт.

Выбрано товаров: 29
