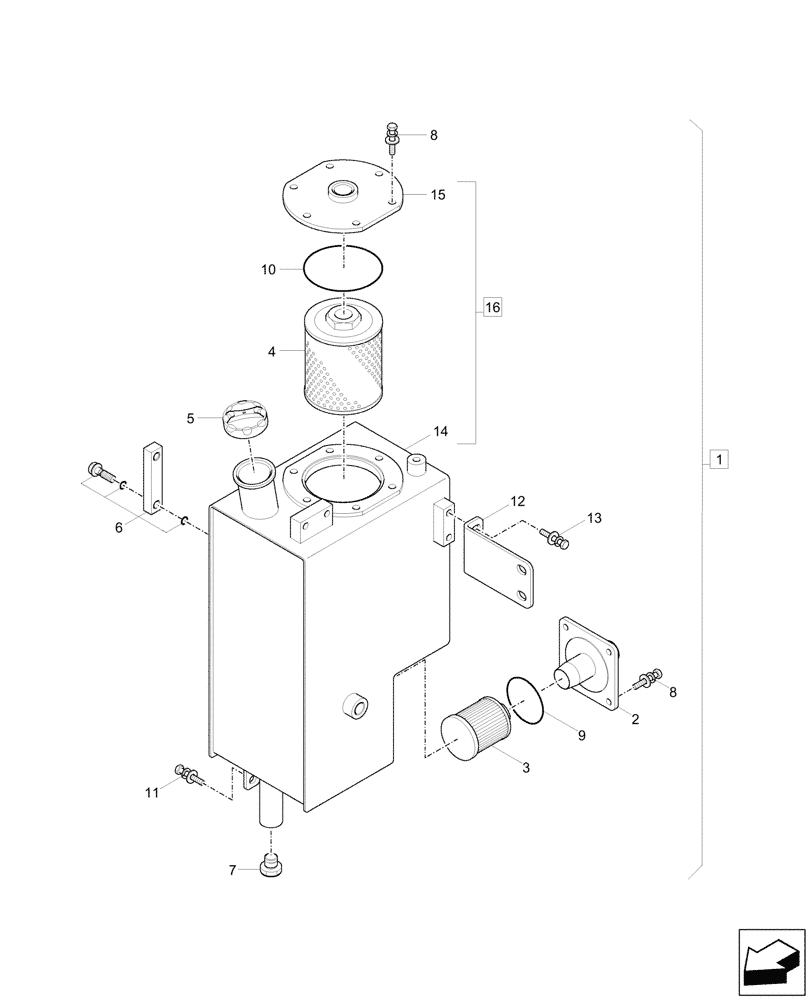

Запчасти Case CX17C (35.300.010) - HYDRAULIC OIL RESERVOIR, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

NSS

NOT SOLD SEPARAT

Hydraulic Oil Tank, ASSY, Incl 2 - 16

1шт.

2

32MJ-01201

SUCTION PIPE

Suction

1шт.

3

F31650010

FILTER STRAINER

120 Mesh

1шт.

4

31MJ-01300

ELEMENT

Return

1шт.

5

31MH-01240

CAP

1шт.

6

31MJ-01600

GAUGE

1шт.

7

P220-110103

PLUG,G 3/8

1шт.

8

S035-082026

BOLT,M8 x 1.25 x 20mm

4шт.

9

S632-090001

O-RING

1шт.

10

S632-110001

O-RING

1шт.

11

S037-102526

BOLT,M10 x 1.5 x 25mm

2шт.

12

32MJ-01211CG

BRACKET

1шт.

13

S037-102026

BOLT,M10 x 1.5 x 20mm

10шт.

14

NSS

NOT SOLD SEPARAT

Tank, Incl in 16

1шт.

15

32MJ-01092

COVER

Return

1шт.

16

32MJ-01014CG

TANK

Gray, ASSY, Incl 14, 15

1шт.
