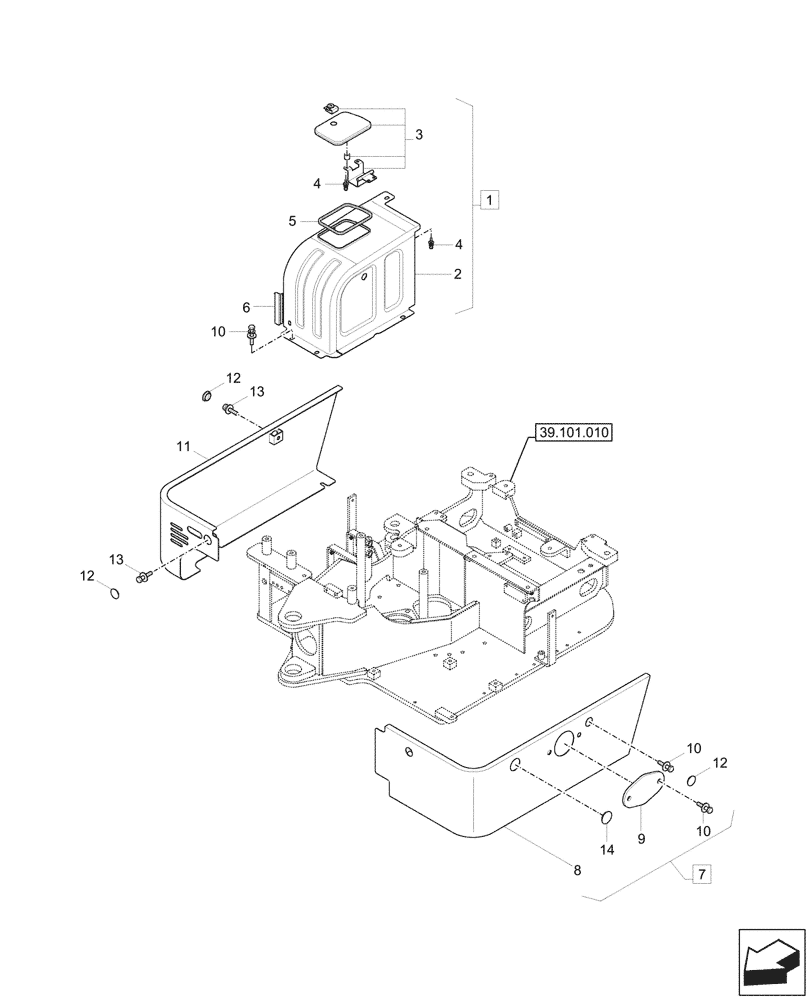

Запчасти Case CX17C (90.105.020) - UPPER FRAME, GUARD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

72MJ-67101CG

COVER ASSY

Tank, Gray, ASSY, Incl 2 - 6

1шт.

2

72MJ-67512CG

COVER

1шт.

3

72MJ-67522CG

COVER

Service

1шт.

4

S035-081526

BOLT,M8 x 1.25 x 15mm

2шт.

5

S791-020053

GROMMET

530mm x 2mm Thk

1шт.

6

S791-020066

GROMMET

620mm x 2mm Thk

1шт.

7

72MJ-65101CG

FRAME

Gray, LH, ASSY, Incl 8

1шт.

Without Pattern Change, Var. 747069

1шт.

7

72MJ-65003CG

FRAME

Gray, LH, ASSY, Incl 8, 9, 10 (Qty 1)

1шт.

With Pattern Change, Var. 747068

1шт.

8

NSS

NOT SOLD SEPARAT

Cover Without Hole, Incl in 7

1шт.

Without Pattern Change, Var. 747069

1шт.

8

NSS

NOT SOLD SEPARAT

Cover With Hole, Incl in 7

1шт.

With Pattern Change, Var. 747068

1шт.

9

72MJ-65040CG

COVER

1шт.

With Pattern Change, Var. 747068

1шт.

10

S037-102026

BOLT,M10 x 1.5 x 20mm

4шт.

11

72MJ-66002CG

FRAME

RH

1шт.

12

FHC0904100

STAY

Rubber

4шт.

13

S035-082036

BOLT

9шт.

14

71MJ-55260

STAY

Rubber

1шт.
