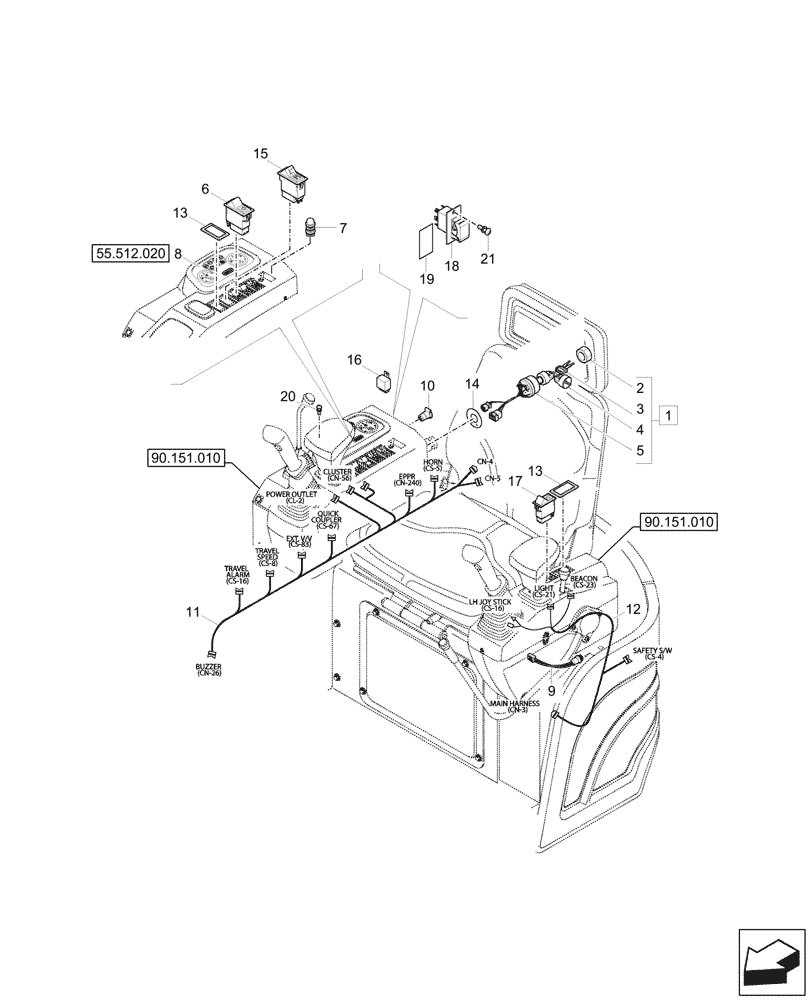

Запчасти Case CX17C (55.512.010) - CONSOLE, ELECTRONIC CONTROLS (55) - ELECTRICAL SYSTEMS

1

2LMH-20801

SWITCH

ASSY, Incl 2 - 5

1шт.

2

21MH-10910

NUT

1шт.

3

21N4-10400K

IGNITION KEY

1шт.

4

21MH-10900

CAP

Rubber

1шт.

5

NSS

NOT SOLD SEPARAT

Switch, Incl in 1

1шт.

6

21M6-53800

SWITCH

Travel Alarm

1шт.

Travel Alarm, Var. 747453

1шт.

7

21MJ-2100

SWITCH

Toggle

1шт.

Quick Coupler, Var. 405007, 405009

1шт.

8

2LMK-12003

CLUSTER

1шт.

9

21MH-00670

SWITCH

Cut Off

1шт.

10

21M8-11430

SOCKET

1шт.

11

21MJ-00353

WIRE HARNESS

RH Console

1шт.

Auxiliary Hydraulic Circuit, Joystick, Var. 405002, 405005

1шт.

11

21MJ-00362

WIRE HARNESS

RH Console

1шт.

Auxiliary Hydraulic Circuit, Pedal, Var. 405001, 405004

1шт.

12

21MJ-00050

WIRE HARNESS

LH Stand

1шт.

13

21E6-10460

COVER

4шт.

14

94MH-10250

DECAL

Start Key

1шт.

15

21MJ-00210

SWITCH

2 Position

1шт.

16

21MJ-12300

BUZZER

1шт.

17

21M8-01120

SWITCH

Light

1шт.

18

21QA-23100CG

SWITCH

Emergency Stop

1шт.

19

21MJ-02220

DECAL

Emergency Switch

1шт.

20

S131-061546

CAPTIVE WASHER SCREW,M6 x 1 x 15mm

4шт.

21

S131-051546

CAPTIVE WASHER SCREW

2шт.
