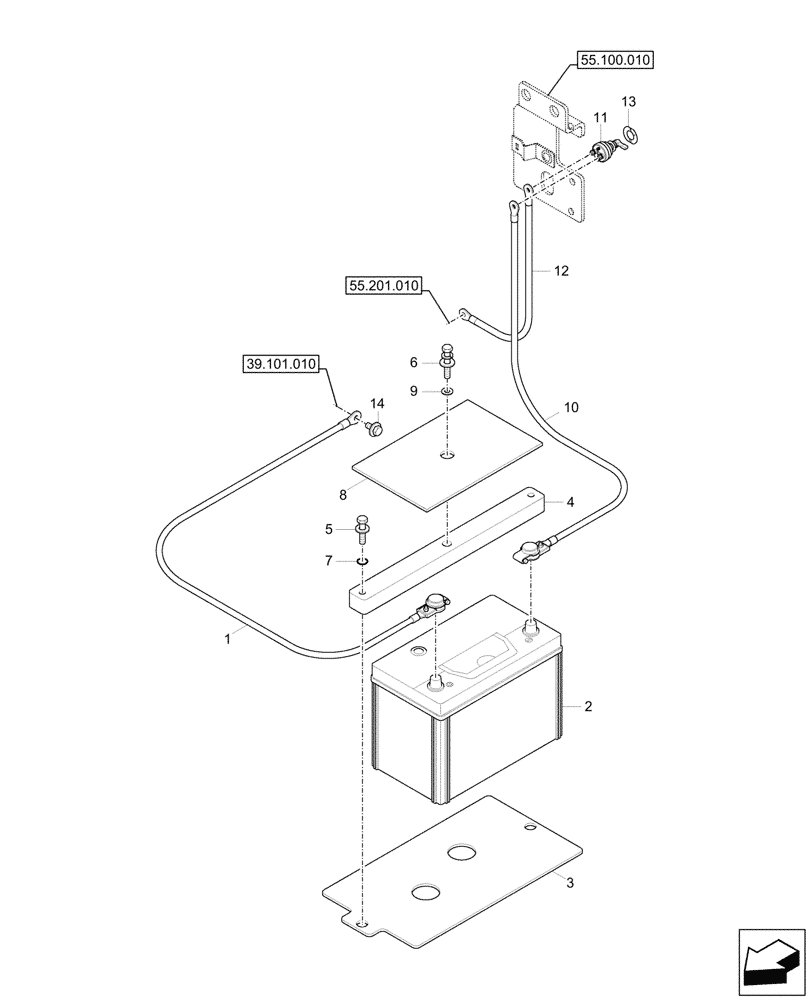

Запчасти Case CX17C (55.302.010) - BATTERY & CABLE (55) - ELECTRICAL SYSTEMS

1

21MJ-10240

ELECTRIC CABLE

Battery - Hearth

1шт.

2

21MJ-00390

12V, 45Ah

BATTERY

1шт.

3

21MJ-05232CG

HOLDER

1шт.

4

21MJ-92300CG

BRACKET

1шт.

5

S017-102506

BOLT

2шт.

6

S037-102026

BOLT,M10 x 1.5 x 20mm

1шт.

7

S411-100006

WASHER

2шт.

8

21MJ-70801

COVER

1шт.

9

21EN-30560

WASHER

1шт.

10

21MJ-10380

ELECTRIC CABLE

Battery - Master Switch

1шт.

11

21LM-10502

ROTARY SWITCH

Master

1шт.

12

21MJ-10391

ELECTRIC CABLE

Master Switch - Starter Motor

1шт.

13

21N5-40370

DECAL

Master Switch

1шт.

14

S037-102022

BOLT,M10 x 1.5 x 20mm

2шт.
