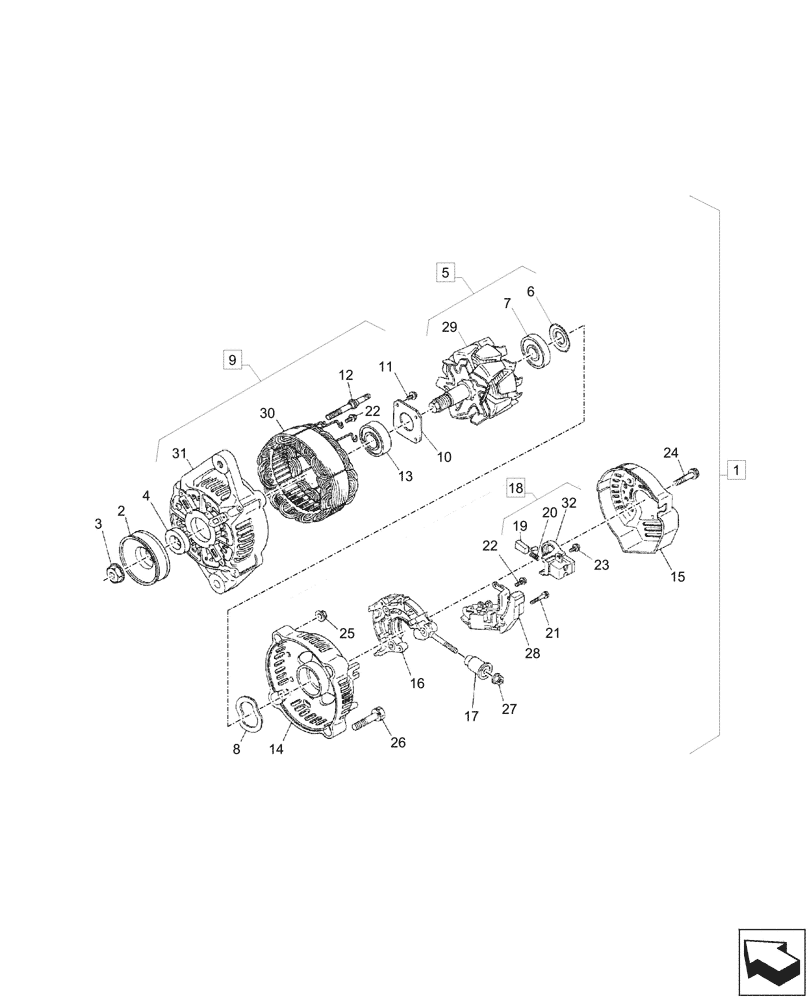

Запчасти Case CX17C (55.301.020) - ALTERNATOR, COMPONENTS (55) - ELECTRICAL SYSTEMS

1

XJBR-02319

ALTERNATOR

ASSY, Incl 2 - 32

1шт.

2

XJBR-02029

PULLEY

1шт.

3

XJBR-01096

NUT

1шт.

4

XJBR-01097

COLLAR

1шт.

5

XJBR-01098

ROTOR

ASSY, Incl 6, 7, 29

1шт.

6

XJBR-01099

COVER

1шт.

7

XJBR-01100

BALL BEARING

1шт.

8

XJBR-01101

WASHER

1шт.

9

XJBR-02320

KIT

ASSY, Incl 10 - 13, 30, 31

1шт.

10

XJBR-01103

PLATE

1шт.

11

XJBR-01104

SCREW

4шт.

12

XJBR-01105

BOLT

2шт.

13

XJBR-01106

BALL BEARING

1шт.

14

XJBR-02030

FRAME

1шт.

15

XJBR-01108

COVER

1шт.

16

XJBR-01109

DRIVE

1шт.

17

XJBR-01110

BUSHING

1шт.

18

XJBR-01111

HOLDER

ASSY, Incl 19, 20, 32

1шт.

19

XJBR-01112

COMMUTATOR BRUSH

2шт.

20

XJBR-01113

SPRING

2шт.

21

XJBR-01116

SCREW

1шт.

22

XJBR-01115

SCREW

6шт.

23

XJBR-01114

SCREW

2шт.

24

XJBR-01117

BOLT

3шт.

25

XJBR-01118

NUT

2шт.

26

XJBR-01119

BOLT

2шт.

27

XJBR-01120

NUT

1шт.

28

XJBR-01121

REGULATOR

1шт.

29

NSS

NOT SOLD SEPARAT

Rotor, Incl in 5

1шт.

30

NSS

NOT SOLD SEPARAT

Stator, Incl in 9

1шт.

31

NSS

NOT SOLD SEPARAT

Housing, Incl in 9

1шт.

32

NSS

NOT SOLD SEPARAT

Holder, Incl in 18

1шт.
