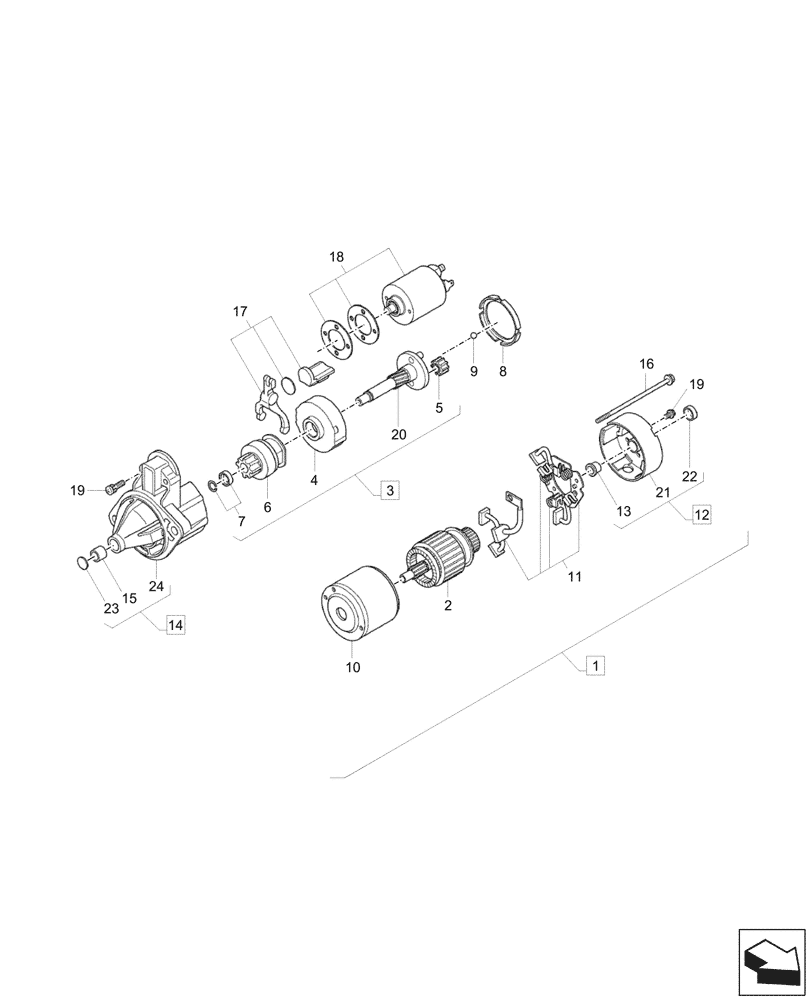

Запчасти Case CX17C (55.201.020) - STARTER MOTOR, COMPONENTS (55) - ELECTRICAL SYSTEMS

1

XJBR-02032

STARTER MOTOR

ASSY, Incl 2 - 24

1шт.

2

XJBR-02033

ARMATURE

1шт.

3

XJBR-02034

SHAFT

ASSY, Incl 4 - 7, 20

1шт.

4

XJBR-02035

GEAR

Internal

1шт.

5

XJBR-02036

GEAR

Planetary

3шт.

6

XJBR-02037

CLUTCH

1шт.

7

XJBR-02038

PLUG

1шт.

8

XJBR-02039

GASKET

1шт.

9

XJBR-01450

BALL

1шт.

10

XJBR-02040

HOUSING

1шт.

11

XJBR-02041

HOLDER

Brush

1шт.

12

XJBR-02042

BRACKET

Rear, ASSY, Incl 13, 21, 22

1шт.

13

XJBR-02043

BUSHING

1шт.

14

XJBR-02044

BRACKET

Front, ASSY, Incl 15, 23, 24

1шт.

15

XJBR-02045

BUSHING

1шт.

16

XJBR-02046

BOLT

2шт.

17

XJBR-02047

LEVER

1шт.

18

XJBR-02048

SWITCH

1шт.

19

XJBR-02049

SCREW

1шт.

20

NSS

NOT SOLD SEPARAT

Shaft, Incl in 3

1шт.

21

NSS

NOT SOLD SEPARAT

Bracket, Incl in 12

1шт.

22

NSS

NOT SOLD SEPARAT

Plug, Incl in 12

1шт.

23

NSS

NOT SOLD SEPARAT

Plug, Incl in 14

1шт.

24

NSS

NOT SOLD SEPARAT

Housing, Incl in 14

1шт.
