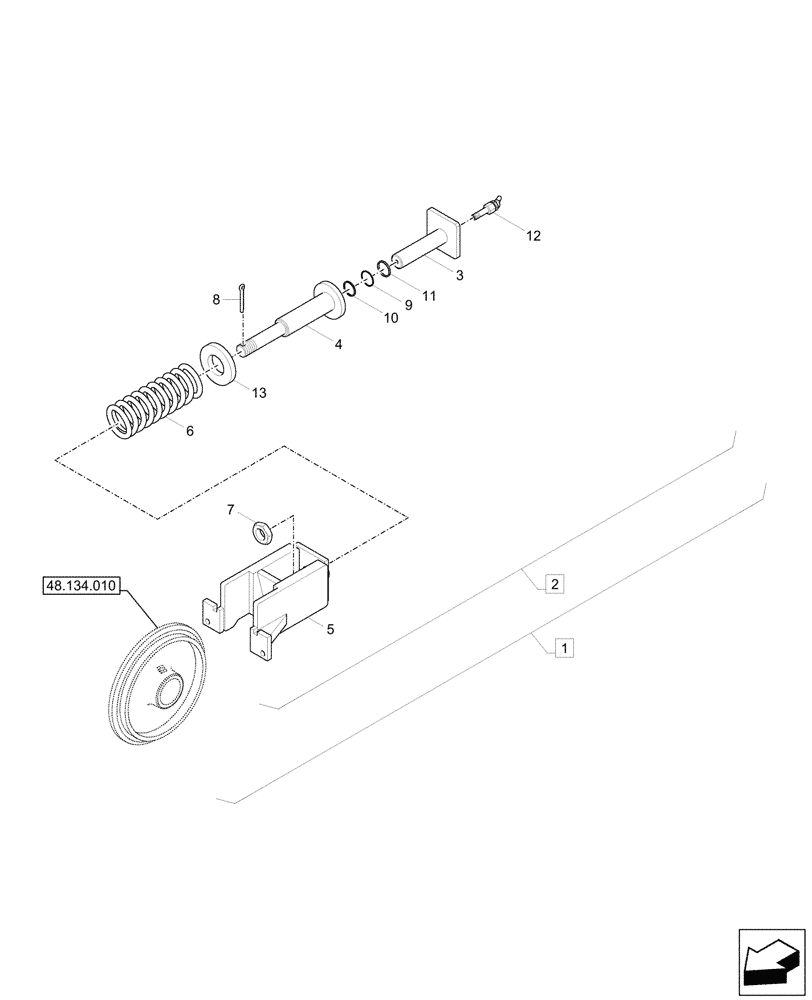

Запчасти Case CX17C (48.134.020) - VAR - 9552700 - TENSION SPRING, COMPONENTS (48) - TRACKS & TRACK SUSPENSION

1

8LMJ-15022CG

ADJUSTER

Gray, RH, ASSY, Incl 2

1шт.

1

8LMJ-15032CG

ADJUSTER

Gray, LH, ASSY, Incl 2

1шт.

2

8LMJ-14016CG

SPRING

ASSY, Incl 3 - 13

2шт.

3

81MJ-14213

PISTON

1шт.

4

81MJ-14101

HYDRAULIC CYLINDER

1шт.

5

81MJ-14134

BRACKET

1шт.

6

81MJ-14120

SPRING

1шт.

7

81MJ-14140

NUT

1шт.

8

81MJ-14280

PIN

1шт.

9

81MJ-14180

O-RING

1шт.

10

81MJ-14190

BACK-UP RING

1шт.

11

81MJ-14200

SEAL

1шт.

12

81MJ-14240

NIPPLE

1шт.

13

81MJ-14301

SPACER

1шт.
