(48.130.020) - FRAME, LOWER, COVERS

Запчасти Case CX17C (48.130.020) - FRAME, LOWER, COVERS (48) - TRACKS & TRACK SUSPENSION

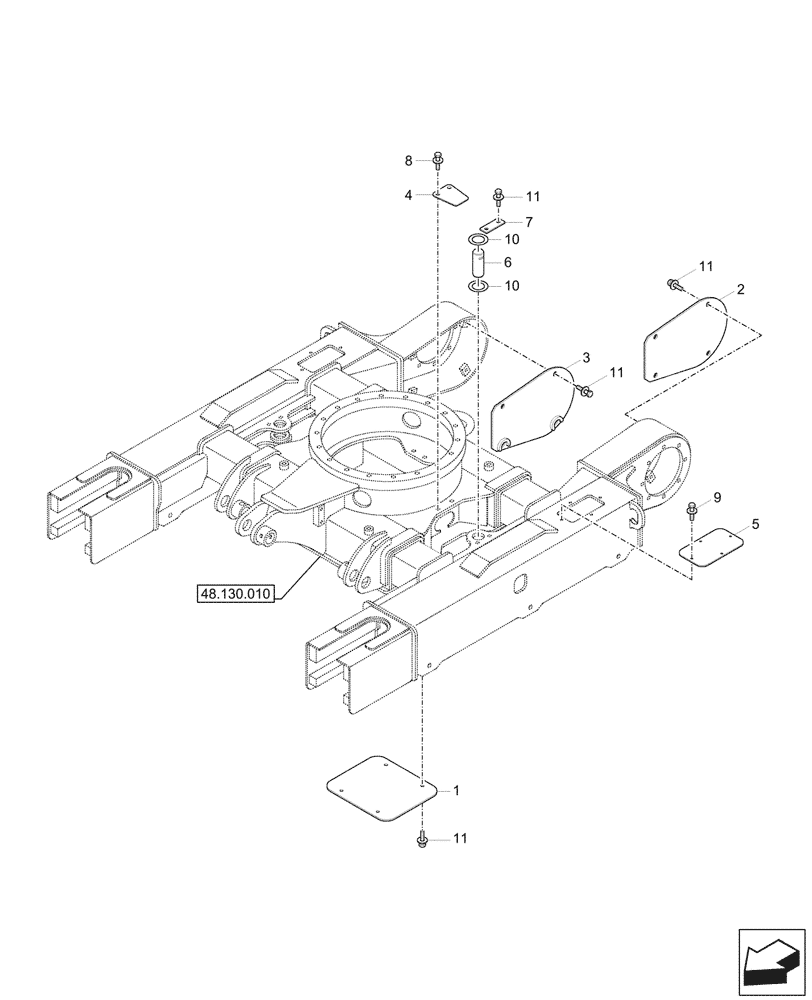

Схема запчастей Case CX17C - (48.130.020) - FRAME, LOWER, COVERS (48) - TRACKS & TRACK SUSPENSION
48.130.010
5
9
10
8
11
11
7
6
3
11
2
1
10
4
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

51MJ-10010CG

COVER

Lower, Gray

1шт.

2

51MJ-10020CG

COVER

Travel Motor, LH, Gray

1шт.

3

51MJ-10030CG

COVER

Travel Motor, RH, Gray

1шт.

4

52MJ-10041CG

COVER

Extensible Cylinder, Gray

1шт.

5

52MJ-10071CG

COVER

Hose, Gray

2шт.

6

52MJ-51770

PIN

2шт.

7

52MJ-51800

PLATE

2шт.

8

S037-102556

BOLT

2шт.

9

S035-062056

BOLT

8шт.

10

S391-030055

SHIM

1.0mm Thk

4шт.

11

S037-102056

BOLT,M10 x 1.5 x 20mm

16шт.

Выбрано товаров: 11
