(35.741.020) - DOZER BLADE, HYDRAULIC CYLINDER, LINES

Запчасти Case CX17C (35.741.020) - DOZER BLADE, HYDRAULIC CYLINDER, LINES (35) - HYDRAULIC SYSTEMS

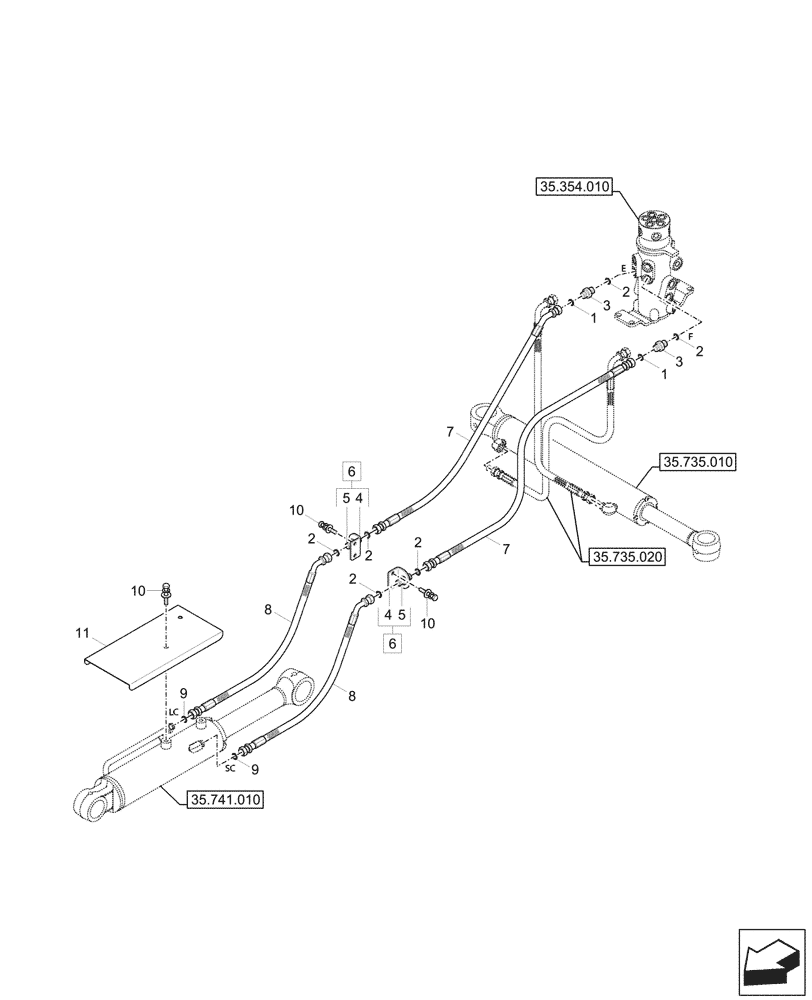

Схема запчастей Case CX17C - (35.741.020) - DOZER BLADE, HYDRAULIC CYLINDER, LINES (35) - HYDRAULIC SYSTEMS
35.735.020
9
4
2
8
2
6
5
6
8
4
7
10
3
1
11
2
10
10
2
2
3
9
5
35.741.010
1
2
7
35.354.010
35.735.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

S631-011004

O-RING,PF 1/4

2шт.

2

S621-011001

O-RING,9/16 - 18 UNF

6шт.

3

X500-110001

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

2шт.

4

NSS

NOT SOLD SEPARAT

Bracket, Incl in 6

1шт.

5

X540-120001

HYD CONNECTOR

1шт.

6

32MJ-41110

TERMINAL

ASSY, Incl 4, 5

2шт.

7

P923-045004

HYDRAULIC HOSE

2шт.

8

P925-045010

HYDRAULIC HOSE

2шт.

9

S621-011001

O-RING,9/16 - 18 UNF

2шт.

10

S035-082026

BOLT,M8 x 1.25 x 20mm

6шт.

11

32MJ-40121CG

COVER

1шт.

Выбрано товаров: 11
