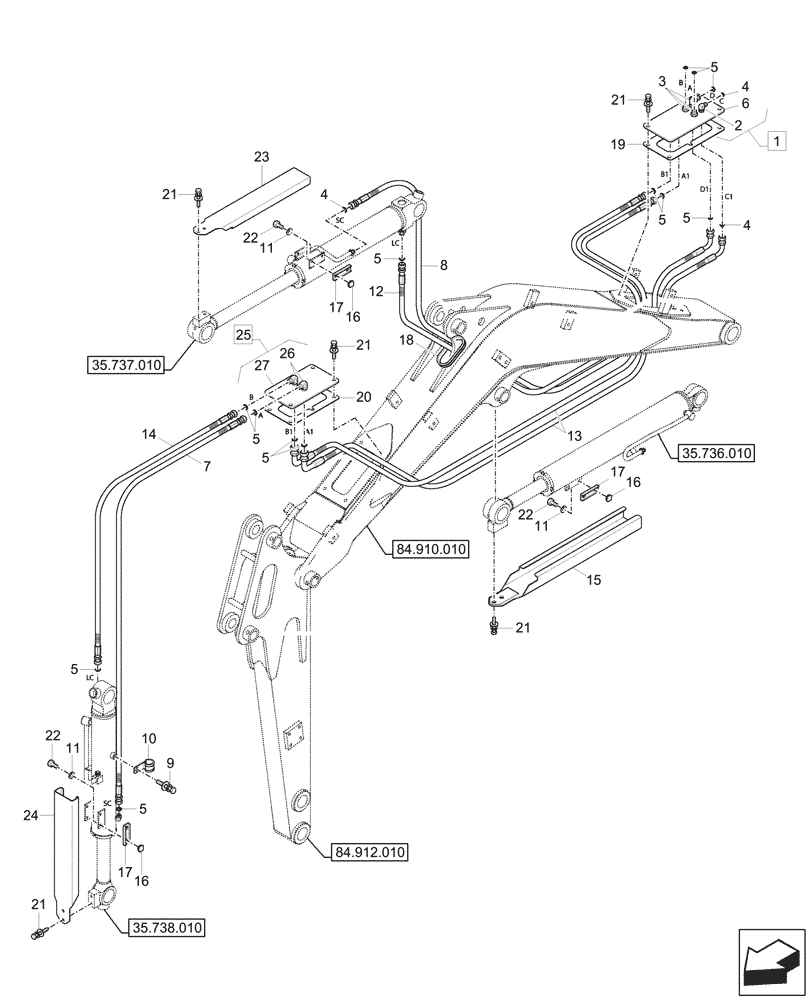

Запчасти Case CX17C (35.738.020) - DIPPER & BUCKET SECTION, LINES (35) - HYDRAULIC SYSTEMS

1

32MJ-50261

TERMINAL

ASSY, Incl 2, 3, 4 (Qty 2), 5 (Qty 6)

1шт.

2

31MJ-50270

ELBOW

1шт.

3

31MJ-50280

ELBOW

3шт.

4

S621-011001

O-RING,9/16 - 18 UNF

5шт.

5

S621-012001

O-RING

20шт.

6

NSS

NOT SOLD SEPARAT

Terminal, Incl in 1

1шт.

7

P914-065021

HYDRAULIC HOSE

1шт.

Short Arm (0.96M), Var. 405001, 405002

1шт.

7

32MJ-50430

HYDRAULIC HOSE

1шт.

Long Arm (1.12M), Var. 405004, 405005

1шт.

8

P930-045024

HYDRAULIC HOSE

1шт.

9

S037-101526

BOLT,M10 x 1.5 x 15mm

1шт.

10

31L7-10340

CLAMP

1шт.

11

S411-080006

WASHER

12шт.

12

P930-065023

HYDRAULIC HOSE

1шт.

13

P930-065028

HYDRAULIC HOSE,11/16 - 16 UNF x 1400mm

2шт.

14

32MJ-50410

HYDRAULIC HOSE

1шт.

Short Arm (0.96M), Var. 405001, 405002

1шт.

14

32MJ-50420

HYDRAULIC HOSE

1шт.

Long Arm (1.12M), Var. 405004, 405005

1шт.

15

32MJ-50321CA

COVER

Power Tan

1шт.

16

31M6-65130

COLLAR

12шт.

17

31M6-65140

RUBBER INSULATOR

6шт.

18

31MJ-50360

GROMMET

1шт.

19

31MJ-50371

GASKET

1шт.

20

31MJ-50381

GASKET

1шт.

21

S035-082026

BOLT,M8 x 1.25 x 20mm

14шт.

22

S015-080156

BOLT

12шт.

23

32MJ-50331CA

COVER

Power Tan

1шт.

24

32MJ-50341CA

COVER

Power Tan

1шт.

Short Arm (0.96M), Var. 405001, 405002

1шт.

Long Arm (1.12M), Var. 405004, 405005

1шт.

25

32MJ-50241

TERMINAL

ASSY, Incl 5 (Qty 4), 26

1шт.

26

32MJ-50270

ELBOW

2шт.

27

NSS

NOT SOLD SEPARAT

Terminal, Incl in 25

1шт.
