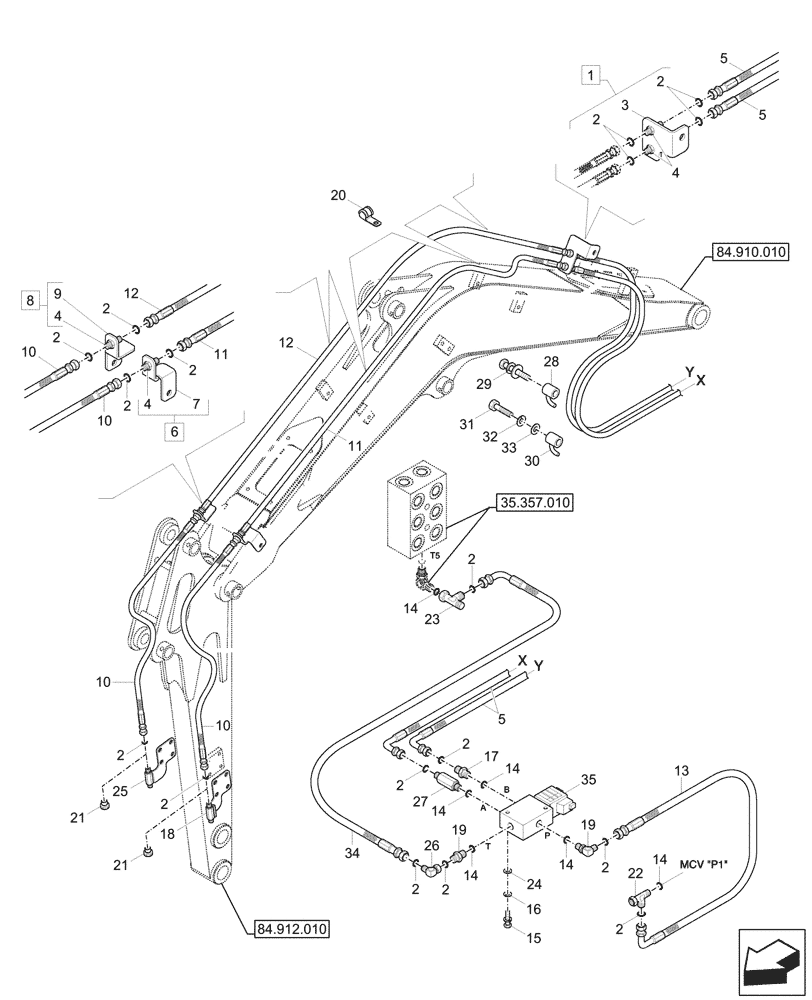

Запчасти Case CX17C (35.734.010) - QUICK COUPLER, LINES (35) - HYDRAULIC SYSTEMS

1

31MJ-90132

TERMINAL

ASSY, Incl 2 (Qty 4), 3, 4 (Qty 2)

1шт.

2

S621-011001

O-RING,9/16 - 18 UNF

16шт.

3

NSS

NOT SOLD SEPARAT

Terminal, Incl in 1

1шт.

4

X540-120001

HYD CONNECTOR

4шт.

5

P934-045040

HYDRAULIC HOSE

2шт.

6

32MJ-90140

TERMINAL

LH, ASSY, Incl 4 (Qty 1), 7

1шт.

7

NSS

NOT SOLD SEPARAT

Terminal, Incl in 6

1шт.

8

32MJ-90150

TERMINAL

RH, ASSY, Incl 4 (Qty 1), 9

1шт.

9

NSS

NOT SOLD SEPARAT

Terminal, Incl in 8

1шт.

10

P913-045017

HYDRAULIC HOSE

2шт.

Short Arm (0.96M) With Quick Coupler, Var. 405007

1шт.

10

P913-045020

HYDRAULIC HOSE

2шт.

Long Arm (1.12M) With Quick Coupler, Var. 405009

1шт.

11

P910-045031

HYDRAULIC HOSE

1шт.

12

P910-045034

HYDRAULIC HOSE

1шт.

13

P930-045014

HYDRAULIC HOSE

1шт.

14

S631-011004

O-RING,PF 1/4

6шт.

15

S015-080506

BOLT,M8 x 1.25 x 50mm

2шт.

16

S411-080006

WASHER

2шт.

17

X500-110001

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

1шт.

18

31MJ-90173

TERMINAL

1шт.

Short Arm (0.96M) With Quick Coupler, Var. 405007

1шт.

Long Arm (1.12M) With Quick Coupler, Var. 405009

1шт.

19

X520-110001

ELBOW,PF 1/4 x 9/16 - 18 UNF

2шт.

20

31L7-10340

CLAMP

4шт.

21

P290-100102

PLUG

2шт.

22

X840-525152

TEE,11/16 x 9/16 x 11/16 - 16 UNF

1шт.

23

X840-515151

TEE,9/16 - 18 UNF

1шт.

24

S403-08200B

WASHER

2шт.

25

31MJ-90183

TERMINAL

1шт.

Short Arm (0.96M) With Quick Coupler, Var. 405007

1шт.

Long Arm (1.12M) With Quick Coupler, Var. 405009

1шт.

26

X850-515100

90 ELBOW

1шт.

27

X511-104513

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

1шт.

28

32MJ-10520

GUIDE

1шт.

29

S037-125026

BOLT

1шт.

30

32MJ-10510

GUIDE

1шт.

31

S017-120606

BOLT,M12 x 1.75 x 60mm

1шт.

32

S411-120006

WASHER

1шт.

33

S403-12200B

WASHER

1шт.

34

P930-042016

HYDRAULIC HOSE

1шт.

35

31M9-20060

SOLENOID

1шт.
