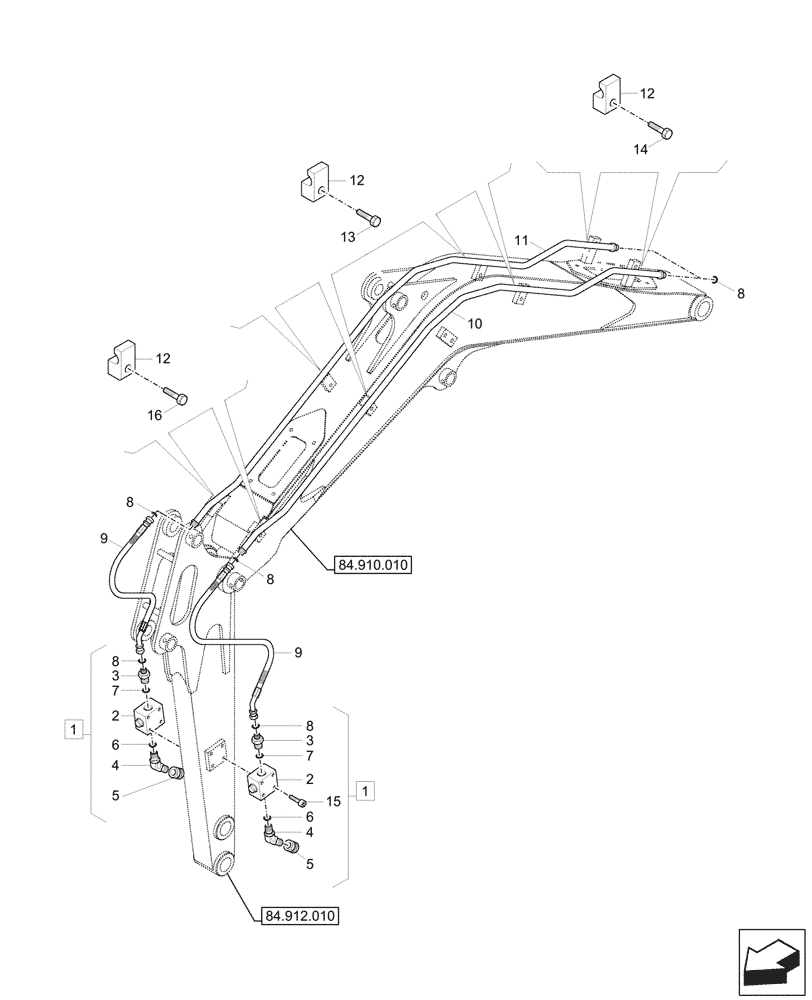

Запчасти Case CX17C (35.360.010) - BOOM, LINE, HAMMER, SHEARS (35) - HYDRAULIC SYSTEMS

1

31MJ-50562

STOP

LH, ASSY, Incl 2 - 7, 8 (Qty 2)

1шт.

Short Arm (0.96M), Var. 405001, 405002

1шт.

Long Arm (1.12M), Var. 405004, 405005

1шт.

1

31MJ-50572

STOP

RH, ASSY, Incl 2 - 7, 8 (Qty 2)

1шт.

Short Arm (0.96M), Var. 405001, 405002

1шт.

Long Arm (1.12M), Var. 405004, 405005

1шт.

2

31MH-50580

STOP

LH

1шт.

2

31MH-50590

STOP

RH

1шт.

3

31MJ-50600

HYD CONNECTOR

2шт.

4

P030-110014

45 ELBOW

2шт.

5

P290-100103

CAP

2шт.

6

S631-018004

O-RING

2шт.

7

S631-024004

O-RING

2шт.

8

S621-012001

O-RING

6шт.

9

P924-065013

HYDRAULIC HOSE

2шт.

Short Arm (0.96M), Var. 405001, 405002

1шт.

9

P924-065017

HYDRAULIC HOSE

2шт.

Long Arm (1.12M), Var. 405004, 405005

1шт.

10

31MJ-50240CA

PIPE

LH

1шт.

11

31MJ-50250CA

PIPE

RH

1шт.

12

31MK-50410

CLAMP

8шт.

13

S037-104026

BOLT

4шт.

Quick Coupler, Var. 405007, 405009

1шт.

Without Quick Coupler, Var. 405042

1шт.

14

S037-104526

BOLT,M10 x 1.5 x 45mm

2шт.

15

S109-100406

BOLT

8шт.

Without Quick Coupler, Var. 405042

1шт.

15

S109-100456

BOLT

8шт.

Quick Coupler, Var. 405007, 405009

1шт.

16

S037-104526

BOLT,M10 x 1.5 x 45mm

2шт.

Without Quick Coupler, Var. 405042

1шт.

16

S037-104026

BOLT

2шт.

Quick Coupler, Var. 405007, 405009

1шт.
