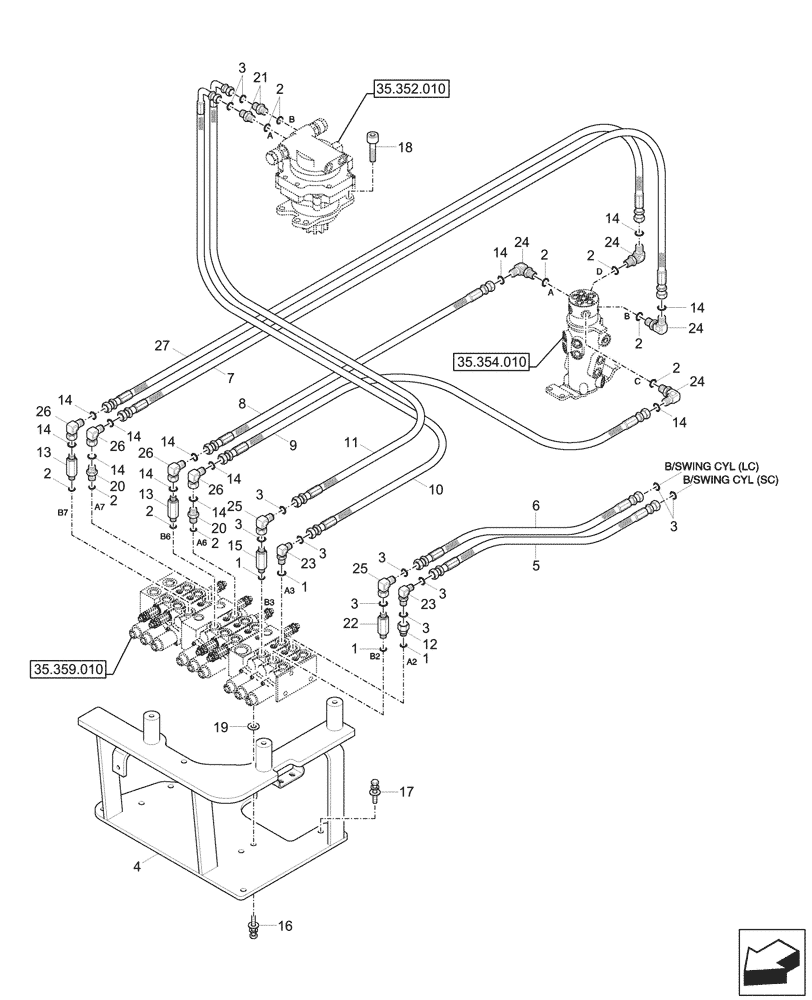

Запчасти Case CX17C (35.359.050) - CONTROL VALVE, LINES (35) - HYDRAULIC SYSTEMS

1

S631-011004

O-RING,PF 1/4

4шт.

2

S631-014004

O-RING

10шт.

3

S621-011001

O-RING,9/16 - 18 UNF

11шт.

4

32MJ-11613CG

BRACKET

1шт.

5

P913-044027

HYDRAULIC HOSE

1шт.

6

P913-044029

HYDRAULIC HOSE

1шт.

7

P910-065008

HYDRAULIC HOSE

1шт.

8

P910-065012

HYDRAULIC HOSE

1шт.

9

P910-065013

HYDRAULIC HOSE

1шт.

10

P930-044017

HYDRAULIC HOSE

1шт.

11

P930-044019

HYDRAULIC HOSE

1шт.

12

32MJ-13100

ADAPTER

1шт.

13

31N8-40330

HYD CONNECTOR

2шт.

14

S621-014001

O-RING

12шт.

15

32MJ-40410

HYD CONNECTOR

1шт.

16

S035-082526

BOLT,M8 x 1.25 x 25mm

4шт.

17

S037-102526

BOLT,M10 x 1.5 x 25mm

4шт.

18

S109-140306

BOLT

4шт.

19

S441-10000B

WASHER

4шт.

20

X500-110002

HYD CONNECTOR,PF 3/8 x 11/16 - 16 UNF

2шт.

21

X500-110013

HYD CONNECTOR,PF 3/8 x 9/16 - 16 UNF

2шт.

22

X511-104514

HYD CONNECTOR

1шт.

23

X520-110001

ELBOW,PF 1/4 x 9/16 - 18 UNF

2шт.

24

X520-110002

ELBOW,PF 3/8 x 11/16 - 16 UNF

4шт.

25

X850-515100

90 ELBOW

2шт.

26

X850-525200

90 ELBOW,2 - 11 / 16 - 16 UNF

4шт.

27

P910-065010

HYDRAULIC HOSE

1шт.
