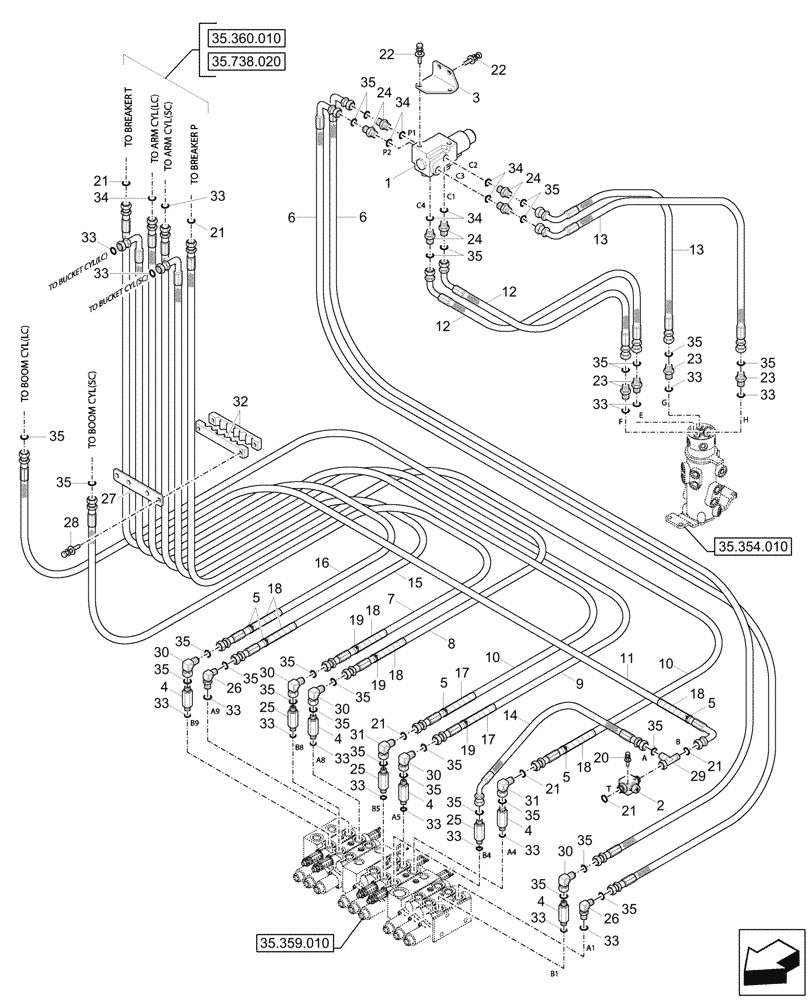

Запчасти Case CX17C (35.359.040) - CONTROL VALVE, BOOM, LINES (35) - HYDRAULIC SYSTEMS

1

31M9-12010

SELECTOR

Pilot

1шт.

2

31MJ-10170

SELECTOR

1шт.

3

32MJ-10820CG

BRACKET

1шт.

4

32MJ-40410

HYD CONNECTOR

5шт.

5

S520-027000

HOSE CLAMP

5шт.

6

P930-044020

HYDRAULIC HOSE,9/16 - 18 UNF x 1000mm

2шт.

7

P910-045029

HYDRAULIC HOSE

1шт.

8

P910-045026

HYDRAULIC HOSE

1шт.

9

P910-045032

HYDRAULIC HOSE

1шт.

10

P910-065033

HYDRAULIC HOSE

2шт.

11

P930-065033

HYDRAULIC HOSE

1шт.

12

P930-044012

HYDRAULIC HOSE

2шт.

13

P930-044013

HYDRAULIC HOSE

2шт.

14

P920-045005

HYDRAULIC HOSE

1шт.

15

32MJ-11410

HYDRAULIC HOSE

1шт.

16

32MJ-11420

HYDRAULIC HOSE

1шт.

17

31MJ-12810

PROTECTOR

2шт.

18

31MJ-12830

PROTECTOR

6шт.

19

S520-020000

HOSE CLAMP

3шт.

20

S035-061526

BOLT

2шт.

21

S621-012001

O-RING

6шт.

22

S035-082026

BOLT,M8 x 1.25 x 20mm

4шт.

23

X500-110001

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

4шт.

24

X500-110013

HYD CONNECTOR,PF 3/8 x 9/16 - 16 UNF

6шт.

25

X511-104515

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

3шт.

26

X520-110001

ELBOW,PF 1/4 x 9/16 - 18 UNF

2шт.

27

31MJ-10720CG

BRACKET

1шт.

28

S037-105026

BOLT

2шт.

29

X840-525152

TEE,11/16 x 9/16 x 11/16 - 16 UNF

1шт.

30

X850-515100

90 ELBOW

5шт.

31

X850-515200

ELBOW

2шт.

32

31MJ-10710

CLAMP

1шт.

33

S631-011004

O-RING,PF 1/4

17шт.

34

S631-014004

O-RING

7шт.

35

S621-011001

O-RING,9/16 - 18 UNF

27шт.
