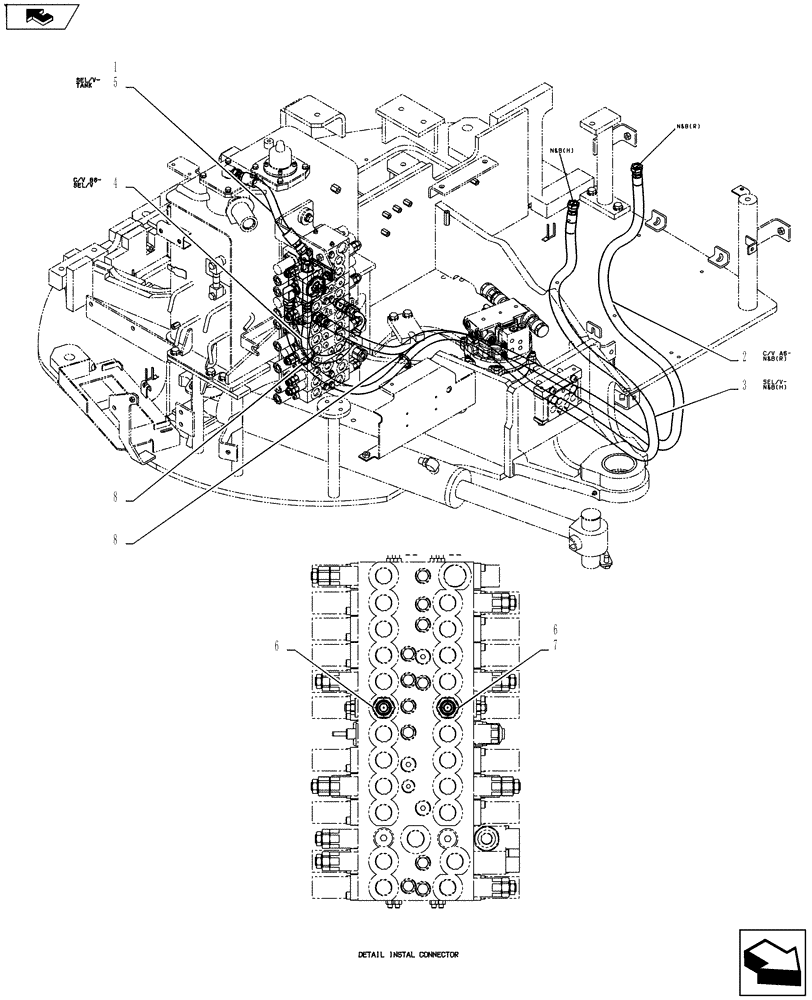

Запчасти Case CX55BMSR (01-024[03]) - HYD LINES, UPPER (35) - HYDRAULIC SYSTEMS

.

Upper Hyd Line Install PY03H00032F1

1шт.

1

NSS

NOT SOLD SEPARAT

Upp. Hyd Line Install PY03H00022F1

1шт.

2

PY03H01130D3

HOSE

, Serial Range: PS02-00101-PS02-00217

1шт.

2

PH03H01085DM

HOSE

, Start Serial: PS02-00218

1шт.

3

PY03H01130D2

HOSE

, Serial Range: PS02-00101-PS02-00217

1шт.

3

PH03H01085DL

HOSE

, Start Serial: PS02-00218

1шт.

4

HX35L08040DX

HOSE

1шт.

5

HX22L08032DX

HOSE

1шт.

6

HH25S08008G1

HYD CONNECTOR

3шт.

7

HH25R08008GB

HYD CONNECTOR

2шт.

8

PY01P01043D5

CABLE TIE,301mm L

2шт.
