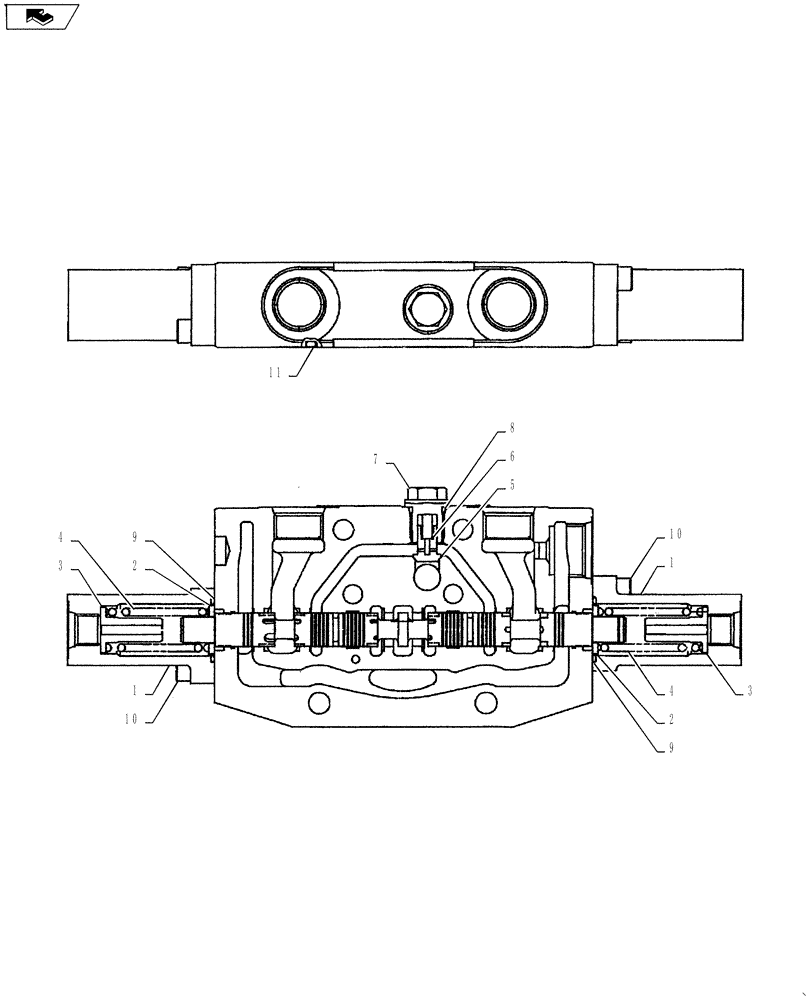

Запчасти Case CX55BMSR (01-020[10]) - VALVE INSTALL (ROTARY) (35) - HYDRAULIC SYSTEMS

.

PH30V00067F2

CONTROL VALVE

Dozer, Control, Incl 1 - 11

1шт.

1

PH30V00053S003

CAP

2шт.

2

2436R919S10

SEAT

Spring

2шт.

3

PH30V00053S005

VALVE SEAT

2шт.

4

PH30V00053S006

SPRING

2шт.

5

PH30V00053S007

POPPET

1шт.

6

PH30V00053S009

SPRING

1шт.

7

PH30V00053S010

PLUG

1шт.

8

2436U1192S19

O-RING

1шт.

9

2436R668S3

O-RING

2шт.

10

ZS23C06018

SCREW,Hex Socket Head, M6 x 18mm

4шт.

11

ZD11G07000

O-RING,69.40mm ID x 75.60mm OD x 3.10mm

1шт.
