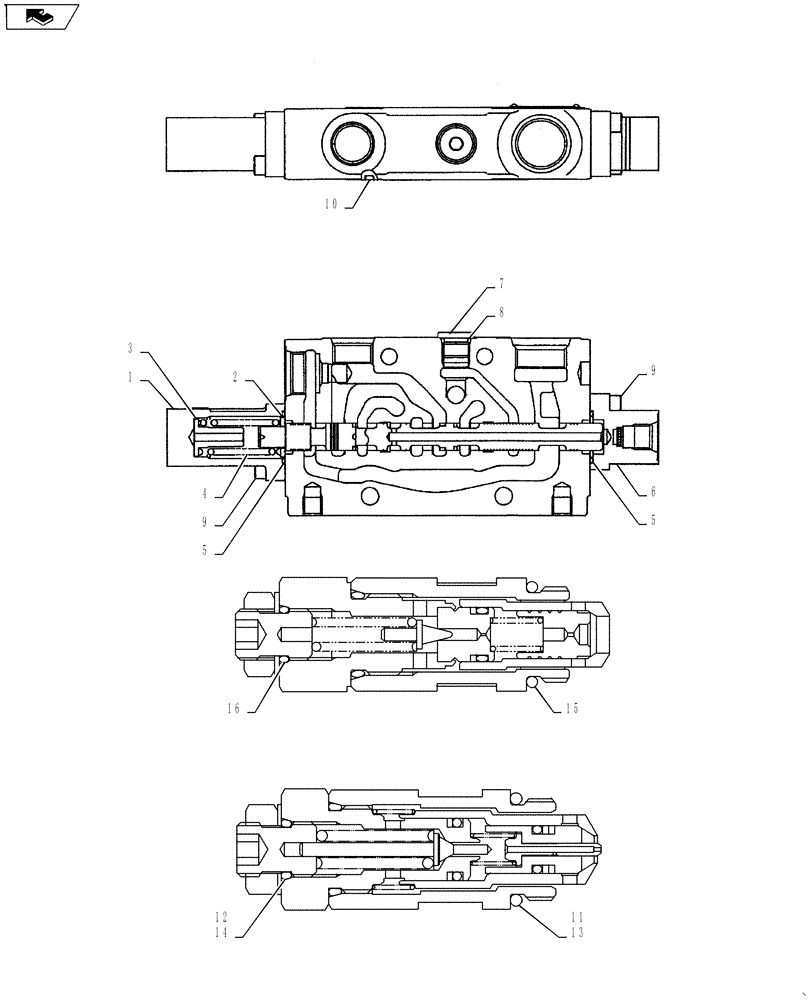

Запчасти Case CX55BMSR (01-020[08]) - VALVE INSTALL (ROTARY) (35) - HYDRAULIC SYSTEMS

.

PH30V00064F1

VALVE

Supply Connecting. Incl

1шт.

1

PH30V00061S014

CAP

1шт.

2

2436R919S10

SEAT

Spring

1шт.

3

PH30V00053S005

VALVE SEAT

1шт.

4

PH30V00064S006

SPRING

1шт.

5

2436R668S3

O-RING

2шт.

6

PH30V00064S008

CAP

1шт.

7

PH30V00055S007

PLUG

1шт.

8

2436U1192S19

O-RING

1шт.

9

ZS23C06018

SCREW,Hex Socket Head, M6 x 18mm

4шт.

10

ZD11G07000

O-RING,69.40mm ID x 75.60mm OD x 3.10mm

1шт.

.

PH22V00014F3

VALVE PRESSURE RELIE

Incl 11 - 12

2шт.

11

2436U388S25

O-RING

1шт.

12

ZD12P01000

O-RING

1шт.

.

PY22V00010F1

VALVE

Incl 13 - 14

8шт.

13

2436U388S25

O-RING

1шт.

14

ZD12P01000

O-RING

1шт.

.

PY22V00010F2

VALVE

Relief, Incl 15 - 16

2шт.

15

2436U388S25

O-RING

1шт.

16

ZD12P01000

O-RING

1шт.
