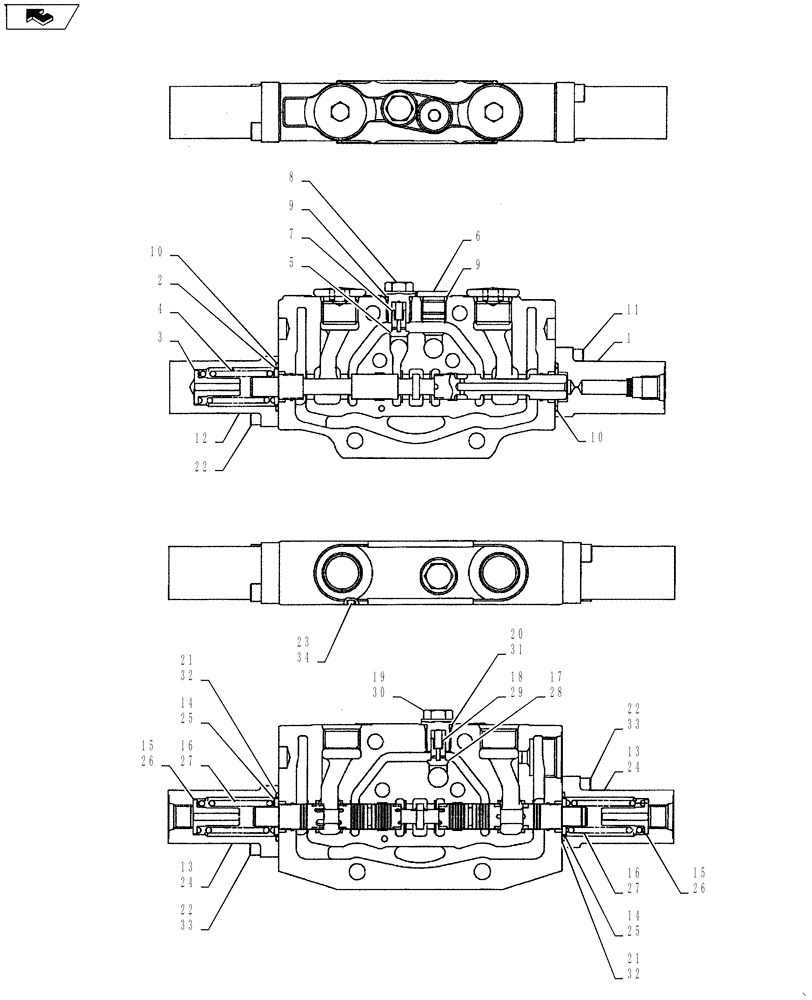

Запчасти Case CX55BMSR (01-020[07]) - VALVE INSTALL (ROTARY) (35) - HYDRAULIC SYSTEMS

.

PY30V00073F1

CONTROL VALVE

Arm Confluence, Incl 1 - 12

1шт.

1

PY30V00073S003

CAP

1шт.

2

2436R919S10

SEAT

Spring

1шт.

3

PH30V00053S005

VALVE SEAT

1шт.

4

PH30V00053S006

SPRING

1шт.

5

PH30V00053S007

POPPET

1шт.

6

PH30V00055S007

PLUG

1шт.

7

PH30V00053S009

SPRING

1шт.

8

PH30V00053S010

PLUG

1шт.

9

2436U1192S19

O-RING

2шт.

10

2436R668S3

O-RING

2шт.

11

ZS23C06018

SCREW,Hex Socket Head, M6 x 18mm

4шт.

12

PH30V00061S014

CAP

1шт.

.

PH30V00062F2

VALVE

Slewing, Incl 13 - 23

1шт.

13

PH30V00053S003

CAP

2шт.

14

2436R919S10

SEAT

Spring

2шт.

15

PH30V00053S005

VALVE SEAT

2шт.

16

PH30V00053S006

SPRING

2шт.

17

PH30V00053S007

POPPET

1шт.

18

PH30V00053S009

SPRING

1шт.

19

PH30V00053S010

PLUG

1шт.

20

2436U1192S19

O-RING

1шт.

21

2436R668S3

O-RING

2шт.

22

ZS23C06018

SCREW,Hex Socket Head, M6 x 18mm

4шт.

23

ZD11G07000

O-RING,69.40mm ID x 75.60mm OD x 3.10mm

1шт.

.

PH30V00063F1

VALVE

Tilt Angle Dozer, Incl 24 - 34

1шт.

24

PH30V00053S003

CAP

2шт.

25

2436R919S10

SEAT

Spring

2шт.

26

PH30V00053S005

VALVE SEAT

2шт.

27

PH30V00053S006

SPRING

2шт.

28

PH30V00053S007

POPPET

1шт.

29

PH30V00053S009

SPRING

1шт.

30

PH30V00053S010

PLUG

1шт.

31

2436U1192S19

O-RING

1шт.

32

2436R668S3

O-RING

2шт.

33

ZS23C06018

SCREW,Hex Socket Head, M6 x 18mm

4шт.

34

ZD11G07000

O-RING,69.40mm ID x 75.60mm OD x 3.10mm

1шт.
