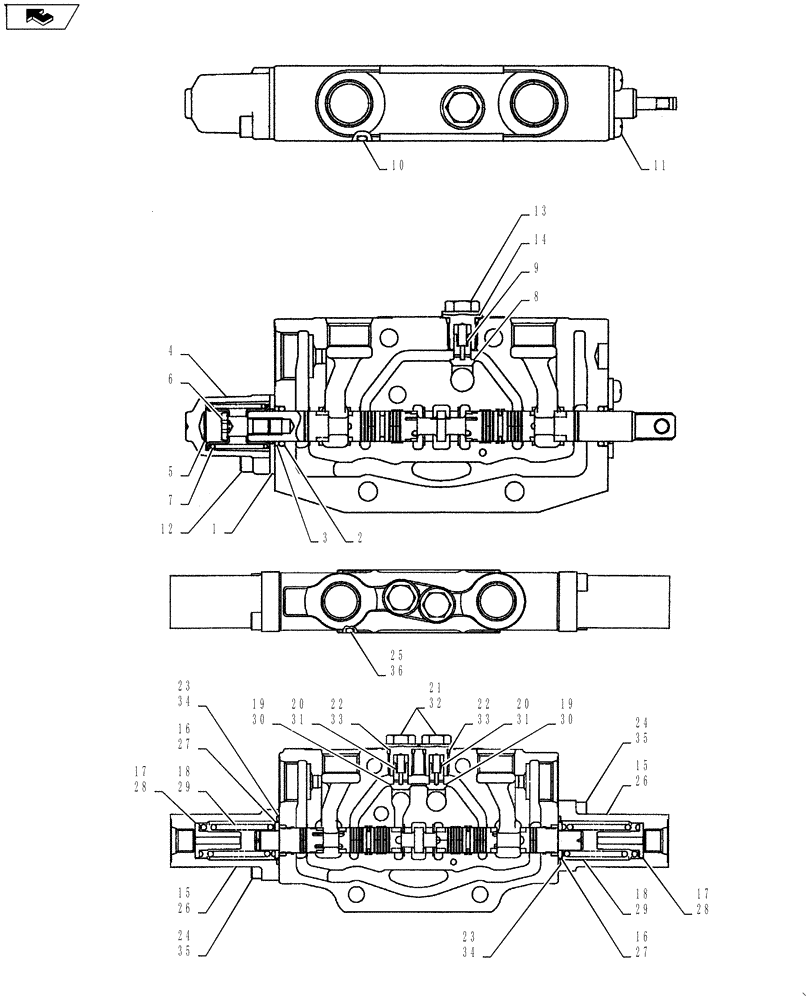

Запчасти Case CX55BMSR (01-020[06]) - VALVE INSTALL (ROTARY) (35) - HYDRAULIC SYSTEMS

.

(Rotary) Control Valve Assembly PY30V00064F1

1шт.

.

PH30V00058F1

VALVE

Boom Swing, Control, Incl 1 - 14

1шт.

1

2436R330S3

PLATE

2шт.

2

2436R330S4

O-RING

2шт.

3

2436R330S5

GASKET

2шт.

4

PH30V00058S006

CAP

1шт.

5

2436U216S28

SPRING

Seat

2шт.

6

PH30V00058S008

SCREW

1шт.

7

2436R704S9

SPRING

1шт.

8

PH30V00053S007

POPPET

1шт.

9

PH30V00053S009

SPRING

1шт.

10

ZD11G07000

O-RING,69.40mm ID x 75.60mm OD x 3.10mm

1шт.

11

ZS31C06010

SCREW,Phillips Drive, Pan HD, M6 x 10mm

Machine

2шт.

12

ZS23C06018

SCREW,Hex Socket Head, M6 x 18mm

Cap

2шт.

13

PH30V00053S010

PLUG

1шт.

14

2436U1192S19

O-RING

1шт.

.

PY30V00071F1

CONTROL VALVE

Service, Incl 15 - 25

1шт.

15

PH30V00053S003

CAP

2шт.

16

2436R919S10

SEAT

Spring

2шт.

17

PH30V00053S005

VALVE SEAT

2шт.

18

PH30V00053S006

SPRING

2шт.

19

PH30V00053S007

POPPET

2шт.

20

PH30V00053S009

SPRING

2шт.

21

PH30V00053S010

PLUG

2шт.

22

2436U1192S19

O-RING

2шт.

23

2436R668S3

O-RING

2шт.

24

ZS23C06018

SCREW,Hex Socket Head, M6 x 18mm

Cap

4шт.

25

ZD11G07000

O-RING,69.40mm ID x 75.60mm OD x 3.10mm

1шт.

.

PY30V00072F1

CONTROL VALVE

Arm, Incl 26 - 36

1шт.

26

PH30V00053S003

CAP

2шт.

27

2436R919S10

SEAT

Spring

2шт.

28

PH30V00053S005

VALVE SEAT

2шт.

29

PH30V00053S006

SPRING

2шт.

30

PH30V00053S007

POPPET

2шт.

31

PH30V00053S009

SPRING

2шт.

32

PH30V00053S010

PLUG

2шт.

33

2436U1192S19

O-RING

2шт.

34

2436R668S3

O-RING

2шт.

35

ZS23C06018

SCREW,Hex Socket Head, M6 x 18mm

Cap

4шт.

36

ZD11G07000

O-RING,69.40mm ID x 75.60mm OD x 3.10mm

1шт.
