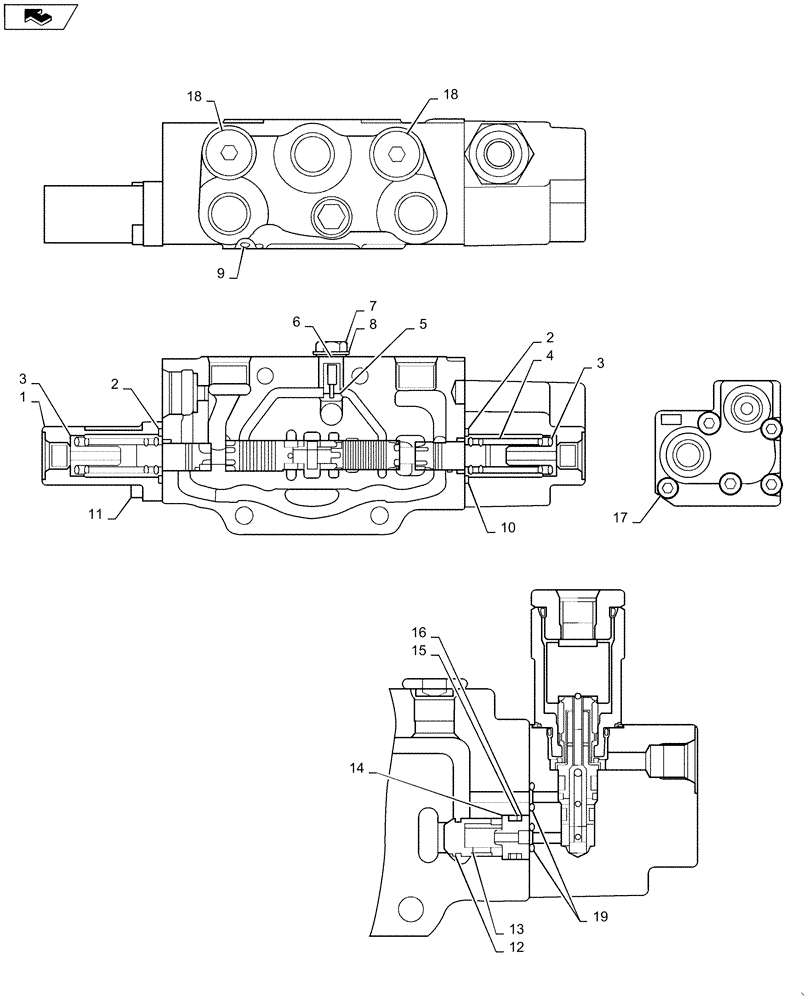

Запчасти Case CX55BMSR (01-020[04]) - VALVE INSTALL (ROTARY) (35) - HYDRAULIC SYSTEMS

.

Rotary Control Valve Assembly PY30V00064F1

1шт.

.

PY30V00068F1

CONTROL VALVE

Boom, Incl 1 - 18

1шт.

1

PH30V00053S003

CAP

1шт.

2

2436R919S10

SEAT

Spring

2шт.

3

PH30V00053S005

VALVE SEAT

2шт.

4

PH30V00053S006

SPRING

2шт.

5

PH30V00053S007

POPPET

1шт.

6

PH30V00053S009

SPRING

1шт.

7

PH30V00053S010

PLUG

1шт.

8

2436U1192S19

O-RING

1шт.

9

ZD11G07000

O-RING,69.40mm ID x 75.60mm OD x 3.10mm

1шт.

10

2436R668S3

O-RING

2шт.

11

ZS23C06018

SCREW,Hex Socket Head, M6 x 18mm

2шт.

12

PH30V00054S015

POPPET

1шт.

13

PH30V00054S016

SPRING

1шт.

14

PH30V00054S017

SPACER

1шт.

15

ZD11P01250

O-RING

1шт.

16

ZD85P01250

BACK-UP RING

1шт.

17

ZS28C06050

SCREW,Hex Socket Head, M6 x 50mm

Cap

5шт.

18

PA30V00001S018

PLUG

Assy.

2шт.

19

ZD12P00700

O-RING,1.6mm Thk x 6.8mm ID, 90 Duro

2шт.
