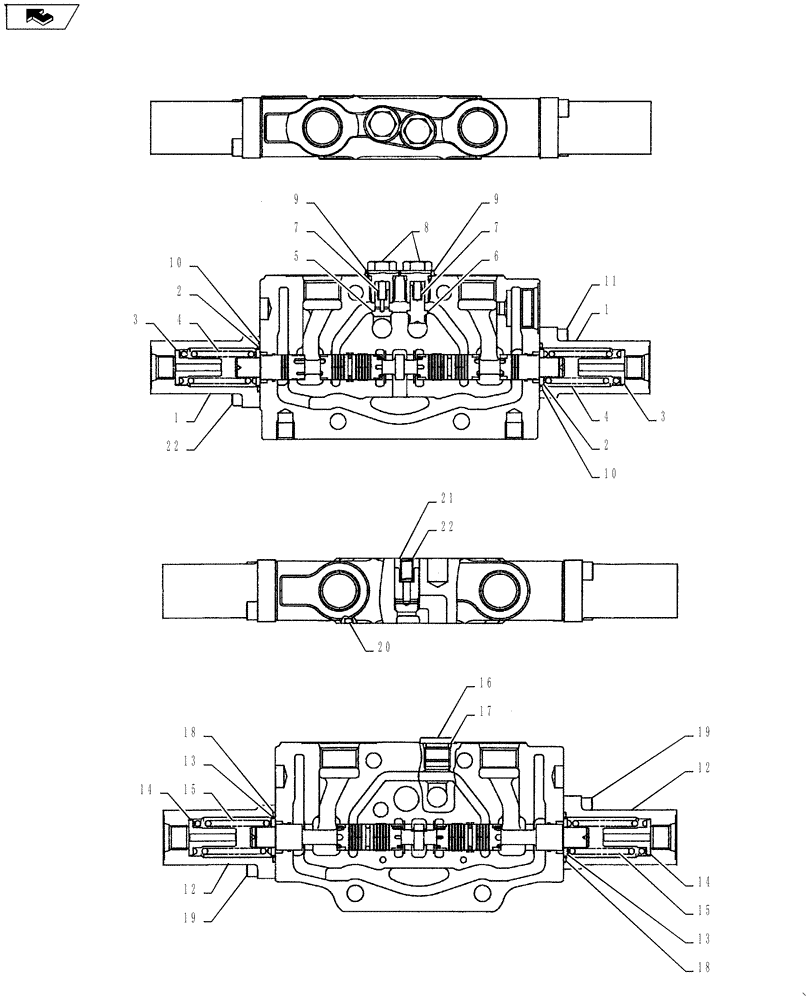

Запчасти Case CX55BMSR (01-020[03]) - VALVE INSTALL (ROTARY) (35) - HYDRAULIC SYSTEMS

.

PH30V00053F1

VALVE

Bucket, Control, Incl 1 - 11

1шт.

1

PH30V00053S003

CAP

2шт.

2

2436R919S10

SEAT

Spring

2шт.

3

PH30V00053S005

VALVE SEAT

2шт.

4

PH30V00053S006

SPRING

2шт.

5

PH30V00053S007

POPPET

1шт.

6

PH30V00053S008

POPPET

1шт.

7

PH30V00053S009

SPRING

2шт.

8

PH30V00053S010

PLUG

2шт.

9

2436U1192S19

O-RING

2шт.

10

2436R668S3

O-RING

2шт.

11

ZS23C06018

SCREW,Hex Socket Head, M6 x 18mm

4шт.

.

PY30V00069F1

CONTROL VALVE

Travel Left, Incl 12 - 22

1шт.

12

PH30V00053S003

CAP

2шт.

13

2436R919S10

SEAT

Spring

2шт.

14

PH30V00053S005

VALVE SEAT

2шт.

15

PH30V00053S006

SPRING

2шт.

16

PH30V00055S007

PLUG

1шт.

17

2436U1192S19

O-RING

1шт.

18

2436R668S3

O-RING

2шт.

19

ZS23C06018

SCREW,Hex Socket Head, M6 x 18mm

4шт.

20

ZD11G07000

O-RING,69.40mm ID x 75.60mm OD x 3.10mm

1шт.

21

PH30V00055S012

POPPET

1шт.

22

2436U389S12

SPRING

1шт.
