(01-020[02]) - VALVE INSTALL (ROTARY)

Запчасти Case CX55BMSR (01-020[02]) - VALVE INSTALL (ROTARY) (35) - HYDRAULIC SYSTEMS

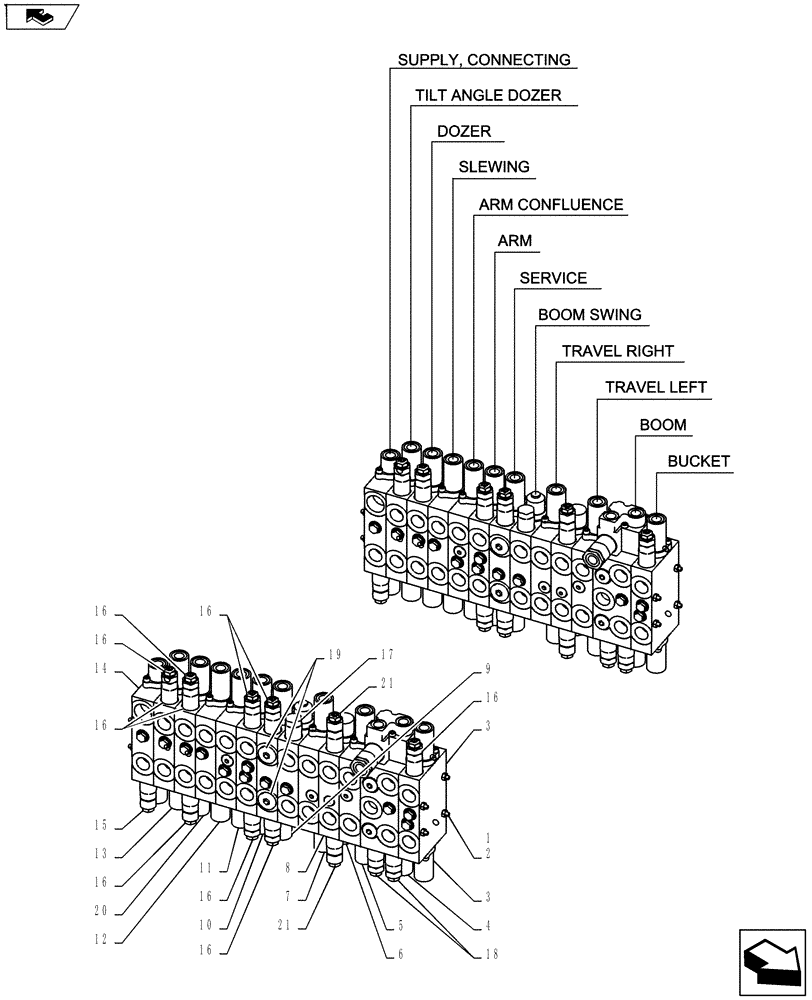

Схема запчастей Case CX55BMSR - (01-020[02]) - VALVE INSTALL (ROTARY) (35) - HYDRAULIC SYSTEMS
3
9
6
19
5
11
16
18
7
1
15
2
16
home
12
10
16
16
8
21
16
13
16
16
20
16
21
4
14
17
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

(Rotary) Control Valve Install PY64H00097F1

1шт.

1

ZN18C08007

NUT

8шт.

2

PH30V00052S002

SCREW

4шт.

3

PH30V00053F1

VALVE

Bucket, Control

1шт.

4

PY30V00068F1

CONTROL VALVE

Boom

1шт.

5

PY30V00069F1

CONTROL VALVE

Travel Left

1шт.

6

PH30V00056F1

VALVE

Control

1шт.

7

PY30V00070F1

CONTROL VALVE

Travel Right

1шт.

8

PH30V00058F1

VALVE

Boom Swing, Control

1шт.

9

PY30V00071F1

CONTROL VALVE

Service

1шт.

10

PY30V00072F1

CONTROL VALVE

Arm

1шт.

11

PY30V00073F1

CONTROL VALVE

Arm Confluence

1шт.

12

PH30V00062F2

VALVE

Slewing, Control

1шт.

13

PH30V00063F1

VALVE

Tilt Angle Dozer, Control

1шт.

14

PH30V00064F1

VALVE

Supply Connecting, Control

1шт.

15

PY22V00017F1

VALVE PRESSURE RELIE

Relief

1шт.

16

PY22V00010F1

VALVE

Relief

8шт.

17

PH22V00013F1

VALVE

Assy., Antivoid

1шт.

18

PY22V00010F2

VALVE

Relief

2шт.

19

YR30V00024S014

PLUG

2шт.

20

PH30V00067F2

CONTROL VALVE

Dozer Control

1шт.

21

PH22V00014F3

VALVE PRESSURE RELIE

Relief

2шт.
