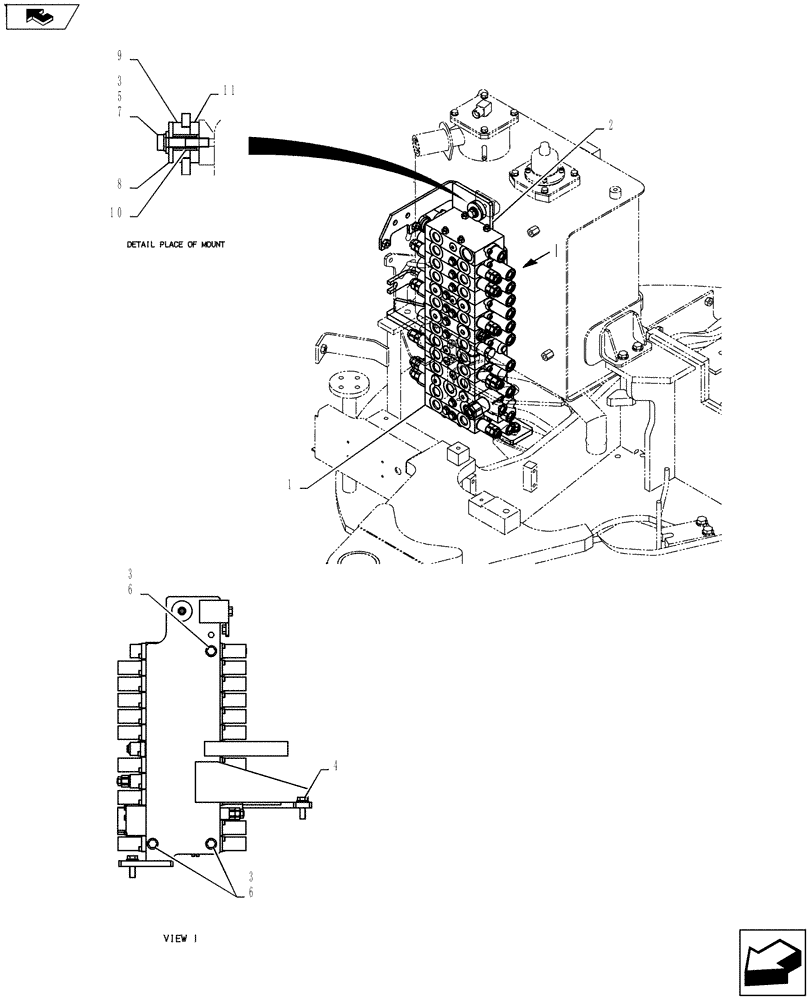

Запчасти Case CX55BMSR (01-020[01]) - VALVE INSTALL (ROTARY) (35) - HYDRAULIC SYSTEMS

.

(Rotary) Control Valve Install PY64H00097F1, Start Serial: PS02-00101

1шт.

1

PY30V00064F1

VALVE

Assy., Control

1шт.

2

PY64H01058P1

BRACKET

1шт.

3

ZW16H10000

WASHER

4шт.

4

ZM73C12040

BOLT,M12x40mm - Course Thread

Sems

2шт.

5

ZS18C10050

SCREW,Hex, M10 x 50mm

Cap

1шт.

6

ZS18C10020

SCREW,Hex, M10 x 20mm

Cap

3шт.

7

ZW26X10000

LOCK WASHER

1шт.

8

2418T21137

WASHER

1шт.

9

PW64H01062P1

RUBBER

1шт.

10

2418T17903D9

SPACER

1шт.

11

2416Z649

CUSHION

1шт.
