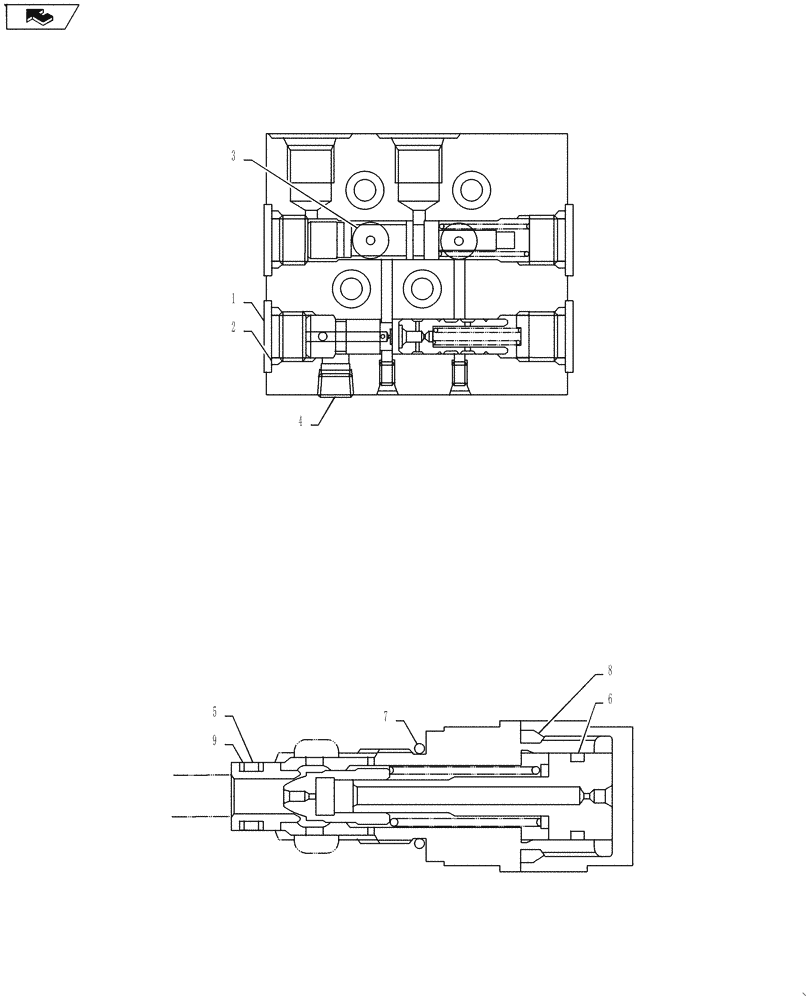

Запчасти Case CX55BMSR (01-017[03]) - SWING MOTOR RELIEF VALVE (35) - HYDRAULIC SYSTEMS

.

PY22V00016F1

VALVE PRESSURE RELIE

Assembly, Incl 1 - 9

1шт.

1

PM22V00004S006

PLUG

4шт.

2

ZD12P01100

O-RING

4шт.

3

ZD12P00700

O-RING,1.6mm Thk x 6.8mm ID, 90 Duro

2шт.

4

PY64H00003S512

PLUG

1шт.

5

ZD12P01400

O-RING

1шт.

6

ZD12P01800

O-RING

1шт.

7

ZD12P02200

O-RING

1шт.

8

ZD12P02800

O-RING

1шт.

9

ZD85P01400

RING

Back-up

2шт.

PY22V00009R100

REPAIR KIT

Consists Of Item: 5(1), 6(1), 7(1), 8(1), 9(2)

1шт.
