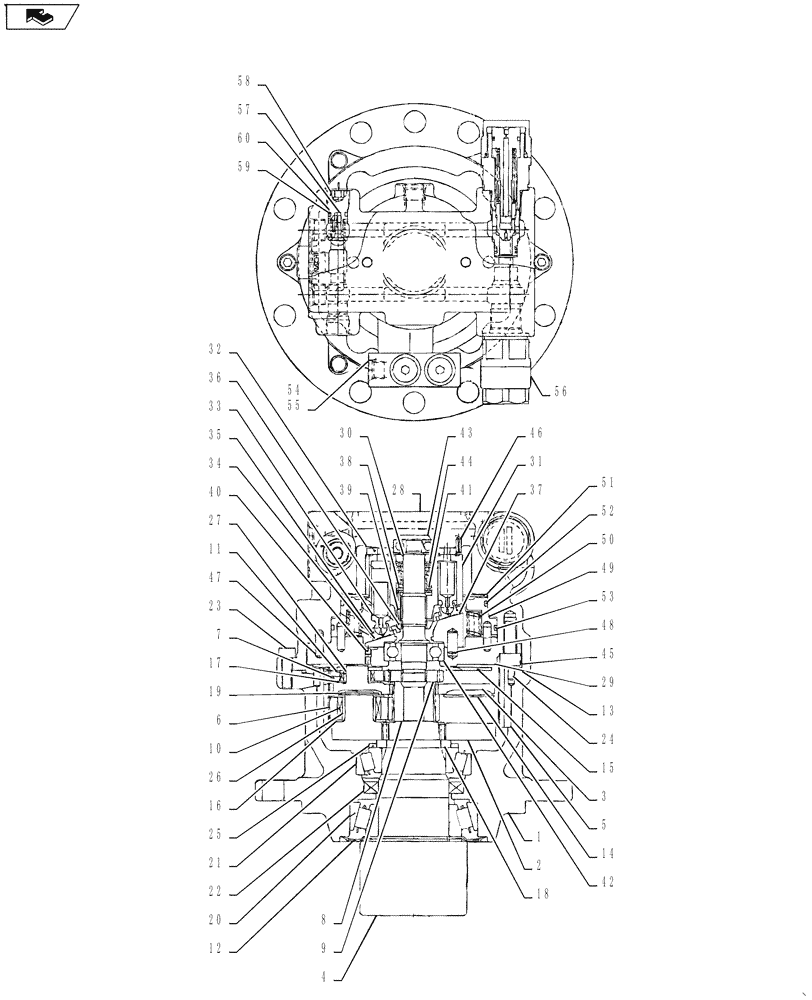

Запчасти Case CX55BMSR (01-017[02]) - SWING MOTOR ASSEMBLY (35) - HYDRAULIC SYSTEMS

.

Swing Motor Install PY32W00005F1

1шт.

.

PY15V00014F1

HYDRAULIC MOTOR

Assembly, Incl 1 - 60

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

NSS

NOT SOLD SEPARAT

Carrier

1шт.

3

NSS

NOT SOLD SEPARAT

Carrier

1шт.

4

NSS

NOT SOLD SEPARAT

Shaft

1шт.

5

NSS

NOT SOLD SEPARAT

Gear

1шт.

6

NSS

NOT SOLD SEPARAT

Gear

4шт.

7

NSS

NOT SOLD SEPARAT

Gear

3шт.

8

PY15V00014S108

GEAR

1шт.

9

PY15V00014S109

GEAR

1шт.

10

NSS

NOT SOLD SEPARAT

Needle

92шт.

11

NSS

NOT SOLD SEPARAT

Needle

72шт.

12

NSS

NOT SOLD SEPARAT

Ring

1шт.

13

PY15V00014S114

O-RING

1шт.

14

NSS

NOT SOLD SEPARAT

Plate

1шт.

15

NSS

NOT SOLD SEPARAT

Plate

1шт.

16

NSS

NOT SOLD SEPARAT

Washer, Thrust

4шт.

17

NSS

NOT SOLD SEPARAT

Washer, Thrust

3шт.

18

NSS

NOT SOLD SEPARAT

Collar

2шт.

19

PY15V00014S120

RING

4шт.

20

NSS

NOT SOLD SEPARAT

Bearing

1шт.

21

NSS

NOT SOLD SEPARAT

Bearing

1шт.

22

NSS

NOT SOLD SEPARAT

Oil Seal

1шт.

23

ZS23C08025

SCREW,Hex Socket Head, M8 x 25mm

Cap

6шт.

24

NSS

NOT SOLD SEPARAT

Pin

4шт.

25

PY15V00012S136

RING

1шт.

26

NSS

NOT SOLD SEPARAT

Ring

4шт.

27

NSS

NOT SOLD SEPARAT

Ring

3шт.

28

NSS

NOT SOLD SEPARAT

Body

1шт.

29

NSS

NOT SOLD SEPARAT

Plate

1шт.

30

NSS

NOT SOLD SEPARAT

Shaft

1шт.

31

NSS

NOT SOLD SEPARAT

Block, Cylinder

1шт.

32

NSS

NOT SOLD SEPARAT

Plate, Valve

1шт.

33

NSS

NOT SOLD SEPARAT

Piston

9шт.

34

NSS

NOT SOLD SEPARAT

Shoe

9шт.

35

NSS

NOT SOLD SEPARAT

Retainer, Shoe

1шт.

36

NSS

NOT SOLD SEPARAT

Holder

1шт.

37

NSS

NOT SOLD SEPARAT

Plate, Shoe

1шт.

38

NSS

NOT SOLD SEPARAT

Retainer

2шт.

39

NSS

NOT SOLD SEPARAT

Pin

3шт.

40

PM15V00008S014

FILTER

1шт.

41

NSS

NOT SOLD SEPARAT

Spring

1шт.

42

PY15V00012S216

BALL BEARING

1шт.

43

PR15V00004S074

BEARING

Ball

1шт.

44

ZR26X02800

RING

Snap

1шт.

45

ZS23C12035

SCREW,Hex Socket Head, M12 x 35mm

Cap

8шт.

46

ZP26D05012

PIN

Spring

1шт.

47

PA15V01002S321

PIN

3шт.

48

NSS

NOT SOLD SEPARAT

Pin

1шт.

49

NSS

NOT SOLD SEPARAT

Piston, Brake

1шт.

50

NSS

NOT SOLD SEPARAT

Spring

1шт.

51

NSS

NOT SOLD SEPARAT

Plate

1шт.

52

ZD12G11000

O-RING,109.40mm ID x 115.60mm OD x 3.10mm

1шт.

53

ZD12G12500

O-RING,124.40mm ID x 130.60mm OD x 3.10mm

1шт.

54

PY64H00003F1

HYDRAULIC VALVE

Assy.

1шт.

55

ZS23C06015

SCREW,Hex Socket Head, M6 x 15mm

Cap

4шт.

56

PY22V00016F1

VALVE PRESSURE RELIE

Relief

2шт.

57

NSS

NOT SOLD SEPARAT

Check, Valve

2шт.

58

NSS

NOT SOLD SEPARAT

Plug

2шт.

59

ZD12P01100

O-RING

2шт.

60

NSS

NOT SOLD SEPARAT

O-ring

2шт.

PY15V00014R600

REPAIR KIT

Consists Of Item: 1(1), 4(1), 5(1), 12(1), 20(1), 21(1), 22(1), 18(2)

1шт.

PY15V00014R610

REPAIR KIT

Consists Of Item: 2(1), 14(1), 6(4), 16(4), 19(4), 26(4), 10(92)

1шт.

PY15V00014R620

REPAIR KIT

Consists Of Item: 3(1), 15(1), 7(3), 17(3), 27(3), 11(72)

1шт.

PY15V00014R630

REPAIR KIT

Consists Of Item: 28(1), 43(1), 46(1), 57(2), 58(2), 59(2), 60(2)

1шт.

PY15V00014R640

REPAIR KIT

Consists Of Item: 31(1), 32(1), 35(1), 36(1), 41(1), 44(1), 38(2), 39(3), 33(9), 34(9)

1шт.

PY15V00014R650

REPAIR KIT

Consists Of Item: 37(1), 48(1)

1шт.

PY15V00014R660

REPAIR KIT

Consists Of Item: 52(1), 53(1), 60(2)

1шт.
