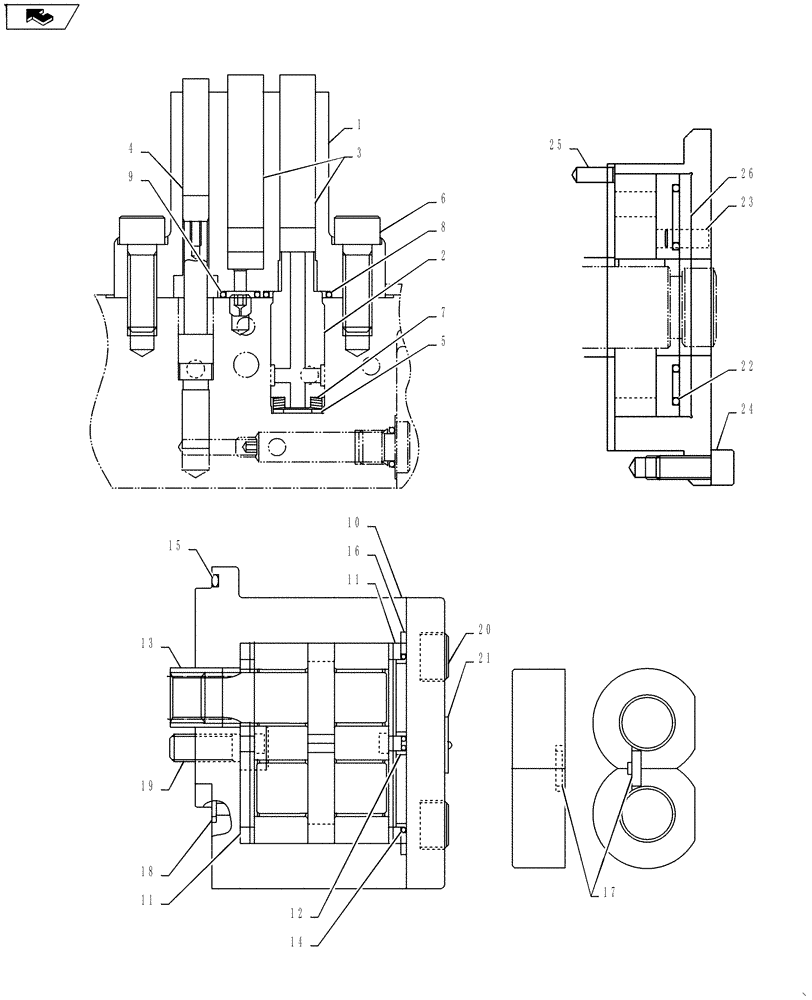

Запчасти Case CX55BMSR (01-016[04]) - POWER TAKE-OFF ASSY (COOLER) (35) - HYDRAULIC SYSTEMS

PH10V00015F1

HYDRAULIC PUMP

Assy (Cooler) Incl 1 - 26

1шт.

1

PH10V01004S001

CYLINDER

1шт.

2

PY10V01008S002

PISTON

1шт.

3

PH10V01004S003

PISTON

Assy.

2шт.

4

PH10V01004S004

PIN

1шт.

5

PY10V01006S005

SPRING SEAT

1шт.

6

ZS23C08025

SCREW,Hex Socket Head, M8 x 25mm

Cap

2шт.

7

PW10V00001S056

VALVE SPRING

3шт.

8

2436U1852S105

O-RING

1шт.

9

PH10V01004S009

O-RING

1шт.

10

PM10V00014S004

COVER

1шт.

11

PX10V00014S010

PLATE

3шт.

12

2441U466S48

GUIDE

2шт.

13

YJ10V00007S012

COUPLING

1шт.

14

2441U661S13

O-RING

2шт.

15

ZD11G09000

O-RING,89.40mm ID x 95.60mm OD x 3.10mm

1шт.

16

2441U661S11

RING

1шт.

17

2437U392S16

RING

2шт.

18

ZD12P00600

O-RING

1шт.

19

ZS23C10025

SCREW,Hex Socket Head, M10 x 25mm

Cap

2шт.

20

ZS23C10020

SCREW,Hex Socket Head, M10 x 20mm

Cap

4шт.

21

PX10V00014S030

IDENTITY PLATE

1шт.

22

PX10V00015S004

O-RING

1шт.

23

LE10V01001S039

PIN

Spring

1шт.

24

PH10V00007S006

CAPSCREW

Cap

3шт.

25

ZP26D03008

PIN

Spring

1шт.

26

PM10V00015S009

PLATE

1шт.
