Запчасти Case CX55BMSR (01-016[01]) - POWER TAKE-OFF ASSY (COOLER) (35) - HYDRAULIC SYSTEMS

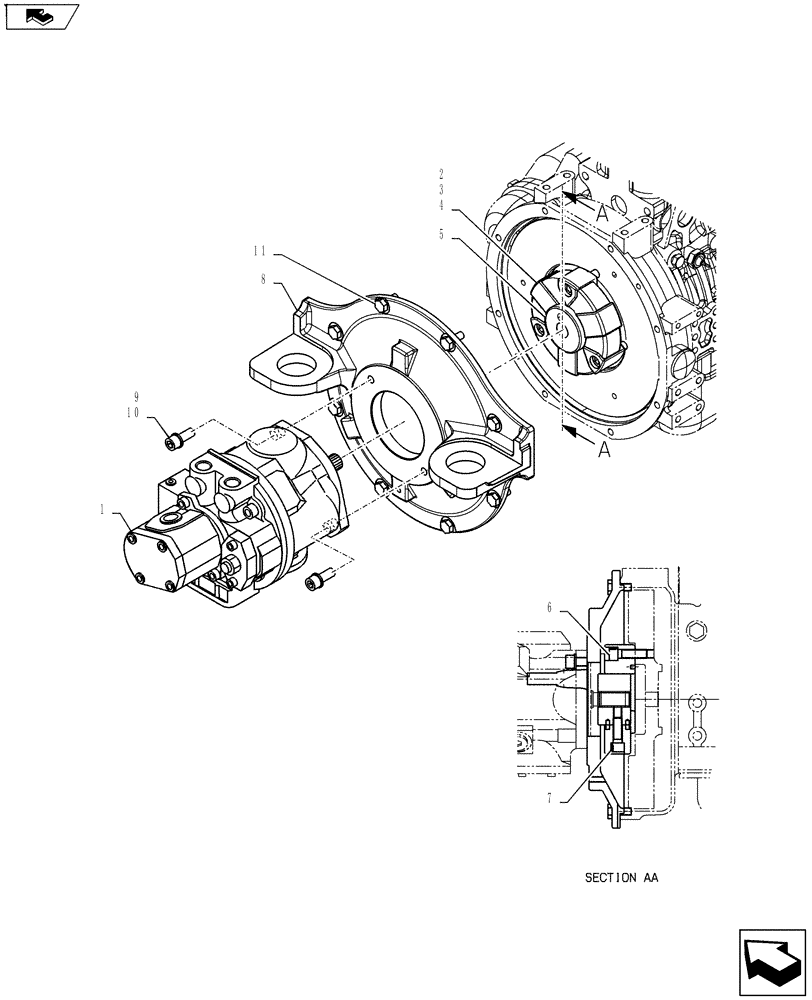

Схема запчастей Case CX55BMSR - (01-016[01]) - POWER TAKE-OFF ASSY (COOLER) (35) - HYDRAULIC SYSTEMS
4
8
7
2
1
3
9
11
6
5
home
10

Артикул

Название

Примечание

Количество

.

PY30P00005F1

PTO

Power Take-Off Install (Cooler) Incl 1 - 11

1шт.

1

PH10V00015F1

HYDRAULIC PUMP

Assy., Serial Range: PS02-00101-PS02-01751

1шт.

1

PH10V00015F2

HYDRAULIC PUMP

Assy., Start Serial: PS02-01752

1шт.

2

NSS

NOT SOLD SEPARAT

Power Take-Off Assy PY30P00006F1, Incl 3 - 7

1шт.

3

PW30P01007F1

COUPLING

Assy.

1шт.

4

PW30P01002S001

COUPLING

1шт.

5

PW30P01002S002

HUB

1шт.

6

PW30P01002S003

CAPSCREW,Hex Socket Head, M12 x 40mm

3шт.

7

PY30P01003S004

CAPSCREW,Hex Socket Head, M12 x 35mm

3шт.

8

PY30P01009P1

BRACKET

1шт.

9

PV17M01003D1

SCREW

Cap

2шт.

10

ZW16K12000

WASHER

2шт.

11

ZS18C10025

SCREW,Hex, M10 x 25mm

Cap

8шт.

Выбрано товаров: 13
