(01-015[05]) - POWER TAKE-OFF ASSY (CANOPY)

Запчасти Case CX55BMSR (01-015[05]) - POWER TAKE-OFF ASSY (CANOPY) (35) - HYDRAULIC SYSTEMS

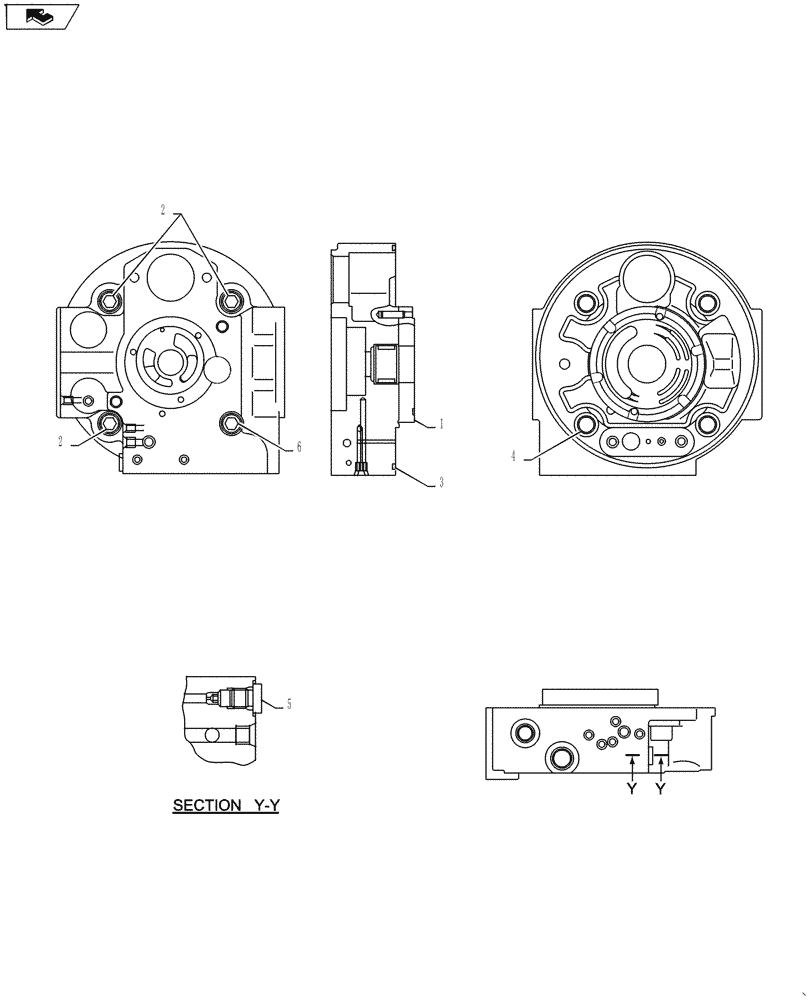

Схема запчастей Case CX55BMSR - (01-015[05]) - POWER TAKE-OFF ASSY (CANOPY) (35) - HYDRAULIC SYSTEMS
6
4
2
2
3
5
home
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PY30P00005F2

PTO

Assy, PTO (Canopy), Start Serial: PS02-00101

1шт.

PH10V00013F1

HYDRAULIC PUMP

Assy, Incl 1 - 6

1шт.

1

PY10V01003S002

PLATE

1шт.

2

ZS23C12030

SCREW,Hex Socket Head, M12 x 30mm

Cap

3шт.

3

PW10V00001S030

O-RING

1шт.

4

2436R1194S12

O-RING

4шт.

5

PY10V01003S011

PLUG

1шт.

6

ZS23C12055

SCREW,Hex Socket Head, M12 x 55mm

1шт.
