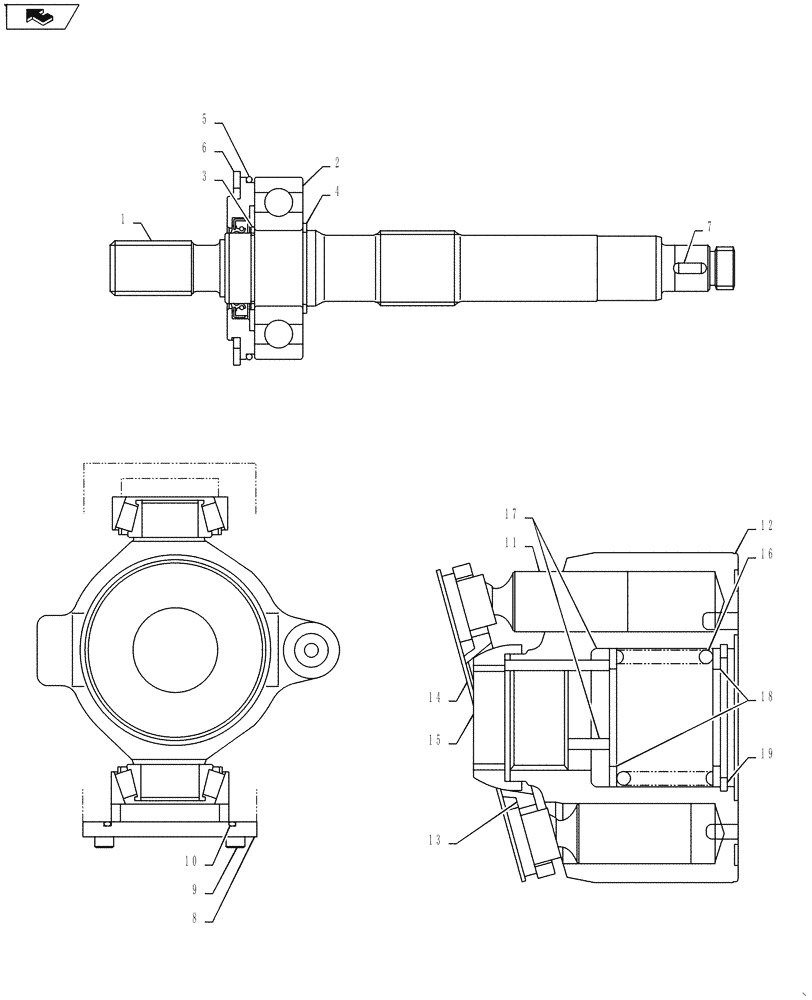

Запчасти Case CX55BMSR (01-015[03]) - POWER TAKE-OFF ASSY (CANOPY) (35) - HYDRAULIC SYSTEMS

PH10V00013F1

HYDRAULIC PUMP

Assy (Canopy) Incl 1 - 19, Start Serial: PS02-00101

1шт.

1

YJ10V01001S001

SHAFT

1шт.

2

PW10V00001S003

BEARING

Ball

1шт.

3

ZR16X02800

SNAP RING

1шт.

4

ZR16X03000

SNAP RING

Snap

1шт.

5

PW10V00001S009

O-RING

1шт.

6

ZR26X07200

SNAP RING

1шт.

7

PM10V01001S006

KEY

1шт.

8

2416R252S2

PLATE

Cover

1шт.

9

ZS23C06016

SCREW,Hex Socket Head, M6 x 16mm

Cap

4шт.

10

2416R252S6

O-RING

1шт.

11

PY10V01005S001

PISTON

10шт.

12

PY10V01005S002

BLOCK

1шт.

13

PY10V01005S004

RETAINER

1шт.

14

PY10V01005S005

PLATE

1шт.

15

24100R232S6

GUIDE

1шт.

16

PY10V01005S007

VALVE SPRING

1шт.

17

24100R166S8

PIN

3шт.

18

PY10V01005S009

SPRING SEAT

2шт.

19

ZR26X04000

RING

Snap

1шт.
