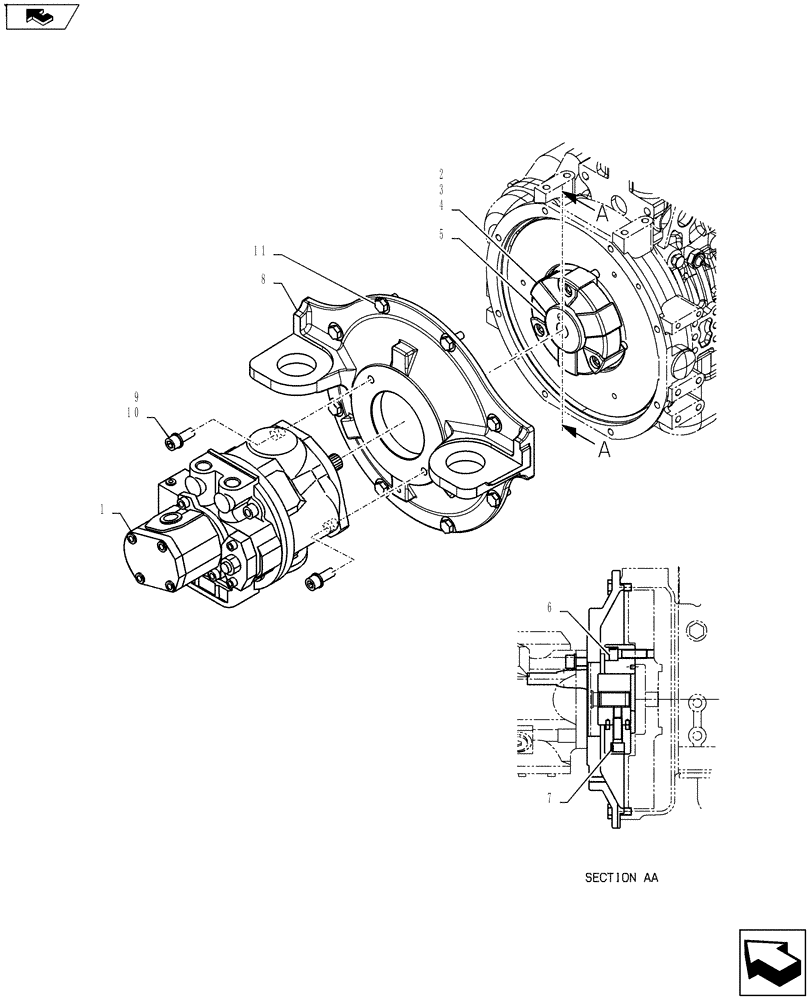

Запчасти Case CX55BMSR (01-015[01]) - POWER TAKE-OFF ASSY (CANOPY) (35) - HYDRAULIC SYSTEMS

.

PY30P00005F2

PTO

Assy, Power Take-Off (Canopy) Incl 1 - 11, Start Serial: PS02-00101

1шт.

1

PH10V00013F1

HYDRAULIC PUMP

Assy., Serial Range: PS02-00112-PS02-01751

1шт.

1

PH10V00013F2

HYDRAULIC PUMP

Assy., Start Serial: PS02-01752

1шт.

2

NSS

NOT SOLD SEPARAT

Power Take-off Assy PY30P00006F1, Incl 3 - 7

1шт.

3

PW30P01007F1

COUPLING

Assy.

1шт.

4

PW30P01002S001

COUPLING

1шт.

5

PW30P01002S002

HUB

1шт.

6

PW30P01002S003

CAPSCREW,Hex Socket Head, M12 x 40mm

3шт.

7

PY30P01003S004

CAPSCREW,Hex Socket Head, M12 x 35mm

3шт.

8

PY30P01009P1

BRACKET

1шт.

9

PV17M01003D1

SCREW

Cap

2шт.

10

ZW16K12000

WASHER

2шт.

11

ZS18C10025

SCREW,Hex, M10 x 25mm

Cap

8шт.
