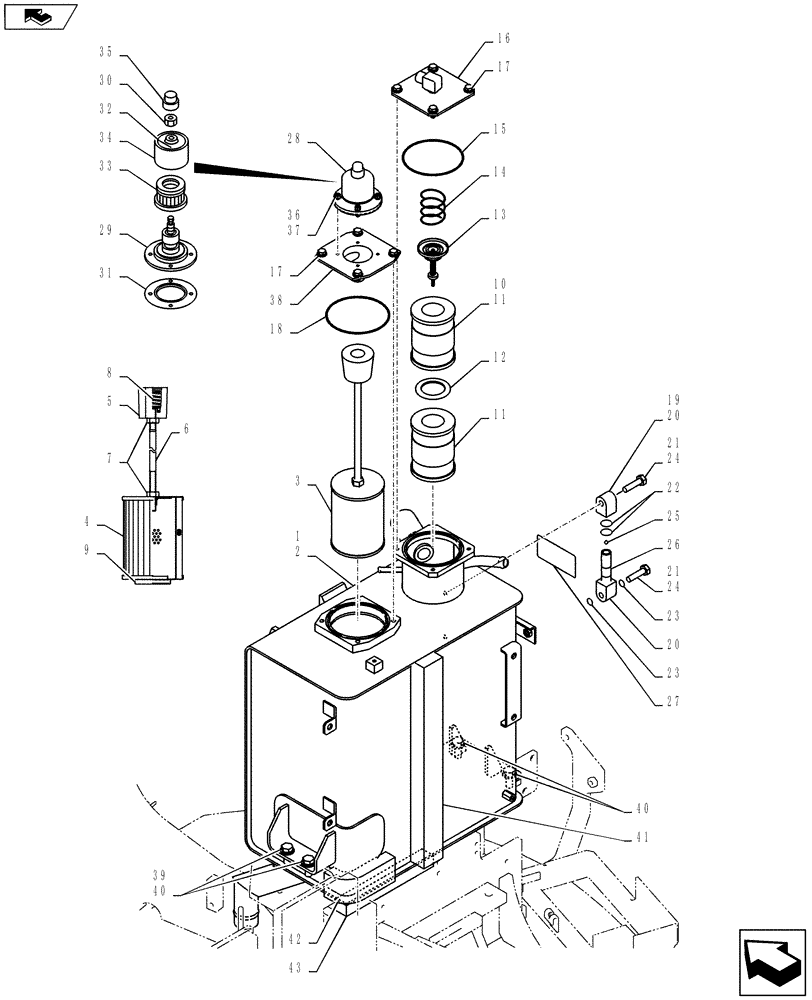

Запчасти Case CX55BMSR (01-013[00]) - HYD TANK INSTALL (35) - HYDRAULIC SYSTEMS

.

Hyd. Install (Nibbler & Breaker) PY33H00012F1, Serial Range: PS02-00101-PS02-00107

1шт.

.

YR52V01004R300

REPAIR KIT

Consists Of Item:12(1), 15(1), 11(2)

1шт.

1

NSS

NOT SOLD SEPARAT

Hyd. Assy PY33H00009F1

1шт.

2

PY33H00008P1

TANK

, Serial Range: PS02-00102-PS02-00488

1шт.

2

PY33H00020P1

TANK

, Start Serial: PS02-00489

1шт.

3

PW50V00015F1

STRAINER ASSY.

Suction, Incl 4 - 9

1шт.

4

PM50V00017S001

FILTER STRAINER

1шт.

5

2446R176S2

HOLDER

1шт.

6

PM50V00017S006

BOLT

1шт.

7

ZN11C10008

NUT

2шт.

8

2446R176S5

SPRING

1шт.

9

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

10

YR52V01004F1

ELEMENT

Filter, Incl 11 - 14

1шт.

11

YR52V01002P2

ELEMENT

Filter

2шт.

12

YR52V01001S002

RUBBER JOINT

1шт.

13

YR21V00001P1

VALVE

Check

1шт.

14

YR52V01001S004

SPRING

1шт.

15

ZD11G11000

O-RING,109.40mm ID x 115.60mm OD x 3.10mm

1шт.

16

PM33H01083P2

COVER

1шт.

17

ZM73C08016

BOLT,M8x16mm - Course Thread

Sems

8шт.

18

ZD11G11500

O-RING,114.40mm ID x 120.60mm OD x 3.10mm

1шт.

19

YN58S00009F3

GAUGE ASSY.

Level, Oil, Incl 20 - 26

1шт.

20

NSS

NOT SOLD SEPARAT

Block

2шт.

21

NSS

NOT SOLD SEPARAT

Capscrew

2шт.

22

NSS

NOT SOLD SEPARAT

O-Ring

4шт.

23

NSS

NOT SOLD SEPARAT

O-Ring

4шт.

24

NSS

NOT SOLD SEPARAT

Washer

2шт.

25

NSS

NOT SOLD SEPARAT

Ball

1шт.

26

NSS

NOT SOLD SEPARAT

Gauge

1шт.

27

YF33H01020P1

LABEL

1шт.

28

YN57V00002F4

BREATHER ASSY.

Assembly, Incl 29 - 35

1шт.

29

2446U260S1

BODY

Assy.

1шт.

30

2446U260S5

NUT

1шт.

31

2446U260S8

PACKING

1шт.

32

YN57V00002S007

IDENTITY PLATE

Caution

1шт.

33

YN57V00002S010

ELEMENT

1шт.

34

YN57V00002S011

COVER

1шт.

35

YN57V00002S012

CAP

1шт.

36

ZS28C06016

SCREW,Hex Socket Head, M6 x 16mm

Cap

4шт.

37

ZW26K06000

LOCK WASHER

4шт.

38

PW33H01146P1

COVER

1шт.

39

NSS

NOT SOLD SEPARAT

Hyd. Tank Install PY33H00011F1

1шт.

40

ZM73C12030

BOLT,M12x30mm - Course Thread

Sems

4шт.

41

PY33H01038P1

INSULATION

1шт.

42

PY33H01039P1

INSULATION

1шт.

43

PY33H01040P1

INSULATION

1шт.
