(08-009[00]) - LUB.OIL SYSTEM

Запчасти Case CX55BMSR (08-009[00]) - LUB.OIL SYSTEM (10) - ENGINE

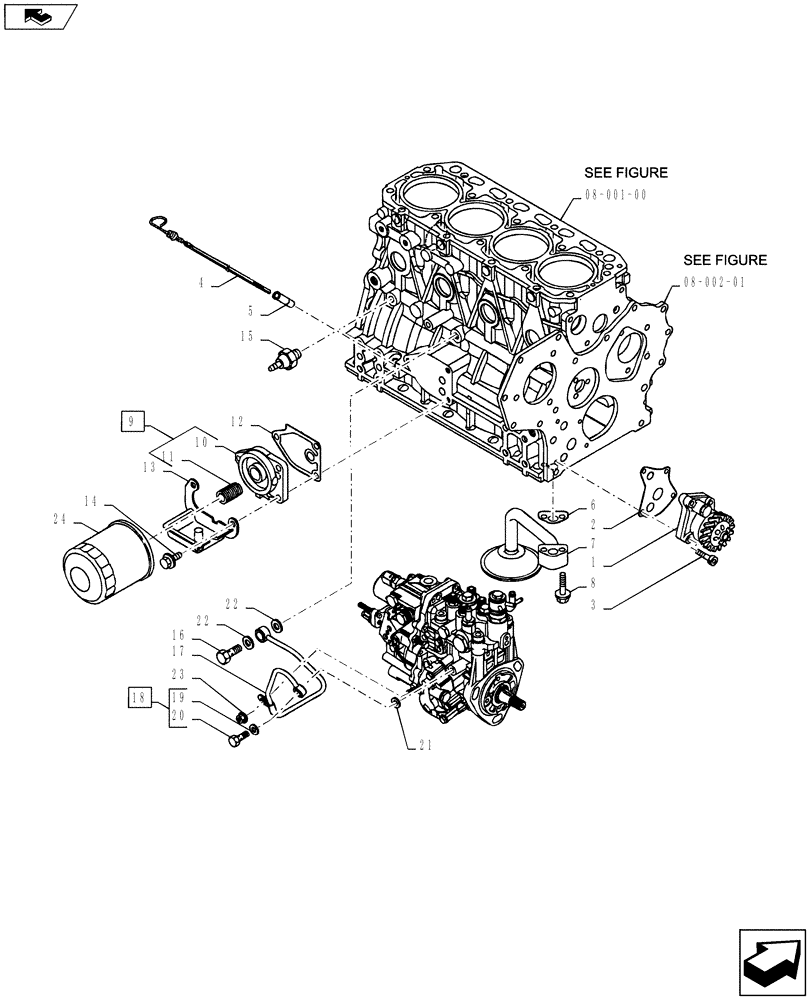

Схема запчастей Case CX55BMSR - (08-009[00]) - LUB.OIL SYSTEM (10) - ENGINE
2
08-002-01
8
11
3
9
13
18
19
10
08-001-00
home
7
5
14
4
20
22
1
24
22
17
6
12
15
16
23
21
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

VV12940732000

LUBE PUMP

Lub. Oil

1шт.

2

VV12915032020

GASKET

Pump

1шт.

3

VV26450060252

BOLT,M6 x 25mm

M6x25

4шт.

4

VV12900434802

DIPSTICK

Lub. Oil

1шт.

5

VV12152034810

GUIDE

Dipstick

1шт.

6

VV12915035042

GASKET

Pipe

1шт.

7

VV12943635091

PIPE ASSY.

Oil Inlet, Serial Range: PS02-00101-PS02-00109

1шт.

7

VV12943635070

PIPE

, Start Serial: PS02-00112

1шт.

8

VV26106080352

BOLT,M8 x 35mm

M8X35 Plated, Serial Range: PS02-00101-PS02-00109

2шт.

8

VV26106080552

BOLT,M8 x 55mm

M8X55 Plated, Start Serial: PS02-00112

2шт.

9

VV11980235100

BRACKET

Filter, Includes Ref. 10-11

1шт.

10

VV11980235110

BRACKET

Filter

1шт.

11

VV12910035140

STUD

1шт.

12

VV12915035111

GASKET

Bracket

1шт.

13

VV12924035800

PLATE

Oil

1шт.

14

VV26106080202

BOLT,M8 x 20mm

M 8X20 Plated

3шт.

15

VV11425039450

PRESSURE SWITCH,DC6V, 12V, 24V, 49 +/- 1 kPa (7.1 +/- 1.4 psi), PT 1/8"

Engine Oil

1шт.

16

VV12416039140

BOLT

Joint M10

1шт.

17

VV11980239450

PIPE ASSY.

Lub.Oil

1шт.

18

VV12900559830

BOLT

Joint, Includes Ref. 19-20

1шт.

19

VV22190080002

SEAL

8S

1шт.

20

VV23857030000

BOLT

3

1шт.

21

VV22190080002

SEAL

8S

1шт.

22

VV22190100002

SEAL

10

2шт.

23

VV26366060002

NUT,M6

M6

1шт.

24

VV11900535151

ENGINE OIL FILTER

Oil (up to S/N NBTN55002), Serial Range: PS02-00101-PS02-00109

1шт.

24

VV12915035160

ENGINE OIL FILTER

80mm D x 80mm L (After S/N NBTN55005), Start Serial: PS02-00112

1шт.
