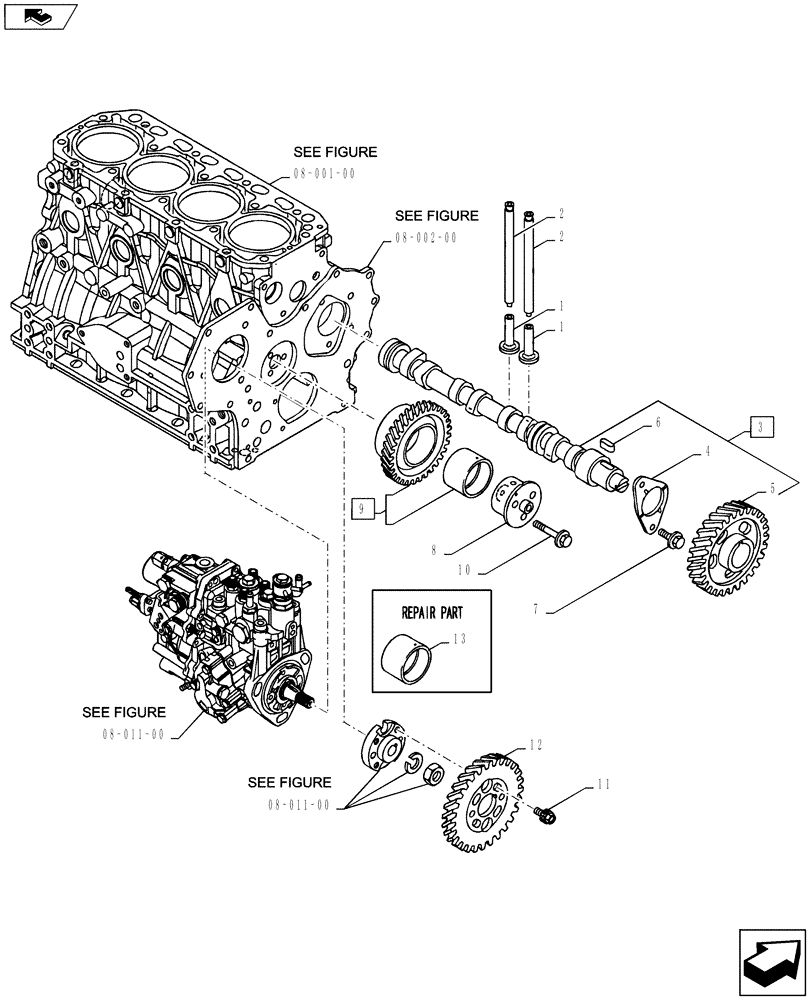

Запчасти Case CX55BMSR (08-007[00]) - CAMSHAFT & DRIVING GEAR (10) - ENGINE

1

VV12915014200

TAPPET

8шт.

2

VV12915014400

PUSH ROD

8шт.

3

VV72940214580

CAMSHAFT

Includes Ref. 4-6

1шт.

4

VV12915002450

METAL LINER

Thrust

1шт.

5

VV12915014101

GEAR SET

Camshaft

1шт.

6

VV22512070140

KEY,M7 x 14mm

7x14

1шт.

7

VV26106080142

BOLT,M8 x 14mm

8x14 Plated

2шт.

8

VV11980325050

SHAFT

Idler

1шт.

9

VV11980225101

GEAR

Idle

1шт.

10

VV26106080402

BOLT,M8 x 40mm

M 8x40 Plated

3шт.

11

VV12915025301

BOLT

Pump

4шт.

12

VV11980225901

GEAR

Pump

1шт.

13

VV11980225071

BUSHING

Idle Gear

1шт.

Repair Part

1шт.
