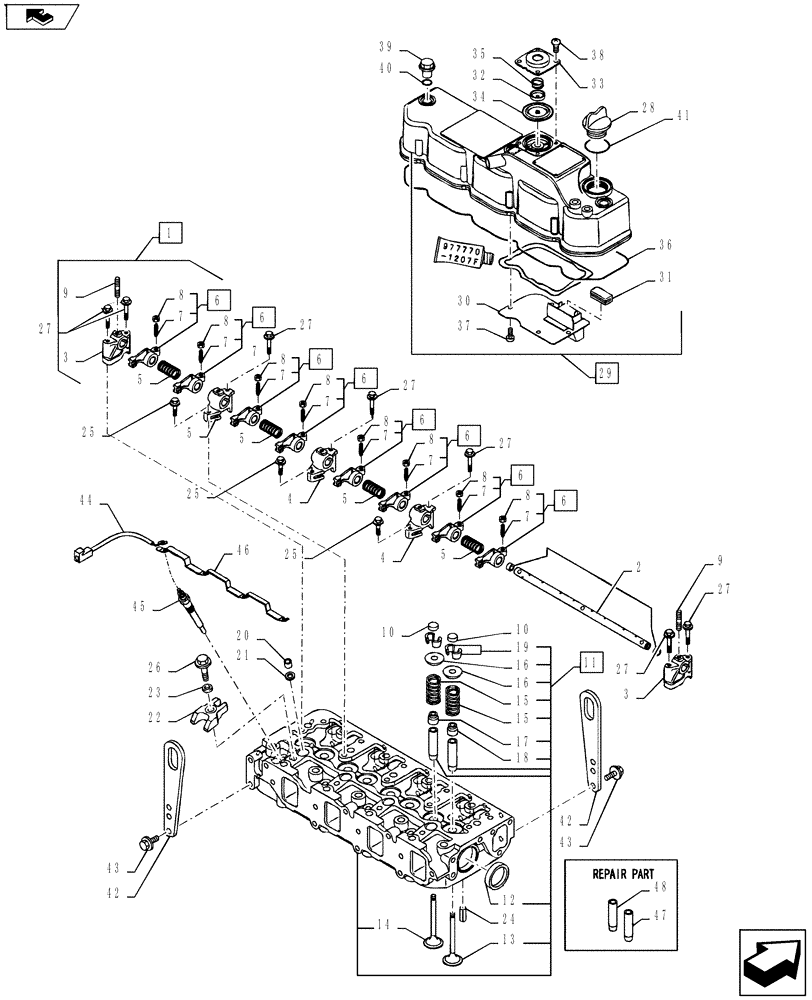

Запчасти Case CX55BMSR (08-004[00]) - CYLINDER HEAD & BONNET (10) - ENGINE

1

VV12960111241

SHAFT ASSY.

Rocker, Includes Ref. 2-9

1шт.

2

VV12960111251

SHAFT

Rocker Arm

1шт.

3

VV11980211260

SUPPORT

Arm A

2шт.

4

VV11980211270

SUPPORT

Arm B

3шт.

5

VV12915011280

SPRING

Shaft

4шт.

6

VV12900411650

ARM ASSY.

Rocker, Includes Ref. 7-8

8шт.

7

VV12915011230

SCREW

Valve Adjust

8шт.

8

VV12915011750

NUT

M8

8шт.

9

VV26226080182

STUD,M8 x 18mm

M 8X18 Plated

3шт.

10

VV12915011370

CAP

Valve

8шт.

11

VV12960411700

CYLINDER HEAD

Cylinder, Includes Ref. 12-19

1шт.

12

VV27241400000

PLUG

40

2шт.

13

VV12900511100

VALVE

Intake

4шт.

14

VV12910011112

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

4шт.

15

VV12979511120

VALVE SPRING

8шт.

16

VV12979511180

SPRING

8шт.

17

VV12140011340

SEAL

Valve Stem

4шт.

18

VV12446011340

SEAL

Valve Stem

4шт.

19

VV27310080001

COTTER PIN

8

8шт.

20

VV11980211870

PROTECTOR

Nozzle

4шт.

21

VV11962511880

SEAL

Nozzle

4шт.

22

VV12900411900

RETAINER

Nozzle

4шт.

23

VV12027054410

WASHER

Injector

4шт.

24

VV22351060012

SPRING,6 x 12mm

Pin 6x12

2шт.

25

VV26106080252

BOLT,M8 x 25mm

M 8x25 Plated

3шт.

26

VV26106080352

BOLT,M8 x 35mm

M 8x35 Plated

4шт.

27

VV26106080502

BOLT,M8 x 50mm

M 8x50 Plated

7шт.

28

VV12416001751

CAP

Filter

1шт.

29

VV12960111350

COVER

Head, Includes Ref. 30-38

1шт.

30

VV12900403010

PLATE ASSY.

Baffle

1шт.

31

VV12915003070

BAFFLE

Breather

1шт.

32

VV11980203110

PLATE

Center

1шт.

33

VV11980203121

COVER

Diaphragm

1шт.

34

VV11980203130

DIAPHRAGM

1шт.

35

VV11980203141

SPRING

Diaphragm

1шт.

36

VV12960111310

GASKET

Bonnet

1шт.

37

VV22857500100

SCREW,M5 x 10mm

M5x10

4шт.

38

VV22857500100

SCREW,M5 x 10mm

M5x10

4шт.

39

VV12416011360

KNOB

3шт.

40

VV24311000120

O-RING

1A P-12.0

3шт.

41

VV24311000320

O-RING

1A P-32.0

1шт.

42

VV12990007900

GRAIN LIFTER

Engine

2шт.

43

VV26106080162

BOLT,M8 x 16mm

M 8x16 Plated

4шт.

44

VV11980377830

WIRE HARNESS

Glow Plug

1шт.

45

VV12900877800

PLUG

Glow

4шт.

46

VV12960477821

HYD CONNECTOR

Glow Plug

1шт.

47

VV12013011860

VALVE GUIDE

4шт.

Repair Part

1шт.

48

VV12915011810

VALVE GUIDE

Exhaust Valve

4шт.

Repair Part

1шт.
