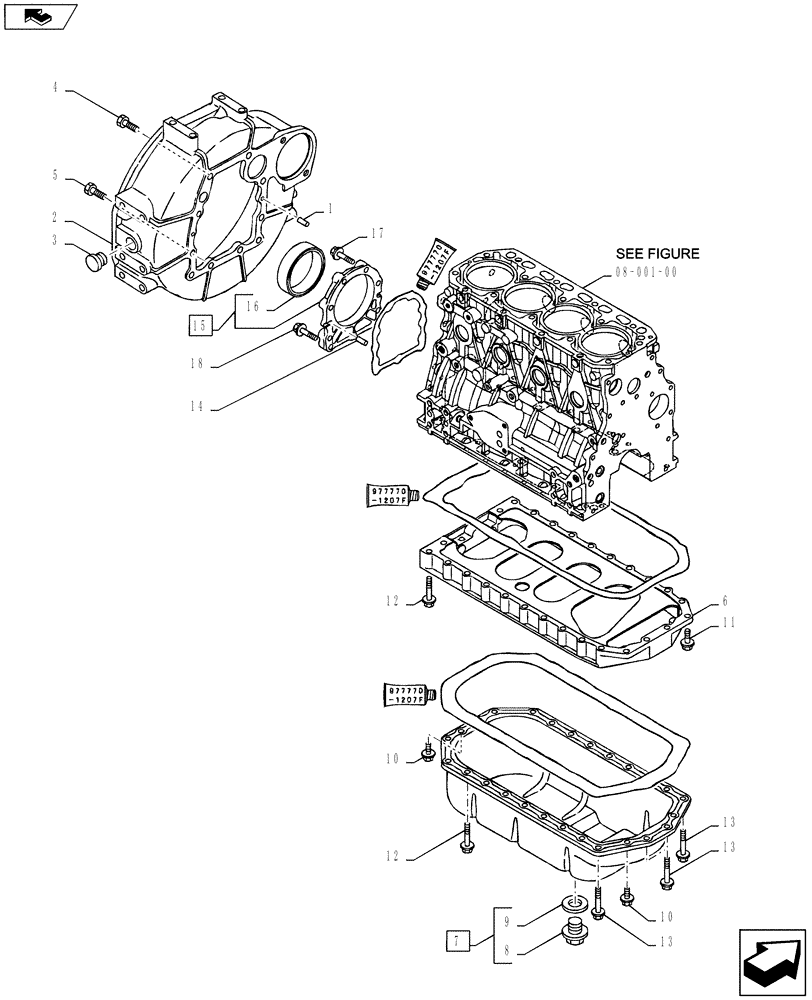

Запчасти Case CX55BMSR (08-003[00]) - FLYWHEEL HOUSING & OIL SUMP (10) - ENGINE

1

VV12910001580

PIN,M8 x 16mm

Parallel

2шт.

2

VV12961201600

HOUSING

Flywheel

1шт.

3

VV11962001750

CAP

Flywheel Cover

1шт.

4

VV26206100252

BOLT,M10 x 25mm

M10X25

6шт.

5

VV26206100302

BOLT,M10 x 30mm

M10X30

4шт.

6

VV12940001730

SPACER

Oil Sump

1шт.

7

VV12943601780

SUMP

Lub. Oil, Includes Ref. 8-9

1шт.

8

VV11964001640

DRAIN PLUG,M22

M22

1шт.

9

VV22190220002

SEAL,21.75mm ID x 30mm OD x 2.5mm Thk

22

1шт.

10

VV26106080162

BOLT,M8 x 16mm

M 8x16 Plated

4шт.

11

VV26106080252

BOLT,M8 x 25mm

M 8x25 Plated

2шт.

12

VV26106080452

BOLT,M8 x 45mm

M 8x45 Plated

20шт.

13

VV26106080502

BOLT,M8 x 50mm

M 8x50 Plated

4шт.

14

VV12910001580

PIN,M8 x 16mm

Parallel

2шт.

15

VV12910001640

BOX

Oil Seal, Includes Ref. 16

1шт.

16

VV12979501780

OIL SEAL

Oil

1шт.

17

VV12948601670

BOLT,M8 x 30mm

M 8x30

6шт.

18

VV26106080352

BOLT,M8 x 35mm

M 8x35 Plated

3шт.
