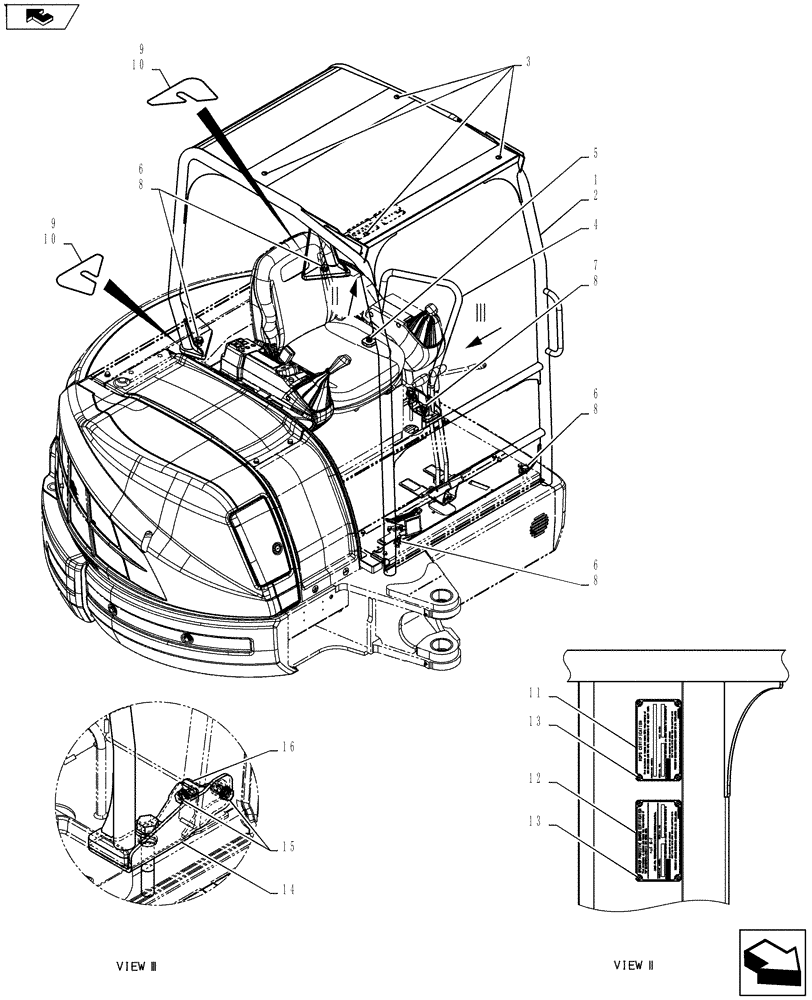

Запчасти Case CX55BMSR (01-072[00]) - CANOPY ASSY (90) - PLATFORM, CAB, BODYWORK AND DECALS

PY06C00009F1

CANOPY

Assembly, Incl 1 - 16, Start Serial: PS02-00101

1шт.

1

NSS

NOT SOLD SEPARAT

Canopy PY06C01250F1, Incl 2 - 3

1шт.

2

PY06C01188P1

SUPPORT

1шт.

3

PY06C01133P1

CAP

4шт.

4

PY41C00003P1

HANDRAIL

1шт.

5

ZM73C10030

BOLT,M10x30mm - Course Thread

Sems

1шт.

6

ZS18C16050

SCREW,Hex, M16 x 50mm

Cap

4шт.

7

ZS18C16100

SCREW,Hex, M16 x 100mm

Cap

1шт.

8

ZW16H16000

WASHER

5шт.

9

PY06C01206P1

SHIM,1.60mm Thk

, Serial Range: PS02-00101-PS02-00147

2шт.

9

PY06C01206P1

SHIM,1.60mm Thk

, Start Serial: PS02-00148

1шт.

10

PY06C01207P1

SHIM,2.30mm Thk

, Serial Range: PS02-00101-PS02-00147

2шт.

10

PY06C01207P1

SHIM,2.30mm Thk

, Start Serial: PS02-00148

1шт.

11

NSS

NOT SOLD SEPARAT

Plate Number

1шт.

12

NSS

NOT SOLD SEPARAT

Plate Number

1шт.

13

PM06C01076P1

RIVET

8шт.

14

PY06C01205P1

BRACKET

1шт.

15

PA03M01093D3

BOLT

Sems

2шт.

16

PY06C01209P1

PLATE

1шт.
