(01-070[04]) - GUARD INSTALL (CAB)

Запчасти Case CX55BMSR (01-070[04]) - GUARD INSTALL (CAB) (90) - PLATFORM, CAB, BODYWORK AND DECALS

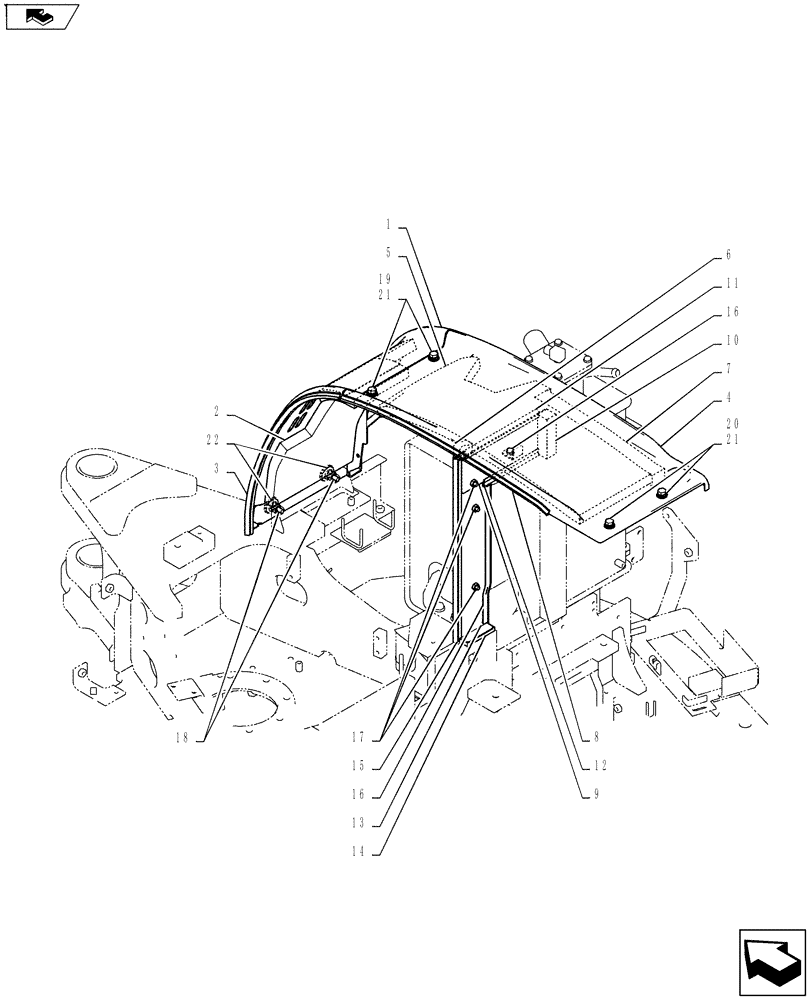

Схема запчастей Case CX55BMSR - (01-070[04]) - GUARD INSTALL (CAB) (90) - PLATFORM, CAB, BODYWORK AND DECALS
home
20
16
22
1
14
7
19
8
21
15
2
9
5
13
3
10
6
17
16
11
18
4
21
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

(Cab) Guard Install PY21C00012F1, Start Serial: PS02-00101

1шт.

1

PY21C01233P1

COVER

1шт.

2

PY21C01262P1

INSULATION

1шт.

3

YJ21C01134D5

WEATHERSTRIP

Weather

1шт.

4

PY21C01196P1

COVER

1шт.

5

PY21C01210P1

INSULATION

1шт.

6

PY21C01220P1

INSULATION

1шт.

7

PY21C01237P1

INSULATION

1шт.

8

YN21C01136DD

WEATHERSTRIP

Weather

1шт.

9

PY21C01215P1

COVER

1шт.

10

PY21C01217P1

INSULATION

1шт.

11

YR21C01168DR

WEATHERSTRIP

Weather

1шт.

12

YJ21C01103D5

WEATHERSTRIP

1шт.

13

PY21C01162P1

COVER

1шт.

14

PY21C01164P1

INSULATION

1шт.

15

YT21C01159DE

WEATHERSTRIP

Weather

1шт.

16

PM22C01013DA

WEATHERSEAL STRIP

1шт.

17

ZM73C08020

BOLT,M8x20mm - Course Thread

Sems

4шт.

18

ZM73C10020

BOLT,M10x20mm - Course Thread

Sems

2шт.

19

PA41C01005D1

BOLT

Sems

2шт.

20

PA41C01005D3

BOLT

Sems

2шт.

21

YT21C01187P2

WASHER

4шт.

22

2420R429D9

GROMMET

2шт.
