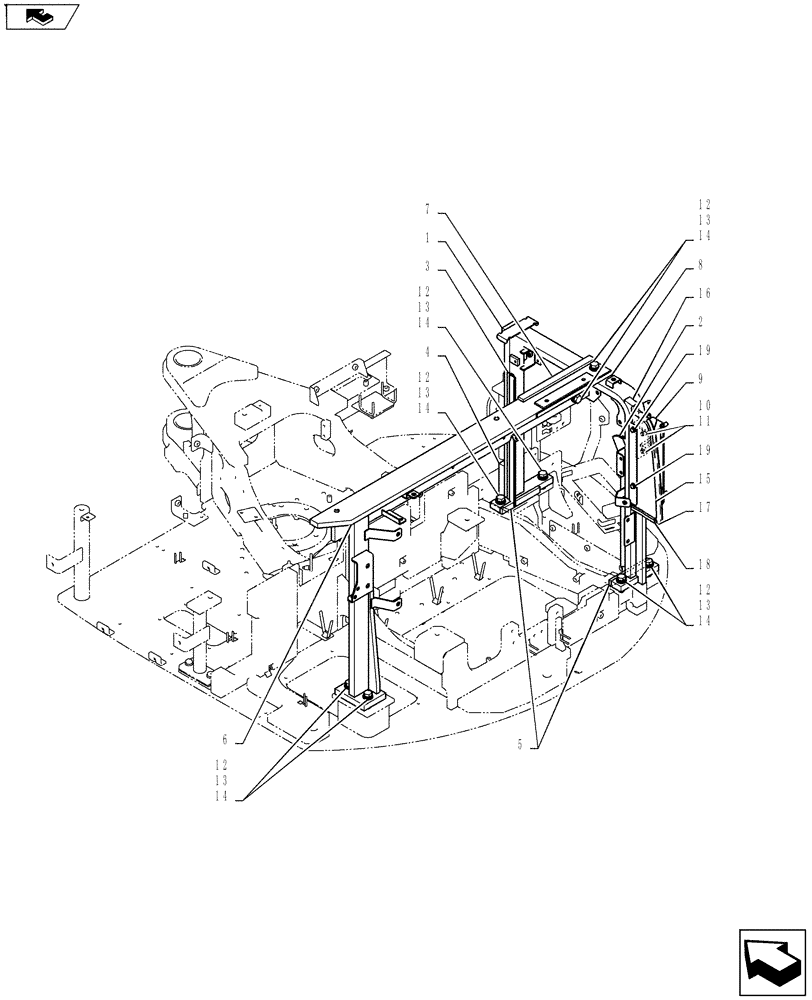

Запчасти Case CX55BMSR (01-070[03]) - GUARD INSTALL (CAB) (90) - PLATFORM, CAB, BODYWORK AND DECALS

.

(Cab) Guard Install PY21C00012F1, Start Serial: PS02-00101

1шт.

1

PY21C01252P1

SUPPORT

1шт.

2

YF22C01046DB

WEATHERSTRIP

Weather

1шт.

3

YF22C01046DC

WEATHERSTRIP

Weather

1шт.

4

PY21C01140P1

INSULATION

1шт.

5

PY21C01185P1

INSULATION

2шт.

6

PY21C01259P1

SUPPORT

, Serial Range: PS02-00101-PS02-00103

1шт.

6

PY21C01350P1

SUPPORT

, Start Serial: PS02-00104

1шт.

7

PY21C01222P1

RUBBER INSULATOR

1шт.

8

PY21C01273P1

RUBBER INSULATOR

1шт.

9

PY21C01102P1

STRIKER

STRIKER

1шт.

10

LF21C01058D1

SHIM

(1.2)

2шт.

11

PM21C01202P1

BOLT

Sems

2шт.

12

ZS18C16050

SCREW,Hex, M16 x 50mm

Cap

8шт.

13

ZW16H16000

WASHER

8шт.

14

ZW26X16000

LOCK WASHER

8шт.

15

PY21C01309P1

COVER

, Serial Range: PS02-00101-PS02-00103

1шт.

15

PY21C01309P2

COVER

, Start Serial: PS02-00104

1шт.

16

PY21C01311P1

INSULATION

1шт.

17

PY21C01312P1

WEATHERSTRIP

Weather, Serial Range: PS02-00101-PS02-00102

1шт.

17

PY21C01312P2

WEATHERSTRIP

Weather, Start Serial: PS02-00103

1шт.

18

YR21C01168DG

WEATHERSTRIP

1шт.

19

ZM73C08016

BOLT,M8x16mm - Course Thread

Sems

2шт.
