(01-069[03]) - GUARD INSTALL (CANOPY)

Запчасти Case CX55BMSR (01-069[03]) - GUARD INSTALL (CANOPY) (90) - PLATFORM, CAB, BODYWORK AND DECALS

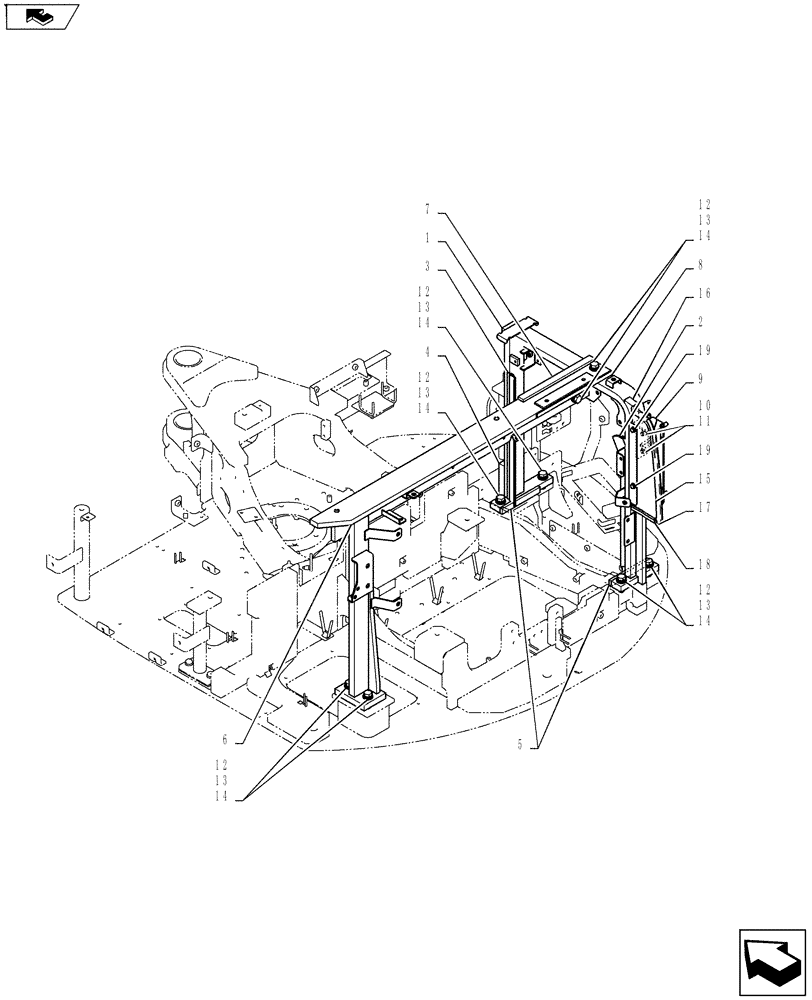

Схема запчастей Case CX55BMSR - (01-069[03]) - GUARD INSTALL (CANOPY) (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
15
14
12
13
12
13
16
10
home
14
14
11
1
8
4
12
13
14
13
12
5
14
19
12
13
7
19
9
18
3
17
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

(Canopy) Guard Install PY21C00010F1, Start Serial: PS02-00101

1шт.

1

PY21C01252P1

SUPPORT

1шт.

2

YF22C01046DB

WEATHERSTRIP

Weather

1шт.

3

YF22C01046DC

WEATHERSTRIP

Weather

1шт.

4

PY21C01140P1

INSULATION

1шт.

5

PY21C01185P1

INSULATION

2шт.

6

PY21C01350P1

SUPPORT

1шт.

7

PY21C01222P1

RUBBER INSULATOR

1шт.

8

PY21C01273P1

RUBBER INSULATOR

1шт.

9

PY21C01102P1

STRIKER

STRIKER

1шт.

10

LF21C01058D1

SHIM

(1.2)

2шт.

11

PM21C01202P1

BOLT

Sems

2шт.

12

ZS18C16050

SCREW,Hex, M16 x 50mm

Cap

8шт.

13

ZW16H16000

WASHER

8шт.

14

ZW26X16000

LOCK WASHER

8шт.

15

PY21C01309P2

COVER

1шт.

16

PY21C01311P1

INSULATION

1шт.

17

PY21C01312P2

WEATHERSTRIP

Weather

1шт.

18

YR21C01168DG

WEATHERSTRIP

1шт.

19

ZM73C08016

BOLT,M8x16mm - Course Thread

Sems

2шт.
