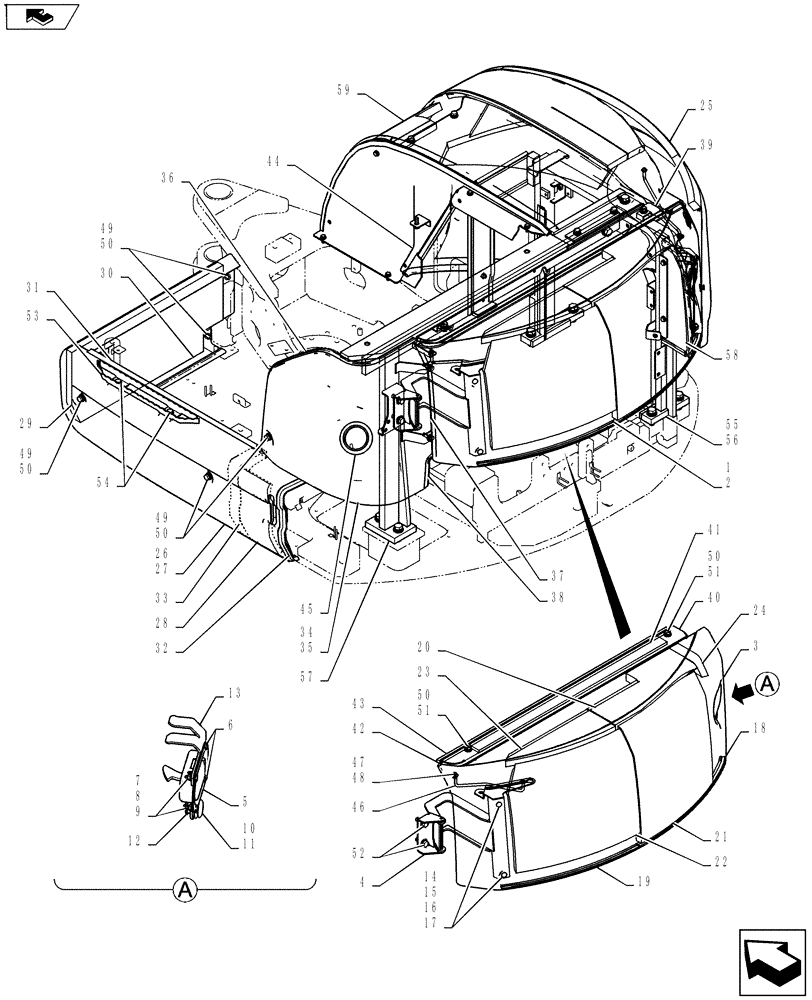

Запчасти Case CX55BMSR (01-069[01]) - GUARD INSTALL (CANOPY) (90) - PLATFORM, CAB, BODYWORK AND DECALS

.

(Canopy) Guard Install PY21C00010F1, Start Serial: PS02-00101

1шт.

1

NSS

NOT SOLD SEPARAT

Guard Install PY21C00013F1

1шт.

2

PY22C00007F1

HOOD

Assembly, Incl 3 - 23

1шт.

3

PH22C01136P1

COWLING

Bonnet

1шт.

4

PY22C01066P1

HINGE

1шт.

5

PW22C01067P1

LOCK

1шт.

6

PH22C01023P1

BOLT

4шт.

7

ZN18C05004

NUT

4шт.

8

ZW26X05000

LOCK WASHER

Lock

4шт.

9

ZW16H05000

WASHER

4шт.

10

PM21C01268F1

LOCK

Incl 11 - 12

1шт.

11

YR22C01025P2

LOCK

1шт.

12

PM21C01269P1

PLATE

1шт.

13

PW22C01160P3

BRACKET

1шт.

14

PW21C01413P1

CAPSCREW

2шт.

15

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

2шт.

16

ZW26X08000

LOCK WASHER

Lock

2шт.

17

ZN18C08007

NUT

2шт.

18

PH21C01160D3

WEATHERSTRIP

1шт.

19

PM22C01013D4

WEATHERSEAL STRIP

1шт.

20

PY22C01076P1

INSULATION

1шт.

21

PY22C01078P1

INSULATION

1шт.

22

PH22C01183P1

FOAM INSULATION

1шт.

23

PH22C01185P1

FOAM INSULATION

1шт.

24

PY22C01077P1

INSULATION

1шт.

25

PY21C00011F1

COVER ASSY

Side (Not Painted)

1шт.

26

PY21C01152F1

COVER ASSY

Cover Assembly, Incl 27 - 33

1шт.

27

PY21C01148P1

COVER

L/H

1шт.

28

PY21C01260P1

INSULATION

1шт.

29

PY21C01153P1

INSULATION

1шт.

30

YJ02C01010D5

WEATHERSTRIP

Weather

1шт.

31

YJ02C01010D6

WEATHERSTRIP

Weather

1шт.

32

PM21C01136DF

WEATHERSTRIP

1шт.

33

PY21C01261P1

INSULATION

1шт.

34

PY21C01155F1

COVER ASSY

Cover Assembly, Incl 35 - 38

1шт.

35

PY21C01156P1

COVER

L/H

1шт.

36

YZ21C01121DC

WEATHERSTRIP

Weather

1шт.

37

YR21C01165DC

WEATHERSTRIP

Weather

1шт.

38

PM22C01013DN

WEATHERSTRIP

1шт.

39

PY21C01099F1

COVER ASSY

Cover Assembly, Incl 40 - 43

1шт.

40

PY21C01270P1

COVER

1шт.

41

PY21C01271P1

INSULATION

1шт.

42

PM21C01573D2

WEATHERSTRIP

Weather

1шт.

43

PY21C01272P1

RUBBER INSULATOR

1шт.

44

NSS

NOT SOLD SEPARAT

Cover Assembly PY21C01294F1, Incl 44-1 - 44-4

1шт.

44-1

PY21C01295P1

COVER

See fig 01-069(02)

1шт.

44-1

PM21C01233P1

RUBBER

1шт.

44-3

2427P1836D32

WEATHERSTRIP

1шт.

44-4

PW21C01629P1

FOAM INSULATION

1шт.

45

PY21C01205P1

GROMMET

1шт.

46

PH22C01194P1

STAY

1шт.

47

ZW16P08000

WASHER

1шт.

48

2419R9D2

COTTER PIN

2шт.

49

PA41C01005D3

BOLT

Sems

10шт.

50

YT21C01187P2

WASHER

9шт.

51

PA41C01005D1

BOLT

Sems

2шт.

52

YN02C01299P1

BOLT

Sems

2шт.

53

PY21C01302P1

PLATE

1шт.

54

ZM73C10025

BOLT,M10x25mm - Course Thread

Sems

2шт.

55

NSS

NOT SOLD SEPARAT

Guard Install PY21C00014F1

1шт.

56

PY21C01252P1

SUPPORT

1шт.

57

PY21C01350P1

SUPPORT

1шт.

58

PY21C01309P2

COVER

1шт.

59

PY21C01187F1

COVER ASSY

1шт.
