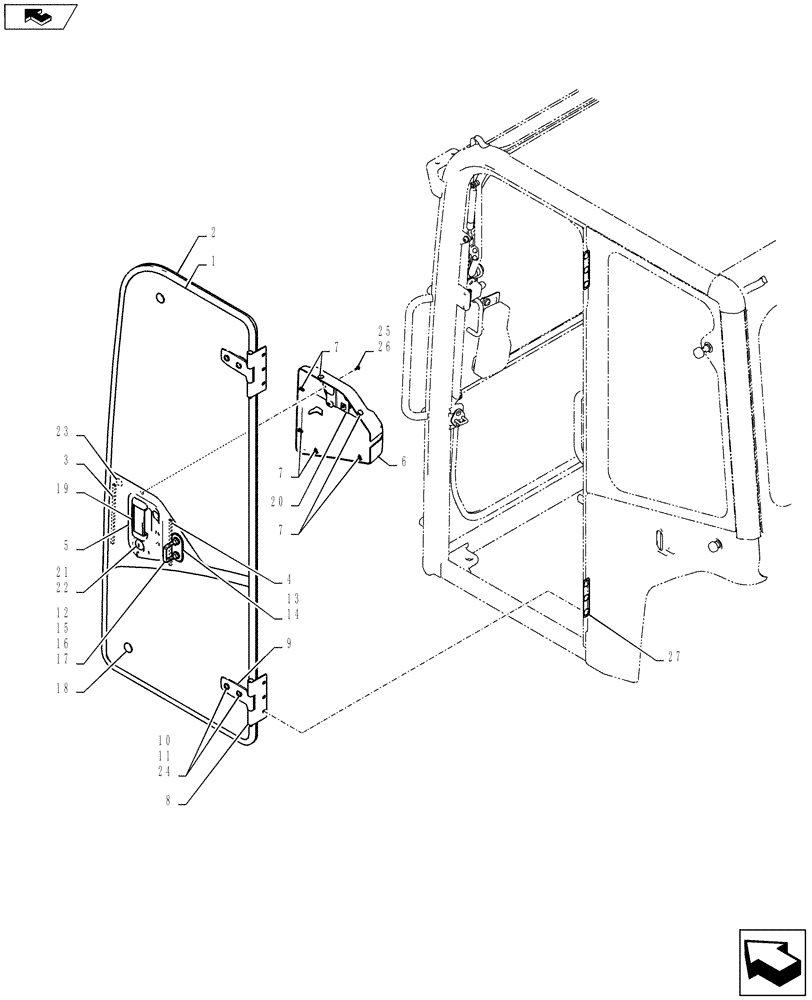

Запчасти Case CX55BMSR (01-062[02]) - CAB INSTALL (90) - PLATFORM, CAB, BODYWORK AND DECALS

.

Cab Install PY02C00018F1, Start Serial: PS02-00101

1шт.

1

PY51C01001P1

GLASS

1шт.

2

PY02C01159D2

SEAL

1шт.

3

PM02C01172D8

SEAL,7mm W x 4.8mm H x 200mm L

1шт.

4

PM02C01172D9

SEAL,7mm W x 4.8mm H x 150mm L

1шт.

5

PY51C01005P1

COVER

1шт.

6

PY51C01006P1

COVER

, Serial Range: PS02-00101-PS02-01093

1шт.

6

PY51C01006P2

COVER

, Start Serial: PS02-01094

1шт.

7

PY51C01022P1

CLIP

6шт.

8

PY51C01068P1

HINGE

2шт.

9

PY51C01023P1

PACKING

2шт.

10

PY51C01024P1

BUSHING

4шт.

11

PY51C01060D1

WASHER

4шт.

12

PY51C01026P1

STOP

Striker

1шт.

13

PY51C01027P1

PLATE

1шт.

14

PY51C01028P1

PACKING

1шт.

15

PY51C01029P1

BUSHING

2шт.

16

PY51C01061D1

NUT

4шт.

17

PY51C01062D1

WASHER

4шт.

18

YT50C01020P1

RETAINER

2шт.

19

PY51C01031P1

HANDLE

1шт.

20

PY51C01032P1

HANDLE

1шт.

21

YN51C01099P2

LOCK

Assy.

1шт.

22

PY51C01033P1

CLIP

1шт.

23

PY51C01063D1

CAP

1шт.

24

PY02C01193D3

SCREW

4шт.

25

PY02C01196D1

SCREW

Tapping

1шт.

26

PY02C01202D1

WASHER

1шт.

27

PY02C01187P1

DECAL

2шт.
