(01-059[00]) - PLATE GROUP, FLOOR (CANOPY)

Запчасти Case CX55BMSR (01-059[00]) - PLATE GROUP, FLOOR (CANOPY) (90) - PLATFORM, CAB, BODYWORK AND DECALS

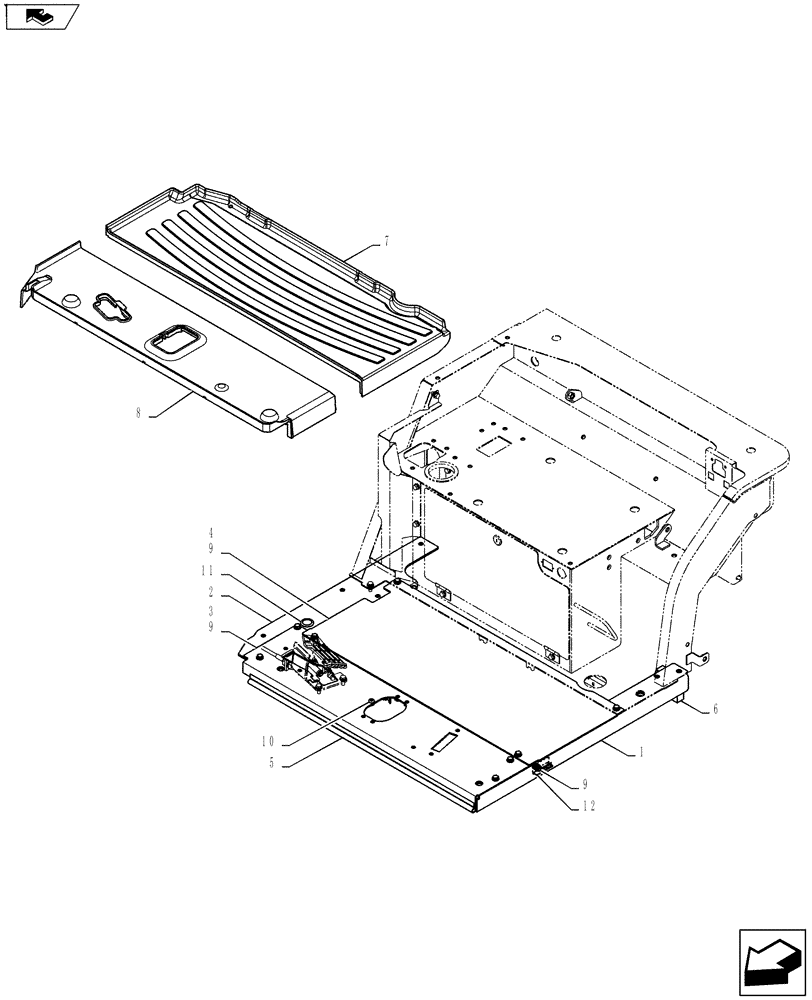

Схема запчастей Case CX55BMSR - (01-059[00]) - PLATE GROUP, FLOOR (CANOPY) (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
9
home
9
12
3
2
10
7
11
9
4
5
6
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PY03M00028F1

Floor (Canopy), Start Serial: PS02-00101

1шт.

1

PY03M01332P1

PLATE

Floor

1шт.

2

PY03M01336P1

PLATE

Floor

1шт.

3

PY03M01309P1

PLATE

Floor

1шт.

4

PY03M01310P1

COVER

1шт.

5

YT21C01164DJ

RUBBER WEATHERSTRIP

1шт.

6

PW60C01024P1

FOAM INSULATION

1шт.

7

PY26M00016P1

FLOOR MAT

Floor

1шт.

8

PY26M00021P1

FLOOR MAT

Floor

1шт.

9

ZM73C08020

BOLT,M8x20mm - Course Thread

Sems

9шт.

10

YN03M01159P1

GROMMET

1шт.

11

PX03M01058P1

GROMMET

1шт.

12

PY03M01317P1

PLATE

1шт.
