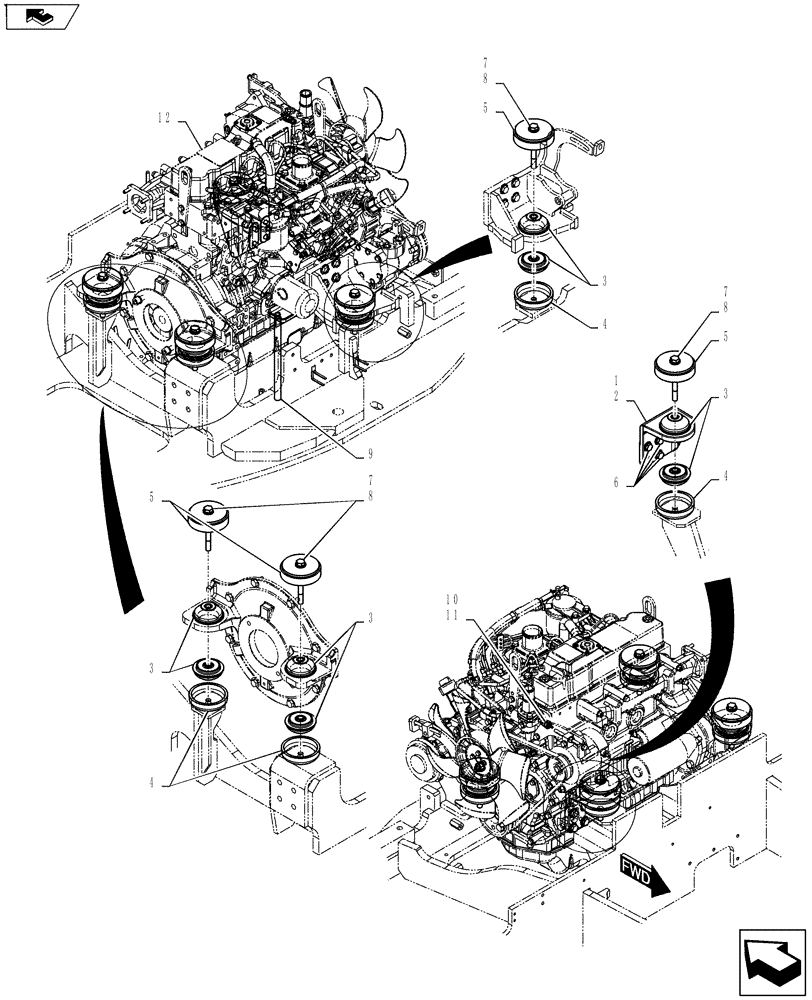

Запчасти Case CX55BMSR (01-063[02]) - ENGINE INSTALL (10) - ENGINE

.

Engine Install PY02P00029F5, Serial Range: PS02-00104-PS02-01458

1шт.

1

NSS

NOT SOLD SEPARAT

Engine Install PY02P00037F1

1шт.

2

PH02P01043P1

BRACKET

1шт.

3

PH02P01048D1

RUBBER MOUNTING

8шт.

4

PH02P01060P1

COVER

4шт.

5

PY02P01048P1

COVER

, Serial Range: PS02-00101-PS02-01109

4шт.

5

PY02P01104P1

COVER

, Start Serial: PS02-01110

4шт.

6

ZM73C10025

BOLT,M10x25mm - Course Thread

Sems

4шт.

7

ZS18C12120

SCREW,Hex, M12 x 120mm

Cap

4шт.

8

ZW16H12000

WASHER

4шт.

9

PW02P01047D1

HOSE,12mm ID x 250mm L

1шт.

10

PA24S00003P1

SENSOR,50-120 Degree C

(Used for Engine Temp Gauge)

1шт.

11

PA13E01027P1

PACKING

1шт.

12

PY02P00040F1

ENGINE

, Serial Range: PS02-00104-PS02-01458

1шт.
