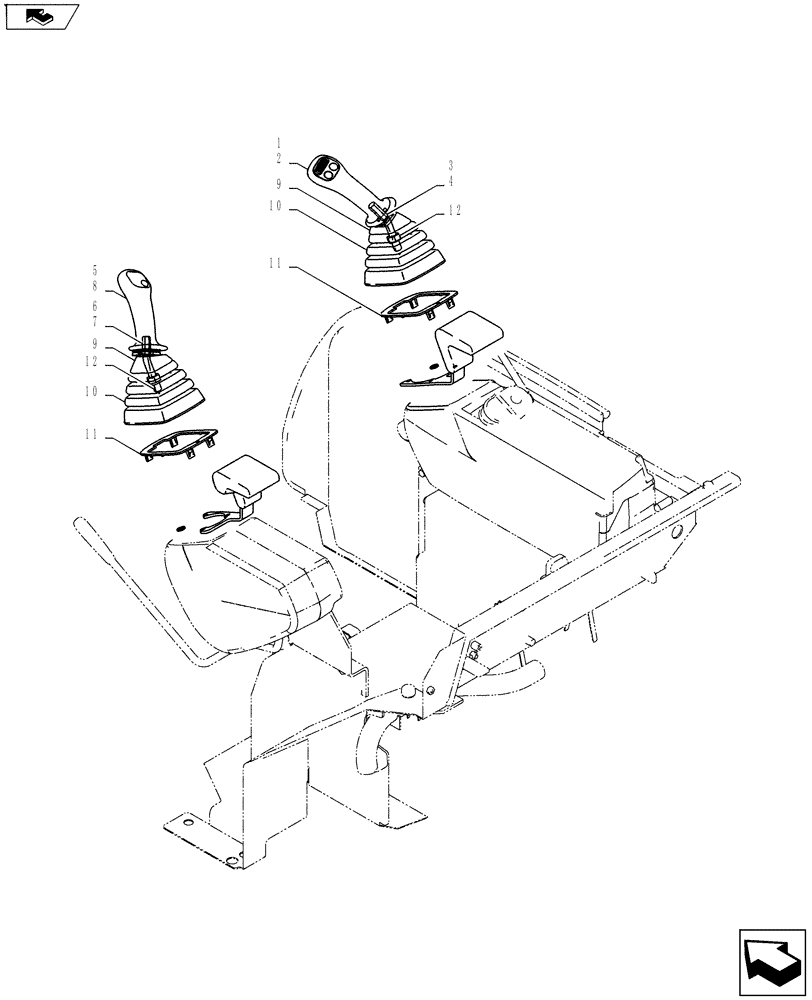

Запчасти Case CX55BMSR (01-053[02]) - GRIP ASSY (NIBBLER & BREAKER) (90) - PLATFORM, CAB, BODYWORK AND DECALS

PW03M01954F1

GRIP

Assy., Start Serial: PS02-00101

1шт.

1

PW03M01955F1

GRIP

Assembly, Rotary and Nibbler & Breaker (RH - With 1 Button and Proportional)

1шт.

2

PW03M01958F1

HANDLE

Assy.

1шт.

3

PW03M01945P1

LEVER

1шт.

4

ZP26D05028

PIN,5mm OD x 28mm L, Slotted

Spring

1шт.

5

PW03M01955F3

GRIP

Assembly, Nibbler & Breaker (LH - With 1 Button)

1шт.

6

PW03M01945P1

LEVER

1шт.

7

ZP26D05028

PIN,5mm OD x 28mm L, Slotted

Spring

1шт.

8

PW03M01960F1

HANDLE

(With 1 Switch)

1шт.

9

LF03M01004P1

BOOT

2шт.

10

LF03M01008P1

BELLOWS

Boot

2шт.

11

YT03M01051P2

PLATE

2шт.

12

ZN18C14011

NUT

2шт.
