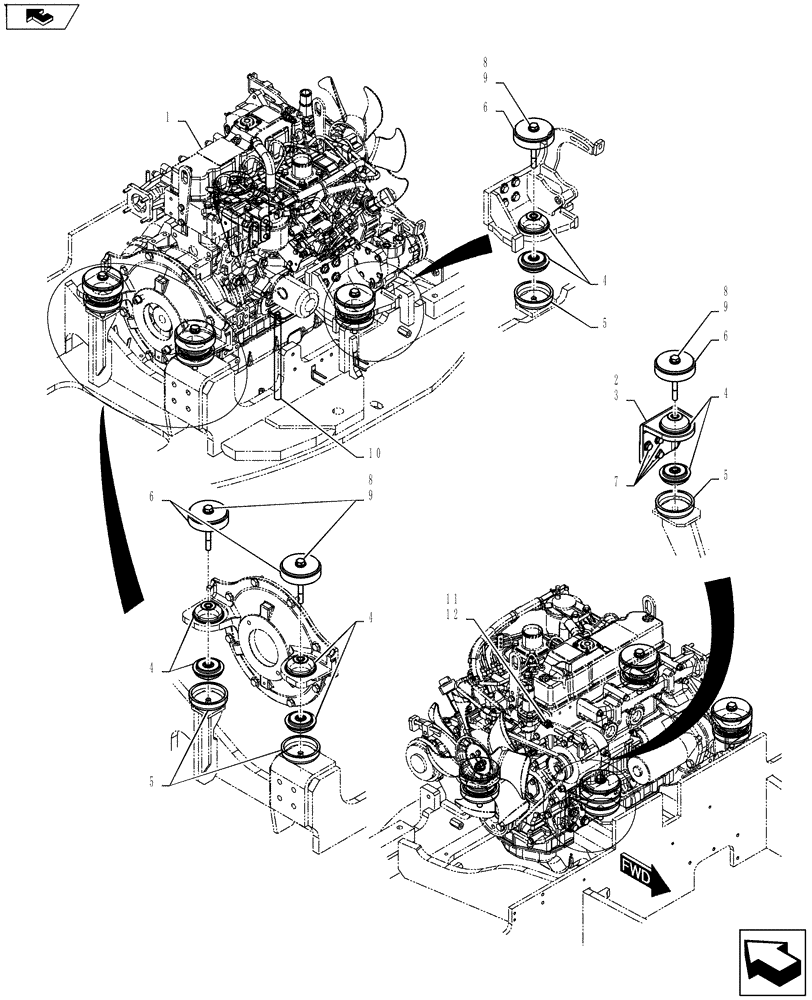

Запчасти Case CX55BMSR (01-063[01]) - ENGINE INSTALL (COOLER) (10) - ENGINE

.

Engine Install (Cooler) PY02P00029F1, Serial Range: PS02-00101-PS02-00109

1шт.

1

PY02P00027F1

ENGINE

, Serial Range: PS02-00101-PS02-00109

1шт.

2

NSS

NOT SOLD SEPARAT

Engine Install PY02P00037F1

1шт.

3

PH02P01043P1

BRACKET

1шт.

4

PH02P01048D1

RUBBER MOUNTING

8шт.

5

PH02P01060P1

COVER

4шт.

6

PY02P01048P1

COVER

4шт.

7

ZM73C10025

BOLT,M10x25mm - Course Thread

Sems

4шт.

8

ZS18C12120

SCREW,Hex, M12 x 120mm

Cap

4шт.

9

ZW16H12000

WASHER

4шт.

10

PW02P01047D1

HOSE,12mm ID x 250mm L

1шт.

11

PA24S00003P1

SENSOR,50-120 Degree C

(Used for Engine Temp Gauge)

1шт.

12

PA13E01027P1

PACKING

1шт.
