(01-050[03]) - CONTROLS, OPERATORS (CANOPY)

Запчасти Case CX55BMSR (01-050[03]) - CONTROLS, OPERATORS (CANOPY) (90) - PLATFORM, CAB, BODYWORK AND DECALS

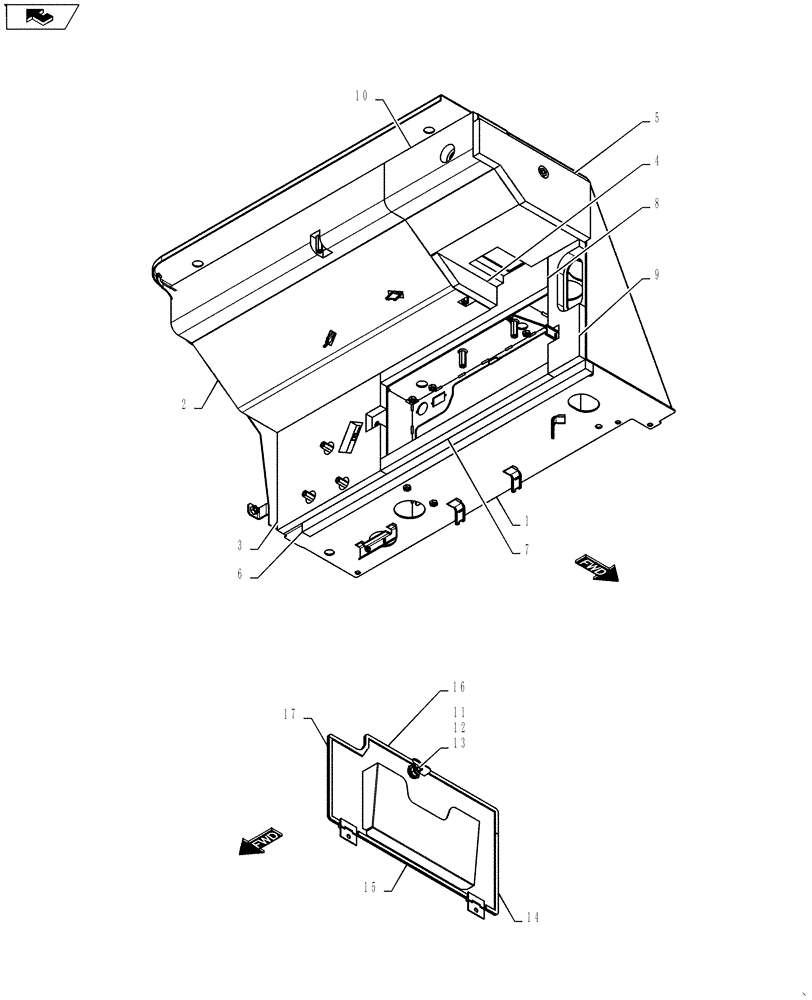

Схема запчастей Case CX55BMSR - (01-050[03]) - CONTROLS, OPERATORS (CANOPY) (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
6
8
15
9
5
16
7
14
13
11
1
2
10
17
12
home
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

Operators Controls (Canopy) PY03M00023F1, Start Serial: PS02-00101

1шт.

1

PY10M01130P1

Stand, Serial Range: PS02-00101-PS02-00110

1шт.

1

PY10M01146P1

Stand, Serial Range: PS02-00111-PS02-00147

1шт.

1

PY10M01155P1

Stand, Start Serial: PS02-00148

1шт.

2

PY10M01124P1

INSULATION

1шт.

3

PY10M01123P1

INSULATION

1шт.

4

PY10M01028P1

INSULATION

1шт.

5

PY10M01078P1

INSULATION

1шт.

6

PY10M01119P1

INSULATION

1шт.

7

PY10M01120P1

INSULATION

1шт.

8

PY10M01035P1

INSULATION

1шт.

9

PY10M01075P1

INSULATION

1шт.

10

PY10M01077P1

INSULATION

1шт.

11

PH06C01072P2

LOCK

1шт.

12

YR22C01025P2

LOCK

1шт.

13

PH06C01071P1

COVER

1шт.

14

PY10M01092P1

INSULATION

1шт.

15

PY10M01026P1

INSULATION

1шт.

16

PY10M01093P1

INSULATION

1шт.

17

PY10M01094P1

INSULATION

1шт.
